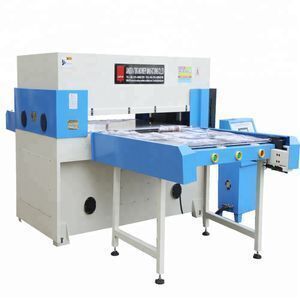

plastic tray cutting press machine

Product details
Port:Shanghai;No-Load Rotational Speed:according the products;
Place of Origin:China;Payment Terms:L/C,T/T,Western Union;
Dimensions:1250*810 mm;Max cutting force:40-200 T;
Power:7.5KW;Supply Ability:10 Set/Sets per Month;
Max. Cutting Depth:according the products;Hydraulic oil:46# 48# 68#;
Power(W):7.5 kw;Cutting table area:1600*810mm/1250*810mm/Customised;
Voltage:3 ph 380v 220v 415v,220v/380v/440v;After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support,Video technical support,Engineers available to service machinery overseas;
Rated Power:7.5 kw;Saw Blade Diameter:according the products;
Condition:New;Application:all non-metal soft materials;
Packaging Detail:wooden case or as customer's request;Certification:CE;
Brand Name:JSATON;Warranty:1 YEAR,12 Months Guarantee;
Color:Customised;Applicable Industries:Manufacturing Plant;
Type:Hydraulic Cutting Machine;
Product Description

 USE AND CHARACTER



1.The machine is applicable for whole-broken or semi-broken operation of  various nonmetal slices materials by die cutter for example. such industries as plastics packing, pearl cotton packaging ,rubber  etc.

2.Microcomputer controlled, with simple ,prompt and accurate operation.

3.The main machine adopts double oil cylinder, double-crank connecting rod balancing, four-column precise guiding mechanism, which can  guarantee that the cutting depth at every cutting position is same.

4.The pressing board carries out slow cutting when it presses downward to contact the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.

5.The central oil supply automatic lubricating system guarantees the service life and precision of machine

6.Single-side or double-side automatic feeding system can be allocated to enhance the production  deficiency  of machine.

7.Cutting board micro-movement device can be allocated to evenly consume the cutting board and save cost.

8.Die cutter pneumatic clamp device can be allocated to make the replacement of die cutter convenient  and prompt, Optional:
a. Single-side and double-side automatic feeding systems,
b. Cutting board micro-inching device;
c. Die cutter pneumatic clamp device.



TECHNICAL SPECIFICATION





model number

JSAT1-A400

JSAT1-A500

JSAT1-A600

JSAT1-A800

JSAT1-A1000

JSAT1-A1500

JSAT1-A2000

Max cutting force

400KN

500KN

600KN

800KN

1000KN

1500KN

2000KN

Open daylight

50-200mm

50-200mm

50-200mm

50-200mm

50-200mm

50-200mm

50-200mm

cutting area

1600*610mm 1250*610mm

1600*810mm 1250*810mm

1600*810mm 1250*810mm

1600*810mm 1250*810mm

1600*810mm 1250*810mm

1600*910mm 1250*910mm

1600*1100mm 1250*1100mm

Main motor power

3kw

4kw

5.5kw

7.5kw

7.5kw

11kw

15kw

Our Services

1.die cutting machine pressure:25tons-300tons,Cut material by dies/ molds.
2.Hydraulic,automatic,material precision 0.01mm,no burned.
3.Two Cylinders,Four Column,Plane cutting press machine
4.Die cutting disposable blister,leather,foam,EVA,sponge,plastic sheet ect.
5.Can make big cutting area as required.



TRADING INFORMATION

Trade term:FOB,CIF,EXW
Payment terms:T/T, L/C at sight, trade assurance in alibaba.
Payment Condition:30% deposit in advance. 70% balance before delivery.
Delivery time:5-15days working days after deposit.
Packing:Wooden case with plate.
Shipment:By Sea.



Company Information

Jiangsu Atong Machinery Manufacturing Co., Ltd is located in Dagang Town, Yancheng City, Jiangsu Province --- the Hometown of Chinese Shoe Machinery known as a national intensive area of spark plan technology. The company is a scale enterprise specialized in producing series precision machinery and general machinery products such as hydraulic die cutting machines, strip cutting machine , hydraulic hole punching machine, laminating machine and etc.

Pls feel free to contact us, when you are interested in our factory machine.
