15kg/24hour commercial Freeze dryer Lyophilizer machine labconco freeze dryer

Product details
Application:Freeze dryer vegetables, fruits, foods,medicine, lab liquid;Certification:CE ISO;
Cooling:Air, draughty, ambient temperature≤25°C;After-sales Service Provided:Engineers available to service machinery overseas;
Packaging Detail:wooden packing of commercial Freeze dryer Lyophilizer machine labconco freeze dryer;Supply Ability:1000 Set/Sets per Month Freeze dryer Lyophilizer machine labconco;
Name:commercial Freeze dryer Lyophilizer machine labconco freeze dryer;Dimension(L*W*H):1380*1200*2000;
Shelf layers:4+1 layers 70mm spacing;Brand Name:BIOLAND;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PAYPAL;Vacuum degree:≤10 Pa;
Voltage:220V ,50 Hz;;Bulk capacity:15L;
Place of Origin:Shaanxi China;Warranty:1 Year;
Weight:550kg;Condenser temperature:-70~70 ℃;
Type:Freeze Drying Equipment;Power(W):6500W;
Condition:New;Freeze drying area:1㎡fruit drying machine;
Port:shanghai port;Condenser capacity:15 kg /24h;
Product Description

Food Processing 15kg/24hour commercial Freeze dryer Lyophilizer machine labconco freeze dryer

commercial Freeze dryer Lyophilizer machine labconco freeze dryer,Technically known as lyophilisation, lyophilization, or cryodesiccation is a dehydration process typically used to preserve a perishable material or make the material more convenient for transport. Freeze-drying works by freezing the material and then reducing the surrounding pressure to allow the frozen water in the material to sublime directly from the solid phase to the gas phase, skipping the liquid phase entirely. If you do not skip the liquid phase, you are not freeze drying, you are actually vacuum drying. This results in product degradation and loss of vital chemicals or nutrients.

Product Name
commercial Freeze dryer Lyophilizer machine labconco freeze dryer
Freeze drying area
1㎡ freeze dryer
Condenser capacity
15L /24h
Condenser
-70~70 ℃
Vacuum degree
< 10 Pa
Material tray
4+1 layers; 70mm spacing .Bulk capacity OF 15L
Capture water trap

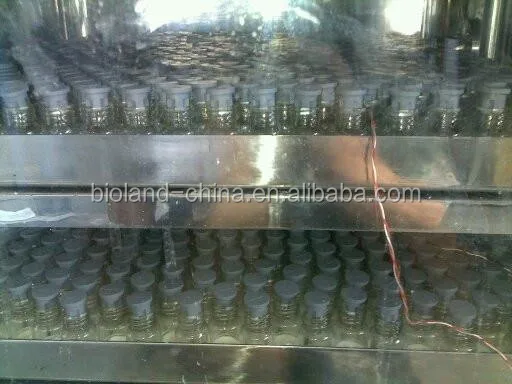

φ22 vials -2016pcs ,φ16 vials -3960pcs ,φ12 vials -7200pcs ,
Voltage
220V/110V;60Hz/50Hz

Features of Food Processing Freeze dryer machine/Lyophilizer/Freeze drying machine


1.Pre-freeze drying process at in situ situation, reduce the complicate operation from drying process, become automatically;
2.Shelf temperature differences ± 1 ℃, dry effect uniform;
3.Intermediate medium circulation technique, shelf can refrigeration, heating, temperature adjustable, controllable, pilot scale test and production process;
4.Due to drying chamber and cold trap for fission structure, special gas circuit designed, capture water ability is strong and drying time to be short;
5.Embedded touch screen, PLC controlled and PID temperature controlled display lyophilized curve and history curve;
6.Control system can be stored 40 freeze-dry process programs, each program can have 40 temperature settings, and can choose the manual operation and automatic operation, the Top-Press type is equipped with an automatic defrost function;
7.Optional eutectic point test device;
8.U disk data available;
9.Equipped with PC software can print curve, browsing curve, modify data;
10.Square tray is shape not easily to deformed, easy to operate and clean;
11.Can be configured charging valve, rechargeable dry inert gas.
12.Drying chamber adopts high light colorless transparent organic glass door, in operation process can be observed clearly the change of material process;
13.Refrigeration system using overlap refrigeration technology, low refrigeration temperature, large refrigerating capacity, and adopt imported closed compressor, high efficient and reliable, low noise.

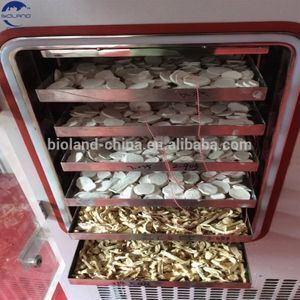

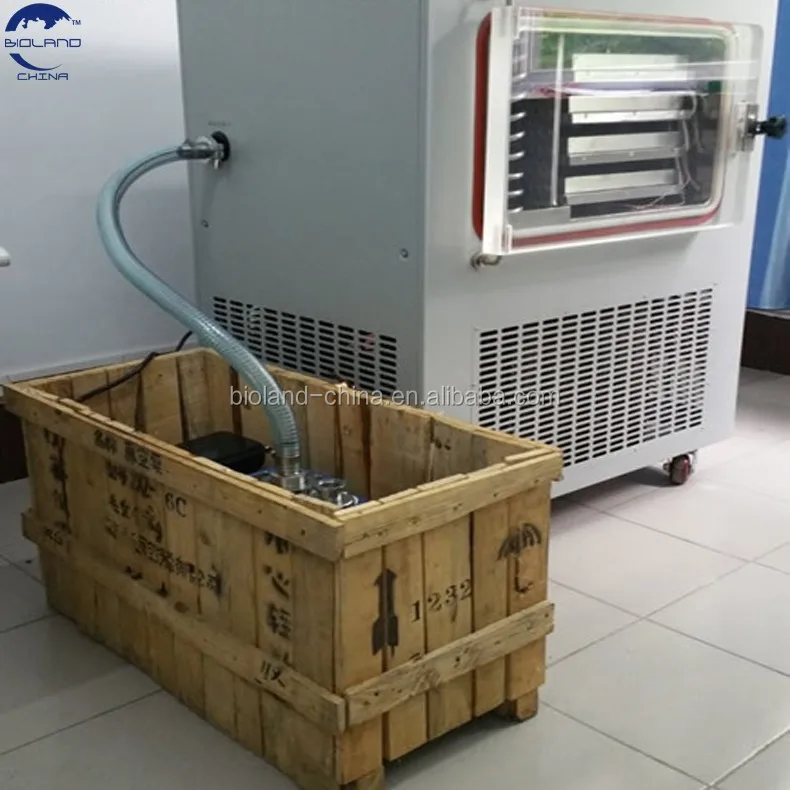

Products Show

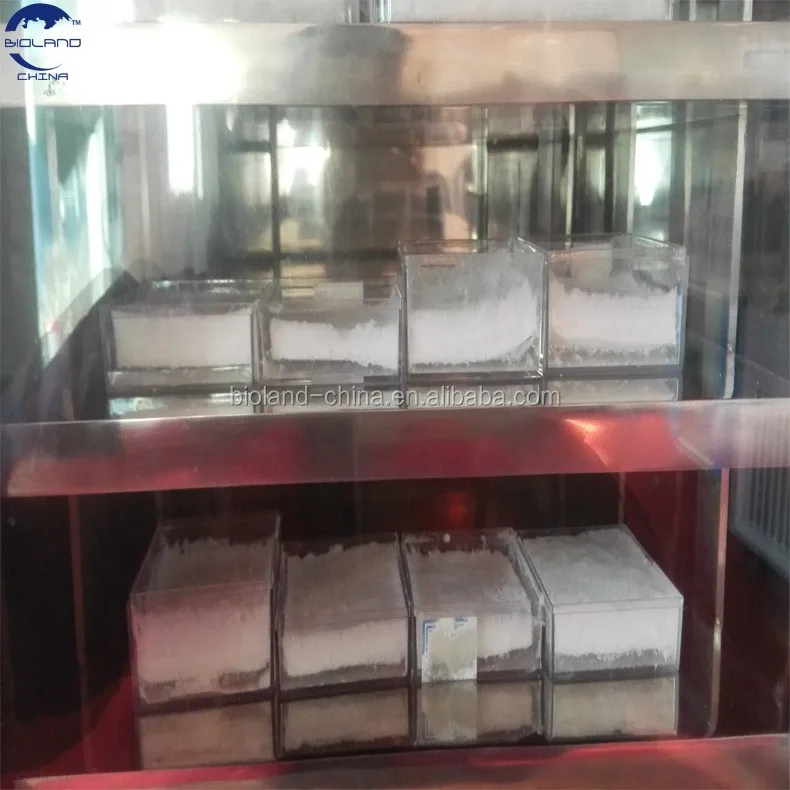

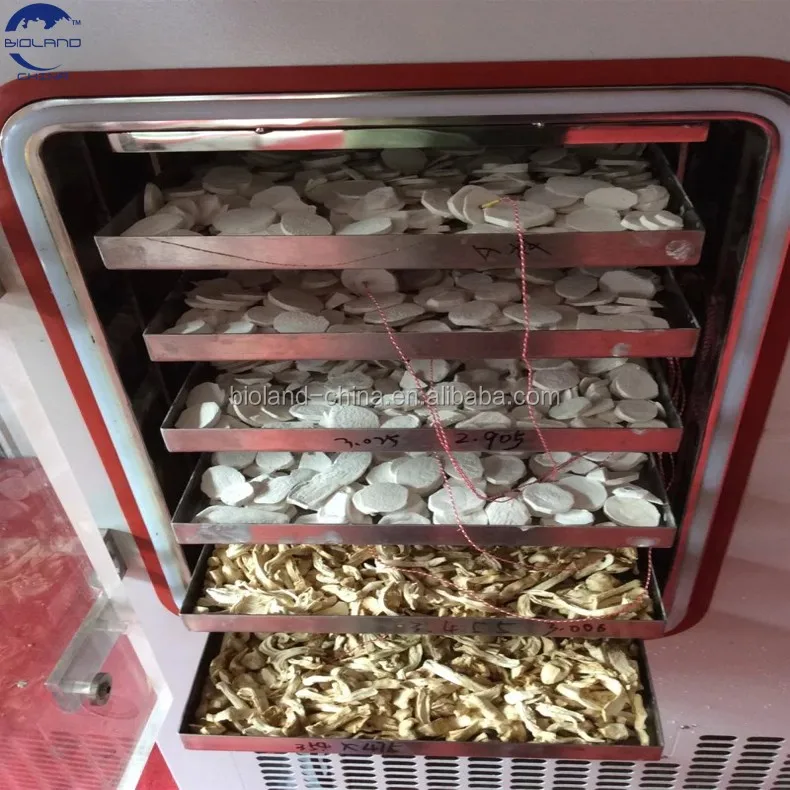

dryer sample
Related Products

  freeze dried fruit vegetables strawberries

  laboratory drying ovens Vacuum Oven

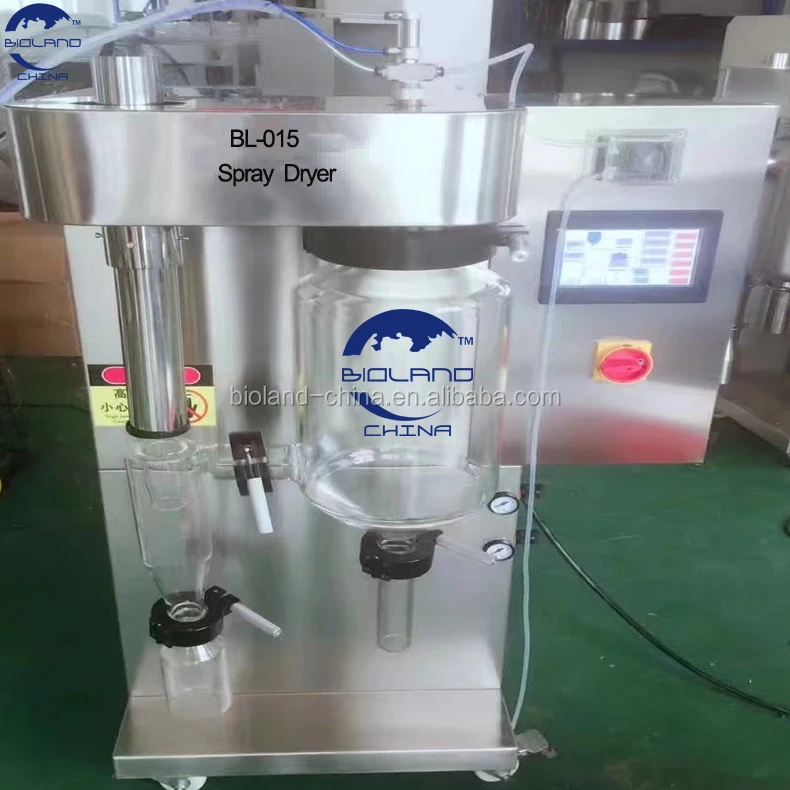

      spray dried mink coffee powder

Laboratory Laminar Air Flow Cabinet clean bench

Industrial Large stainless steel Vacuum Drying Oven

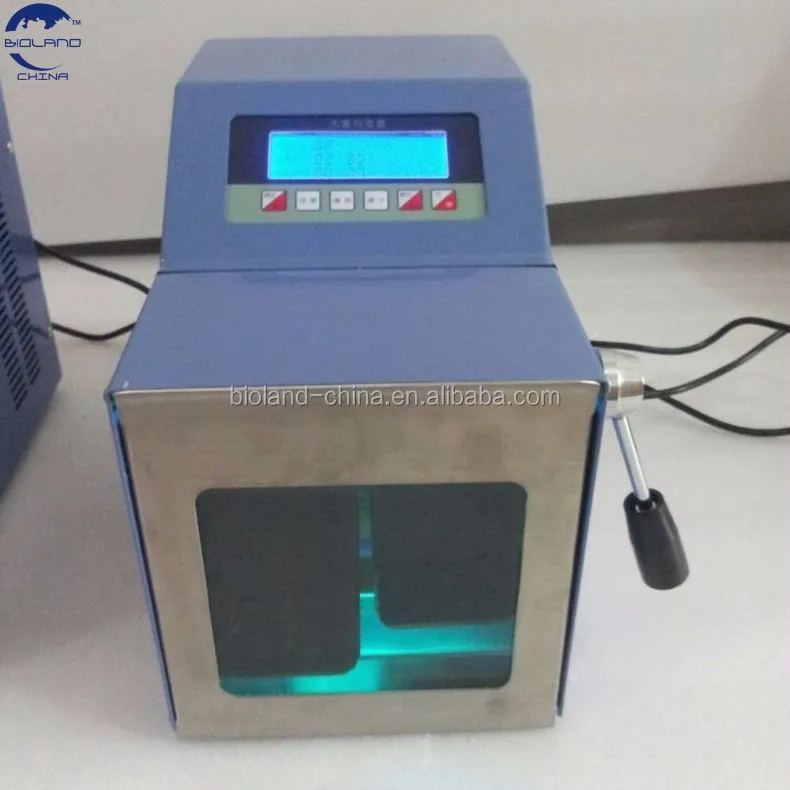

Lab flapping type Sterile Homogenizer mixing
