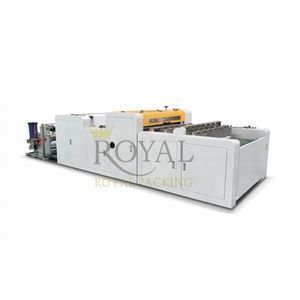

RYQJ A3 A4 Paper Making Machine paper cutting machine

Supplier: Hangzhou Royall Import & Export Co., Ltd.
Region: Zhejiang, China
Contact: Ms Shelly Cao
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Speed:	10-140times/min;	Length of cutting:	20-400mm;
Weight:	about 4ton;	Supply Ability:	10 Set/Sets per Quarter paper making machine is avaliable;

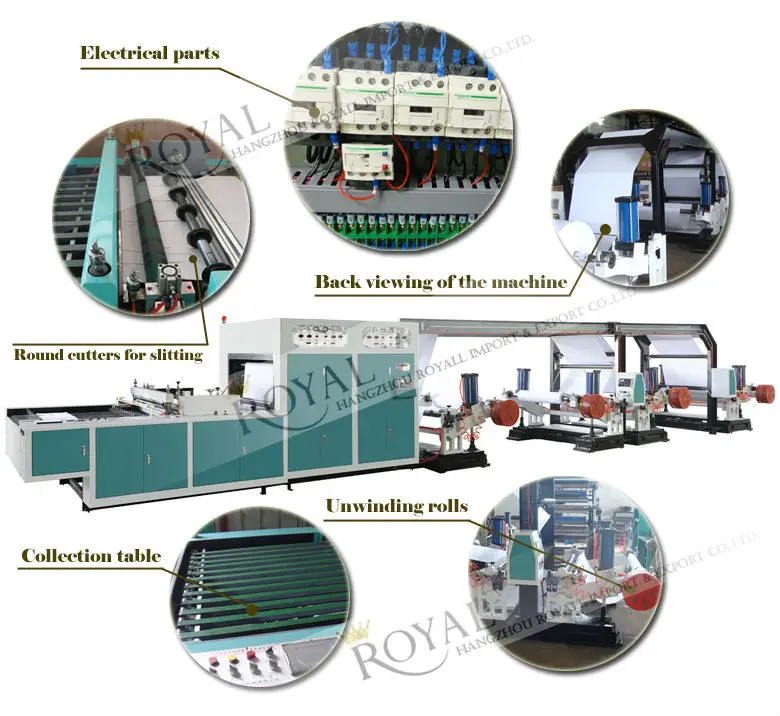

After-sales Service Provided:	Engineers available to service machinery overseas;	function 3:	With round cutter for slitting;
Condition:	New;	paper making machine width:	1000mm;
Warranty:	1 Year;	Precision:	±0.2mm;
Applicable Industries:	Garment Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Retail,Printing Shops;	Brand Name:	ROYAL PACKING;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;	Dimension(LWH):	860015002000mm;
Port:	Ningbo, Shanghai;	function 2:	With paper stacker;
Certification:	ce;	Voltage:	380V50HZ;
Max diameter of material:	1400mm;	function 1:	can be 1 roll,2roll,4 rolls loading;
Computerized:	Yes;	Place of Origin:	Zhejiang China (Mainland);
Packaging Detail:	A4 paper making machine will be packed into:1.Hard wooden pallet 2. Hard wooden case 3.Steel pallet;	Type:	Paper Cutting Machine;
Payment Terms:	L/C,D/P,T/T,Western Union;	Min.width of cutting:	50mm;

Product Description

(Key worr cutting machine, Paperboard sheeter, Paperboard Cutter, Duplex board Sheeter, Duplex board cutter, Paper

RYQJ-D A4 Paper Making Machine

roll paper cutting machine

Sheeter, Paper Cutter a4 paper cutting machine)

Performance and Characteristics:

This A4 paper cutting machine (A4 paper machine/A3/A2 )is suitable for cutting big rolling packaging materials such as paper, paper-plastic, multicolor laminated material, etc.

This machine is specialist for horizontal and vertical cutting paper rolling materials to A4 ,A3, A2 size etc .it can be with 1 roll, or 2rolls, or 4 rolls etc.

1. Adopts pneumatic automatic materials loading system with much easy operation and convenience

2. Adopts down-up recurrent cutting with orderly finished products and without water caltrop;meantime,it can be used for horizontal cutting and vertical cutting at one time

3. It adopts servo motor for controlling constant-length cutting.

4. It adopts PLC control, contact screen operation

5. It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it has the function of easy operation, high precision, good stability, low noise.

6. This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste

7. It has the functions of high-precision of cutting, high speed,etc . pneumatic structure combined with computer control be adopted for transmission section ,making it become much more steady operation

8. It has the function of automatic stacking which is in order . Photoelectric auto tracing subtense system

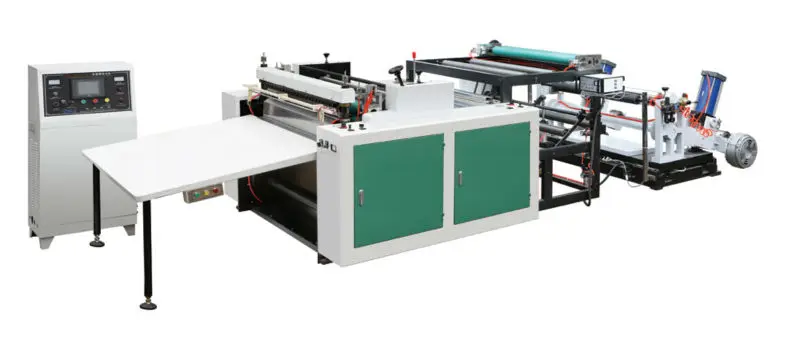

The machine with one roll with manual stacker:

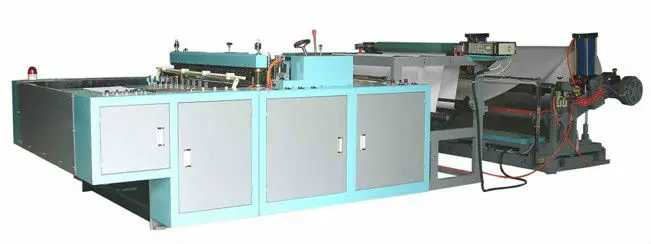

The machine with one roll with belt auto stacker:

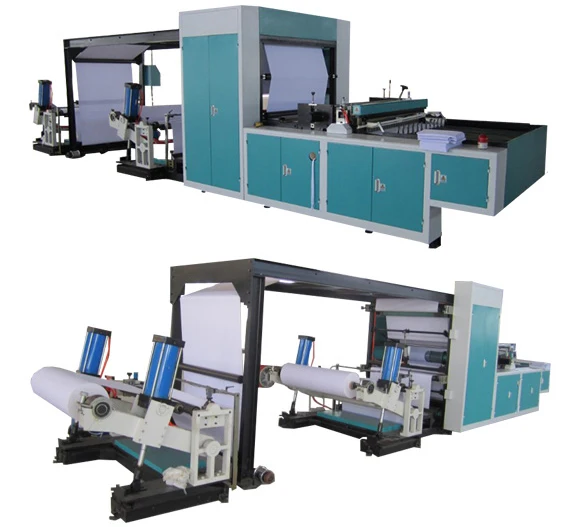

The machine with two rolls:

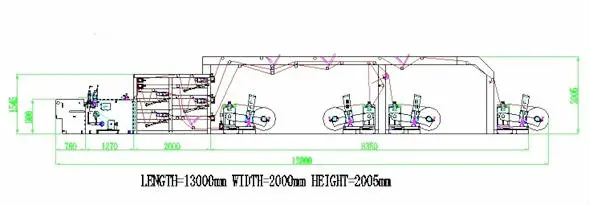

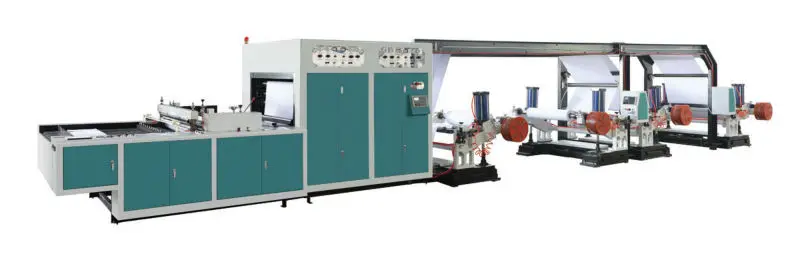

The machine with four rolls:

Main Technological Parameters:

Model	RYQJ-1100D(2 or 4 roll)	RYQJ-1400D(2 or 4roll)
Max.width of cutting	1000mm	1300mm
Max diameter of material	Φ1400mm	Φ1400mm
Min.width of cutting	50mm	50mm
Length of cutting	20-400mm	20-400mm
Speed	10-140times/min	10-140times/min
Precision	±0.2mm	±0.2mm
Total Power	9.5kw	11kw
Weight	3500kg	4000kg
Overall dimension(LXWXH)	8600x1500x2000mm	8600x1800x2000mm
