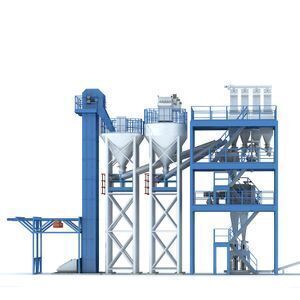

Low investment money earning production line ceramic tile adhesive manufacturing plant for sale

Product details
After-sales Service Provided:Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Engineers available to service machinery overseas;Place of Origin:Fujian China;
Showroom Location:Philippines,Saudi Arabia,Indonesia,Russia,UAE,Malaysia,Australia;Material:Machine-made Sand;
Raw material:Additives;Condition:New;
Production circle:3-6minutes;Packaging Detail:tile adhesive dry mortar plant applied to long distance sea shippment; container type;
Batching and weighting:Automatic Feeding;Certification:CE, OHSAS18001, CQM, ISO9001;
Warranty:2 years;Packaging hoppe:3 m3;
Name:tile adhesive dry mortar plant;Local Service Location:Philippines,Saudi Arabia,Indonesia,Russia,Malaysia,Australia,UAE,Bangladesh;
Number of circles/hour:15-20(depending on applied formula);Application:Dry Mortar Production Line;
Supply Ability:1 Set/Sets per Week;Payment Terms:L/C,T/T;
Capacity:10-120t/h;Dimension(L*W*H):Working Site;
Voltage:380V;Brand Name:NFLG;
Applicable Industries:Manufacturing Plant,Construction works ,Energy & Mining;Power(W):15-220kw;
After Warranty Service:Video technical support,Online support;Port:Xiamen or Shanghai ,China;
Features:Automatic;Key Selling Points:Energy saving;
Finished product silo:150m3*1(divided to two compartments);Weight:10-15T;

Dry Mortar Machines

Low investment money earning production line floor ceramic tile adhesive dry mixing mortar cement manufacturing plant

ModelFBC600FBC1200FBC2000FBC3000note
capacity(t/h)5-1010-2020-4040-60
main machineFJD600FJD1200FJD2000FJD3000
power(kW)15303755
high speed endtwo-pole (7.5kW),four-pole(5.5kW)(optional)two-pole (7.5kW),four-pole(5.5kW)(optional)two-pole (7.5kW),four-pole(5.5kW)(optional)two-pole (7.5kW),four-pole(5.5kW)(optional)
volume fraction of mixer70%70%70%70%
aggregate size (mm)0~1.180~1.180~1.180~1.18
aggregate scale(kg)(100~800)±1%(200~1300)±1%(200~2200)±1%(400~3800)±1%adjustable according to client's requirement
cement scale(kg)(100~800)±1%(200~1300)±1%(200~2200)±1%(400~3800)±1%adjustable according to client's requirement
additive scale(kg)(100~800)±1%(200~1300)±1%(200~2200)±1%(400~3800)±1%adjustable according to client's requirement

Dehumidification system



Double return roller, Intelligent detection, Easy maintenanc

The finished product temperature out of double return drying roller ≤65°C,and it‘s moisture content <0.5%,so that excessive temperature to make the additive ineffective can be effectively avoided.And comparing with triple return roller, which difficult to repair and easy to be scrapped, double return drying roller has unique

intelligent detection system, easy to operate control interface etc.

Dust removal system



Integrated and intelligent dust removal

Container type integrated dust removal mode mainly uses gravity precipitation and dust-proof bag these two main approaches, which can keep dust emission less than 20mg/Nm3.And this system is intelligent impulse type. Cleaner production can avoid the dust leaking from the roller and dust sticking to the dust-proof bag effectively.

Screening system



Stable and efficient,Easy maintenance

The screening efficiency of probability griddle can achieve 95% or more. Then the grading control of sand can be improved significantly. So the product formula can be made more accurate. Beyond that, the screen system can keep itself cleaning, you don’t need to maintain it specifically.

Metering system



Accurate, Stable, Reliable

The unique variable frequency feeding technique makes the measurement results more accurate(±1%-±2%),even can be superior to industry standard. Our metering system has higher quality and lower cost.

Ordinary mortar agitator



New methods, Efficient mixing, Low energy consumption

The new upgrade spiral vane blending method can be applied to unconventional product formula. It can mix different kinds of aggregate, such as fragile components,light aggregate and large size aggregate perfectly. Intelligent automatic lubrication system is very reliable on quality and easy to be maintained.

Special mortar agitator



High efficiency and energy saving, Good abrasion resistance, High mixing ratio

Special mortar agitator adopts the design of plowshare agitation, and also has domestic exclusive proprietary technology of frequency conversion stirring. It has high abrasion resistance, long service life, high efficiency and energy saving(saving energy up to 25%) ,and the product’s mixing ratio can achieve 1:10000.

Environmental protection type bulk dust removal system



Effective dust removal, Clean and efficient

Exclusive discharging way of finished product has already achieved isolating dust. Its superior dust removal effect can let you realize cleaner production.

Sand making system



Intelligent, Environmental, Convenient, Efficient

The dry sand making technology’s friendly to environment and intelligent. The artificial sand’s shape is right round as the natural one; the fineness modulus and content of stone powder in it can all be regulated by control system. Ordinary mortar produced by this system doesn’t need to be screened secondly. It can also produce

some kinds of special mortar.

Intelligent control system



Safe, Reliable, Never stop, Cloud data safe

Dual computer synchronous production management control system make the production line can be unattended. A trouble warning technology patent is applied to this system. Beyond that, it has achieved remote monitoring, cloud data collection and diagnosis, intelligent fault diagnosis, product quality online inspection and report classification query.

For you to customize



According to different conditions, Depending on your needs, Custom-made for you

Our all kinds of equipment are equipped with integrated environmental protection system.Our special mortar production line can be custom-made.Every design is born for your needs.





Q: How is the quality of your products?

A: our machines are manufactured strictly according to national and intemational standards, and we take a test oneach equipment before delivery You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.

Q: How about the price?

A: We are factory and be able to give you the lowest price than market one, and we have a policy that for saving timeand absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.

Q: Do you provide after-sale service?

A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q: Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q: Can you test our samples?

A: Yes. You can send your samples to us for test and analysis

Q: Service and Payment Terms?

A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery We take pictures of finished products before delivery.
