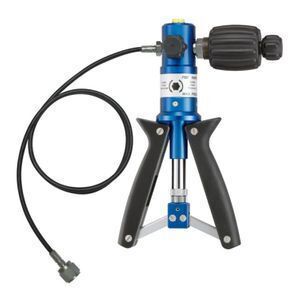

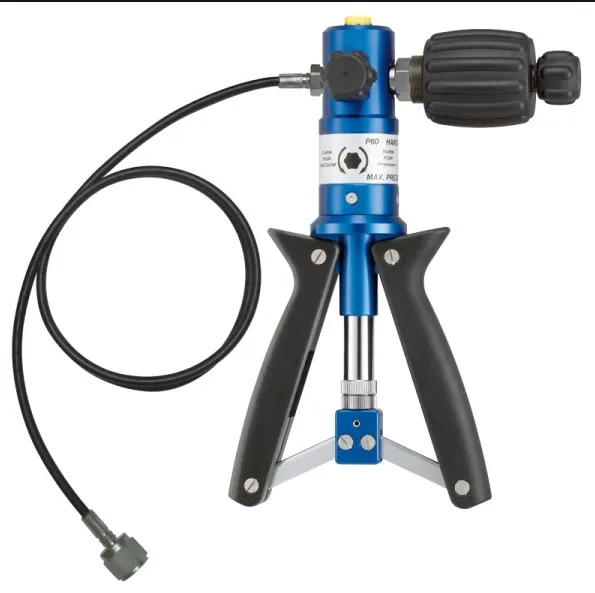

High Quality SIKA P60 Hand Pump Pressure Calibrator 60 Bar Pump

Product details
Packaging Detail:Standard package worth transportation;Model Number:P60;
Package Preview:https://sc01.alicdn.com/kf/HTB12f2qXvWG3KVjSZFgq6zTspXan.jpg_640x640.jpg;Dimensions:240 x 170 x 50 mm;
Supply Ability:100 Piece/Pieces per Month Pressure Calibrator 60 Bar;Port:Shanghai or other main port in China;
Weight:1.1 kg;Payment Terms:T/T,Western Union,Trade Assurance;
Place of Origin:Germany;Pressure medium:Air;
Product Name:Pneumatic hand test pump;Positive pressure:60 bar;
Brand Name:SIKA;Adapter kit:Chrome-plated brass;
Negative pressure:-0.95 bar;State:In stock;

High Quality SIKA P60 Hand Pump Pressure Calibrator 60 Bar Pump

Product Description

 Possible areas of application

SIKA test pumps and pressure generators can be used everywhere, including on site in workshops, test and measurement rooms as well as laboratories. They cover a broad spectrum of industries with diverse applications.

  • Assembly and commissioning
  • Manufacturing and production
  • Maintenance and service
  • Quality assurance and test equipment monitoring
  • Repair

Description



Practical
The test pumps and pressure generators are designed to enable the direct connection of all pressure systems to be tested using adapters. The test sample is easily connected using the rugged industrial hose with integrated quick coupling and supplied adapters. The reference is fitted directly at the top of the pump using a positioning adapter.



The required test pressure is initially generated using the handles and then adjusted precisely with the fine adjustment valve. As a result, the pressure on both instruments is the same. The pressure relief valve allows continuous pressure reduction and ensures accurate and easy testing, even with decreasing pressure.

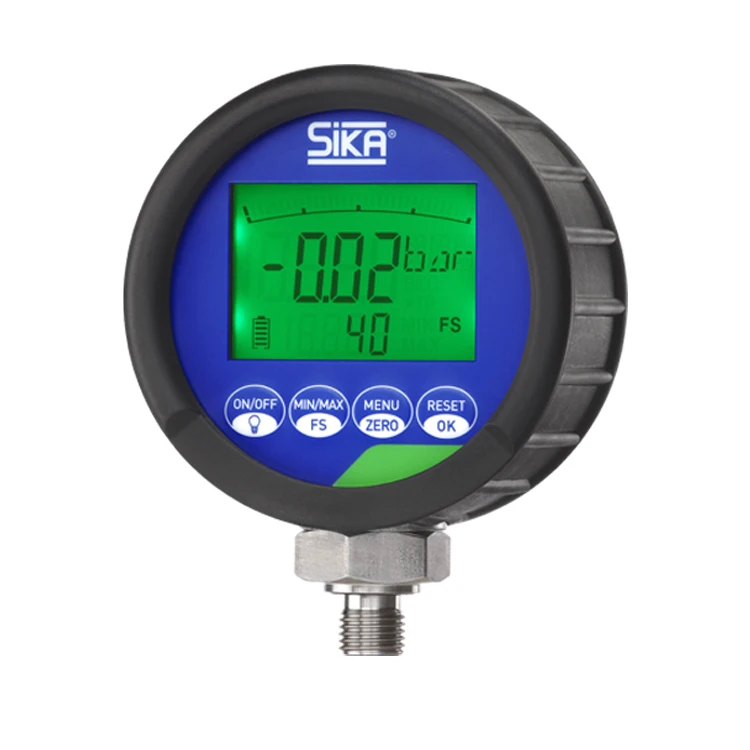

In the simplest case, the pressure is indicated by an analogue pressure gauge. An easy to read digital pressure gauge or hand-held instrument can also be used. The accuracy or adjustment of the pressure measuring device being tested can be checked by comparing the indicated reference value with the measured value for the device under test.

Mobile and independent
SIKA test pumps and pressure generators are ideal for mobile use. Their low weight and compact design make them easy to transport directly to the measurement site. The instruments can be used immediately and do not require an additional power supply. There is no need to take along nitrogen bottles or connect the equipment to a compressed air network. Wear-free manual pressure generation is simple and easy, regardless of ambient temperature and orientation.

Basic version and Solid version

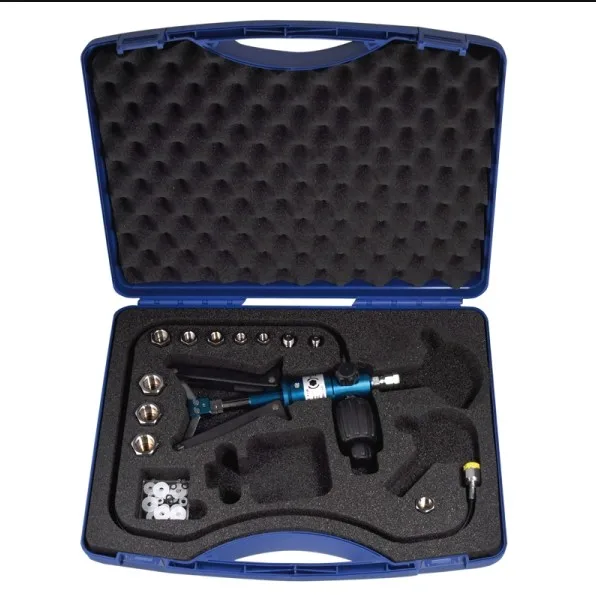

Depending on the model a matching pressure hose is part of the basic configuration of the Basic version of the test pump. The hydraulic hoses are fitted with a self-sealing quick coupling. Inch, conical or metric adapters for all commonly used connection threads are available in the Solid version. A matching seal kit is also included with the pump. All of the equipment is held in a carrying case with a foam-rubber insert.











Technical features

Basic version
Pressure mediumAir
DimensionsApprox. 240 x 170 x 50 mm
WeightApprox. 1.1 kg
Pressure ranges
Negative pressure-0.95 bar
Positive pressure60 bar
Connections
Reference
Test sampleG¼ with quick coupling and pressure hose (1m)
Solid version
Adapter kitChrome-plated brass
DimensionsApprox. 450 x 370 x 110 mm
WeightApprox. 4.2 kg
