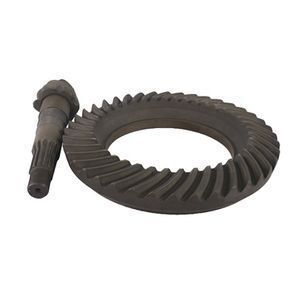

40/6 Truck bevel pinion gear set and crown wheel shaft for fuso differential

Supplier: Shenyang Xin Jin Auto Parts Manufacturing Co., Ltd.
Region: Liaoning, China
Contact: Mr Zhen Song
Price: $120.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Pressure Angle:	22.5;	Color:	Black;
Quality:	OEM&After-sale;	Direction:	Right Hand;
Material:	20CrMnTiH3,20CrMnTiH3;	Standard or Nonstandard:	Nonstandard;
Shape:	Bevel;	Showroom Location:	None;
Warranty:	1 year;	Brand Name:	Xinjin;
Place of Origin:	Liaoning China;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops;
Crown outer diameter:	291mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Local Service Location:	None;	Supply Ability:	100000 Set/Sets per Year;
Car Make:	Mitsubishi Fuso Canter;	Delivery Time:	1-3 Days with Stock, 5-20 Days without Stock;
Port:	Dalian/Shanghai/Tianjin/as customer request;	Processing:	Forging;
Packaging Detail:	Differential gears are protected by cytosepiment.covered by plastic film,One set of gears in one carton.;	After Warranty Service:	Spare parts;
The length of the pinion:	244mm;	Axle Spline Teeth:	14T;
Tooth Profile:	Helical Gear;	Speed Ratio:	6:40;

Product Description

How Differential Assy Works

The following description of a differential applies to a traditional rear-wheel-drive car or truck with an open or limited slip differential combined with a reduction gearset using bevel gears (these are not strictly necessary – see spur-gear differential):

Thus, for example, if the car is making a turn to the right, the main ring gear may make 10 full rotations. During that time, the left wheel will make more rotations because it has farther to travel, and the right wheel will make fewer rotations as it has less distance to travel. The pinion gears (which drive the flange part connected to the half shaft) will rotate at different speeds relative to the ring gear (one faster, one slower) by, say, 2 full turns each (4 full turns relative to each other), resulting in the left wheel making 12 rotations, and the right wheel making 8 rotations.

When the vehicle is traveling in a straight line there will be no differential movement of the planetary system of gears other than the minute movements necessary to compensate for slight differences in wheel diameter, undulations in the road which make for a longer or shorter wheel path, etc.

Compose	Differential case,Differential flange part,Crown and Pinion,Small differential,Bearings
Speed ratio	6:37 6:40 7:39 7:40
Spline teeth of the pinion	14T 18T
Size of the crown and pinion	PS100-Outer diameter of the ring gear 305mm inner diameter of the ring gear 175mm Length of the pinion 244mm PS120-Outer diameter of the ring gear 291mm inner diameter of the ring gear 175mm Length of the pinion 208.5mm
Material of the crown and pinion	20CrMnTiH3
Direction	Right hand
Axle spline teeth	18T
Net weight	53-60KG
Gross weight	60-67KG
Material of differential case	Nodular Cast Iron
Parallel distance of the flange holes	PS100-5948mm PS120-6452mm
Quantity of the bearings	PS100-4 PS120-5
