Hot sale machine new vibrating plate compactor with CE

Supplier: Wuxi Pinnacle Mechanical Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Amber Lu
Price: $199.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Forward;	Payment Terms:	L/C,T/T;
Engine type:	Air-cooled,single cylinder,4-stroke;	Package Preview:	https://sc01.alicdn.com/kf/HTB13v7NXgFY.1VjSZFqq6ydbXXa8.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1cf.jcEKF3KVjSZFEq6xExFXaP.jpg_640x640.jpg;
Certification:	CE;	Application:	Compaction;
Dimension(LWH):	77x43x62cm;	Condition:	New;
Warranty:	1 YEAR;	UNIQUE SELLING POINT:	Low Maintenance Cost;
Centrifugal force:	12KN;	Vibrating frequency:	4950vpm;
Max. compaction depth:	28cm;	Place of Origin:	China;
Applicable Industries:	Construction works ;	Engine:	petrol engine;
Power(W):	5-6.5HP;	Name:	Plate Compactor;
Packaging Detail:	Packing is the Carton made of strong,sturdy wooden Compressive strength and corrosion resistance;	Product name:	PME-C60 Plate Compactor;
Brand Name:	DIMEC;	After-sales Service Provided:	Online support,Engineers available to service machinery overseas;
Color:	Clients Requirements;

Product Description

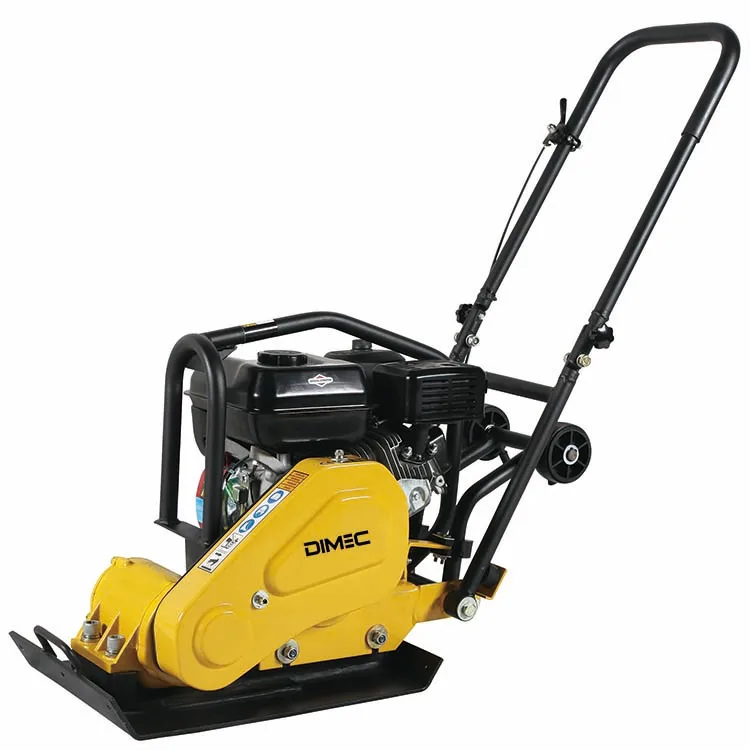

Hot sale machine new vibrating plate compactor with CE

Description

A plate compactor is an indispensable piece of construction equipment that is used to compress different types of soil, asphalt and gravel. Plate compactor increases productivity because it provide most optimal performance. Once the machine is turned on, flat, heavy plate starts to move up and down as quick as the operator wants. PME has many plate compactor models for different construction jobs, which differ in size, power and operating mechanism.

Feature

Safety and reliability
External cage to protect the plate from accidental damage.
The V-belt drive is fully enclosed for better safety and trouble free use.

Easy transportation
Foldable handle for easy transportation and storage.
Build in wheels for easy transportation.
Open bottom plate to faciliate self cleaning.

More utilisation
Properly curved edges for easy access to corners during compaction.

Comfortable operation
Heavy duty shock buffer mounts to reduce vibration toward upper deck and handle.

Model	PME-C60H	PME-C60L	PME-C60R	PME-C60BS
Engine	Honda GX160	Loncin G200F	Robin EY20	B&S 1062
Engine type	Air-cooled,single cylinder,4-stroke,petrol engine
Displacement [cc]	163	196	183	163
Engine power [HP]	5.5	6.5	5.0	5.0
Rated power [KW]	3.05	3.8	3.7	3.7
Speed [RPM]	3600	3600	3600	3600
Starting system	Manual start
Employed fuel	93#
Employed oil	10W-30
Fuel tank capacity [L]	3.6	3.6	3.8	1.8
Oil tank capacity [L]	0.6	0.6	0.6	0.6
Frequency [VPM]	4950
Centrifugal force [KN]	12
Plate size (L x W ) [cm]	51x37
Max. compaction depth [cm]	28
Travel speed [m/min]	20
Efficiency [m2/h]	380
Max. inclination angle	20o
N.W./G.W. [kg]	65/70
Package (L x W x H) [cm]	77x43x62

Packaging & Shipping

PACKAGE:

Standard export carton packing.
Packing is the Carton made of strong,sturdy wooden
Compressive strength and corrosion resistance

DELIVERY TIME:

25-30days after confirming order,detail delivery date should be decided according to
production season and order quantity.

ABOUT US

5+ years workers;
10+ years sales experience;
Export to 68+ countries;

Strong technical team

One QC for each production line,monitor production status in
real time.
15mins running before packing for each machine.

Strictly material control

Casual inspection for material and
spare parts.
>500pcs, Inspection rate 10%
100-500pcs,Inspection rate 20%, ;
< 100pcs,Inspection rate 100%

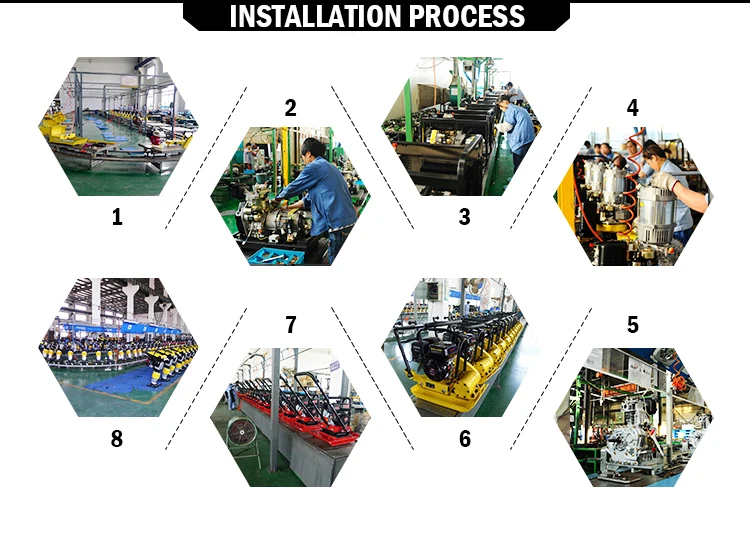

Production Process

Certifications

FAQ

What is the delivery time?

25-30days after deposit.

What is the warranty?

One year, during the warranty, we supply spare parts for free if the machines are broken. Excluding wearing parts.

What engines can you supply?

Honda engine, Robin engine, Loncin engine, Lifan engine, Kipor diesel engine and so on. We can use engine against clients’ request.

What certificates do you have?

CE, GS, Noise certificate, EPA...

Can you supply OEM,ODM?

Yes, our company can produce against to clients’ request.

Why choose us?

1,With more than 10 years of exporting experience
2,PME's strengths are rooted from our strong team and rich resources.
3,One QC for each production line,monitor production status in real time.
4.Global market management by area keeps your good sales service feelings.
