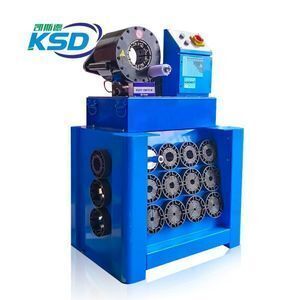

Canada use 1/4-2" P32 hydraulic hose crimping machine hose pressing machine

Supplier: Tianjin Oriental Ksd Technology Development Co., Ltd.
Region: Tianjin, China
Contact: Mr jay zhang
Price: $1600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	350kg;	Place of Origin:	Tianjin China;
Crimp inner diamter range:	1/4-2.1/2'' or 6-64mm;	Showroom Location:	None;
Brand Name:	KSD;	Supply Ability:	600 Set/Sets per Month P32 hydraulic hose crimping machine;
Contronl system:	button foot or automatic;	Crimping force:	600T;
Dies number:	16 20 22 26 30 34 38 46 51 54 57 64 69(or customize);	Local Service Location:	None;
Condition:	New;	Name:	P32 hydraulic hose crimping machine;
Payment Terms:	L/C,T/T,Western Union;	After Warranty Service:	Video technical support,Online support,Spare parts;
Crimp outside diameter range:	3-80mm;	Certificate:	CE;
Certification:	CE ISO9001;	Warranty:	3 years;
Port:	Tianjin Port or your choice;	After-sales Service Provided:	Free spare parts,Online support,Video technical support;
Dimension(LWH):	670(L)490(W)780(H)mm;	Free dies:	13 sets;
Power (kW):	3.7KW/3KW;	Voltage:	220V/380 or customize;
Machine Type:	Hose Crimping Machine;	Max opening:	130mm;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Home Use,Retail,Construction works ,Energy & Mining,Advertising Company;	Packaging Detail:	P32 hydraulic hose crimping machine package: innermost layer is plastic bag, middle layer is carton, outside layer is wooden box fumigation;
Key Selling Points:	Competitive Price;	Scale accuracy:	0.01mm;

CE Canada use 1/4-2" P32 hydraulic hose crimping machine hose pressing machine

P32 hydraulic hose crimping machine

Crimping ID range	Crimping max outside diameter	Model
1/16"-1"(1-27mm)	35mm	KSD27,KSD27A
1/8"-1.5"(3-38mm)	83mm	KSD382
1/8"-2"(3-51mm)	83mm	KSD50 series (including over ten types different hose crimping machine)
1/8"-2.5"(4-64mm)	110mm	KSD64
1/8"-3"(4-76mm)	115mm	KSD76
1/4"-4"(6-102mm)	135mm	KSD102
1/4"-6"(6-170mm)	184mm	KSD170,KSD170B
1/4"-8"(6-200mm)	250mm	KSD200
1/4"-10"(6-250mm)	325mm	KSD250

KSD52M	hose skiving&crimping machine
KSD53M	hose skiving&crimping machine&cutting machine
Other related machine	hose cutting machine, hose skiving machine, hose and fitting

P32 hydraulic hose crimping machine

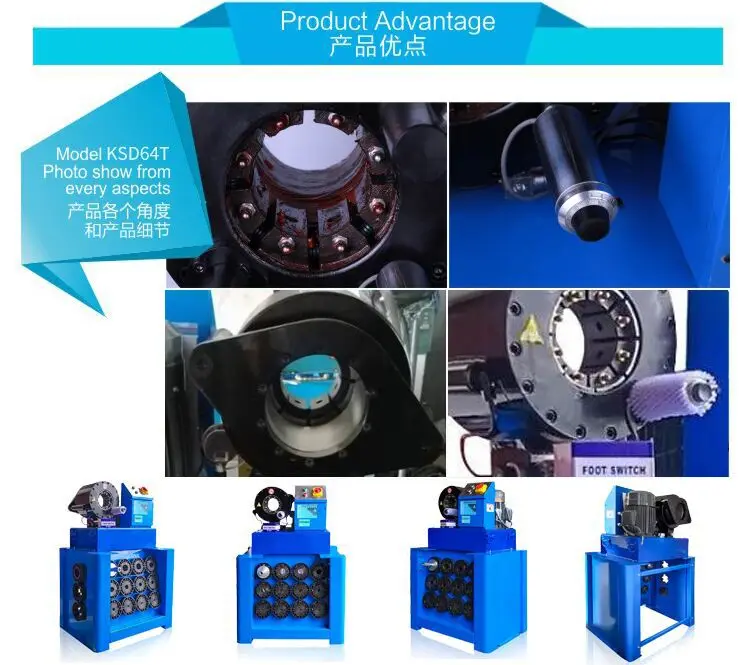

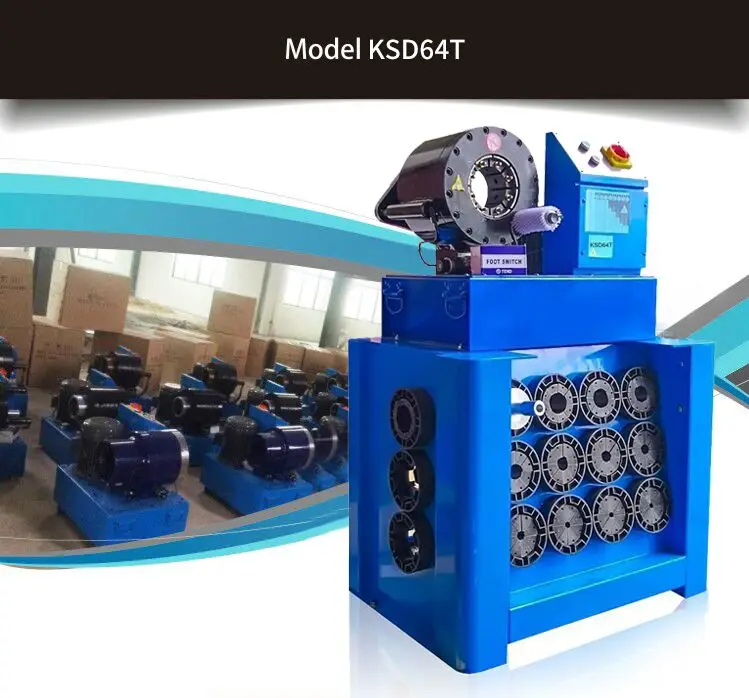

The price and following detail just are for 2inch(or 2.1/2") hose crimping machine KSD64T. If you need other size such like the 1"/1.5"/3"/4"/6"/8" hose crimping machine, please contact me, we will send the information to you. Click for more information

P32 hydraulic hose crimping machine

Welcome to click for different Model information :DX68/DX69 hose crimping machine

P32 hydraulic hose crimping machine

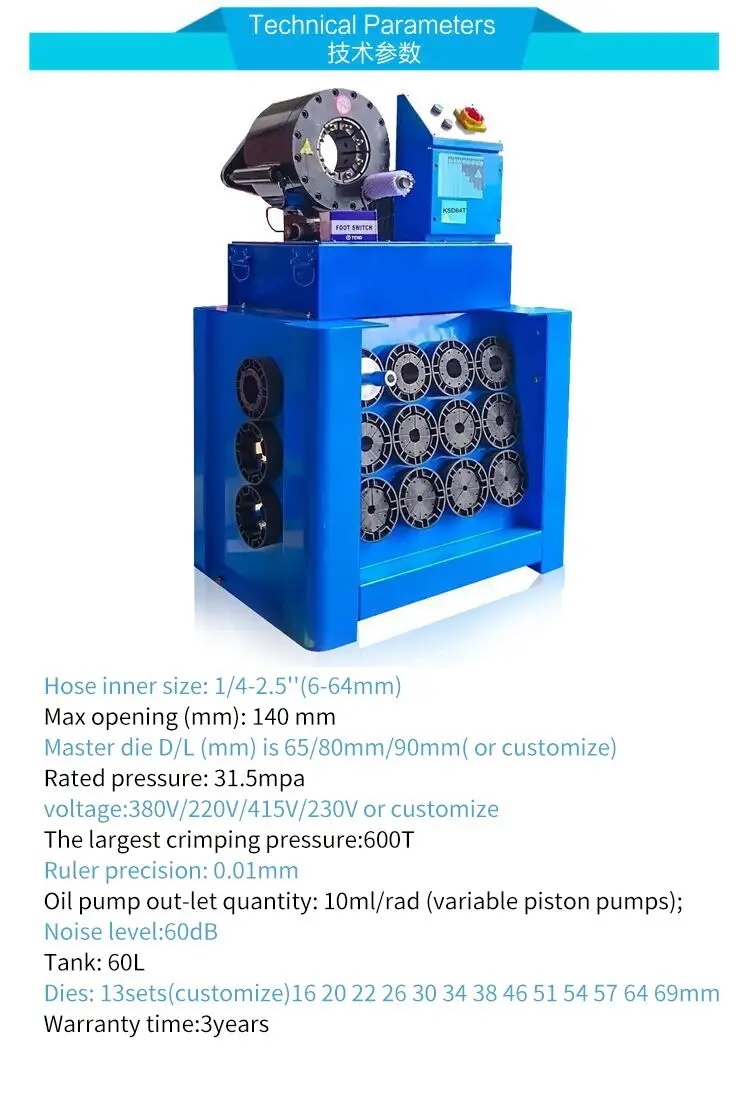

Technical parameters:

P32 hydraulic hose crimping machine

Crimping inner diamter range	1/4"-2.1/2" or 6-64mm

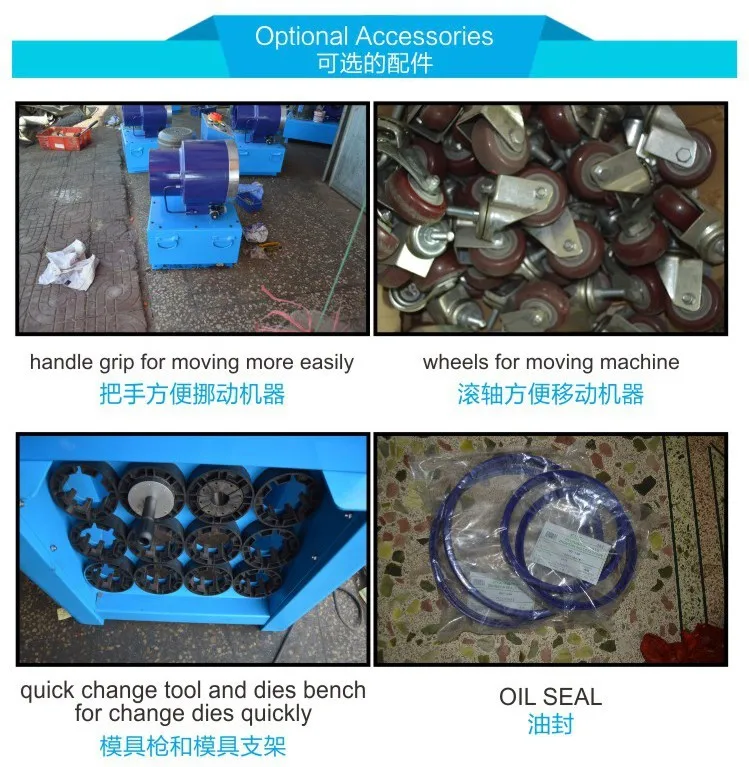

Quick change tool(quick switch dies tool)	Yes,included
Dies standing table	Yes,included
Free dies	13 set
Dies number	16 20 22 26 30 34 38 46 51 54 57 64 69(customize)
Voltage	220V-250V/380V-415V or customize
Motor power	3.7KW
Max opening	140mm
Crimping force	600T
Scale accuracy	0.01mm
Oil pump out-let quality	2.5L/5L
Noise level	75dB

Click for more information

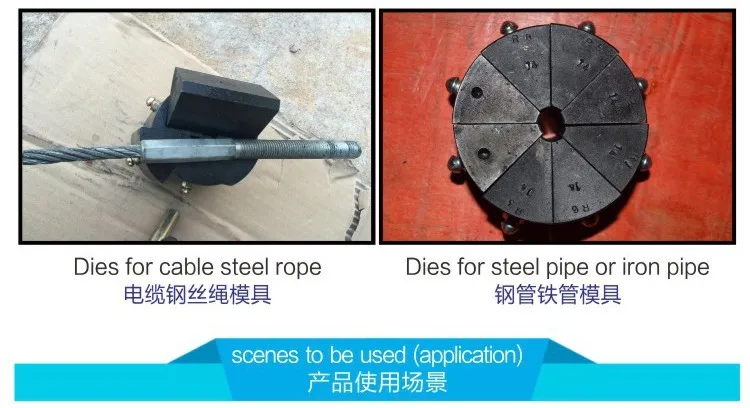

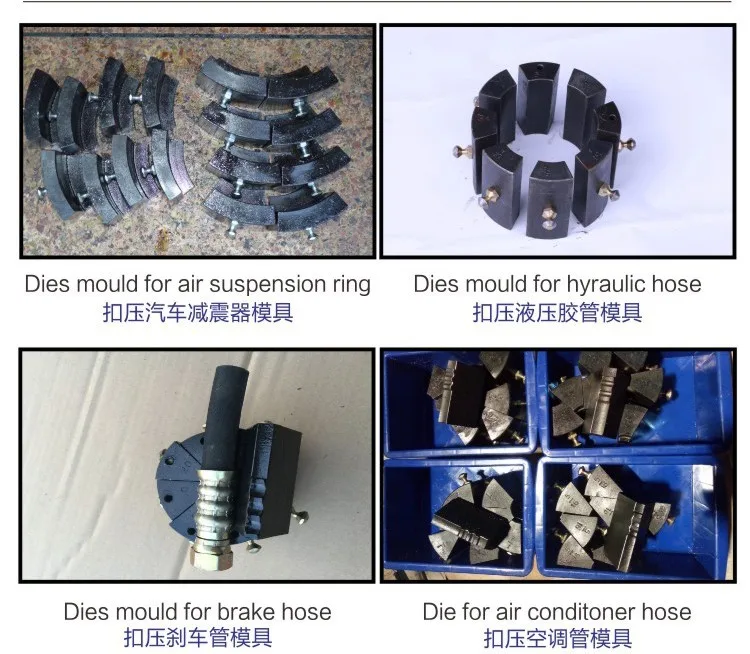

Die mould: different pressing product need different dies mould. Like air suspesion ring, air conditioner hose,brake hose,hydraulic hose,cable, steel pipe,so you can tell us what you need to crimp, then we make diesmould for your products.

P32 hydraulic hose crimping machine

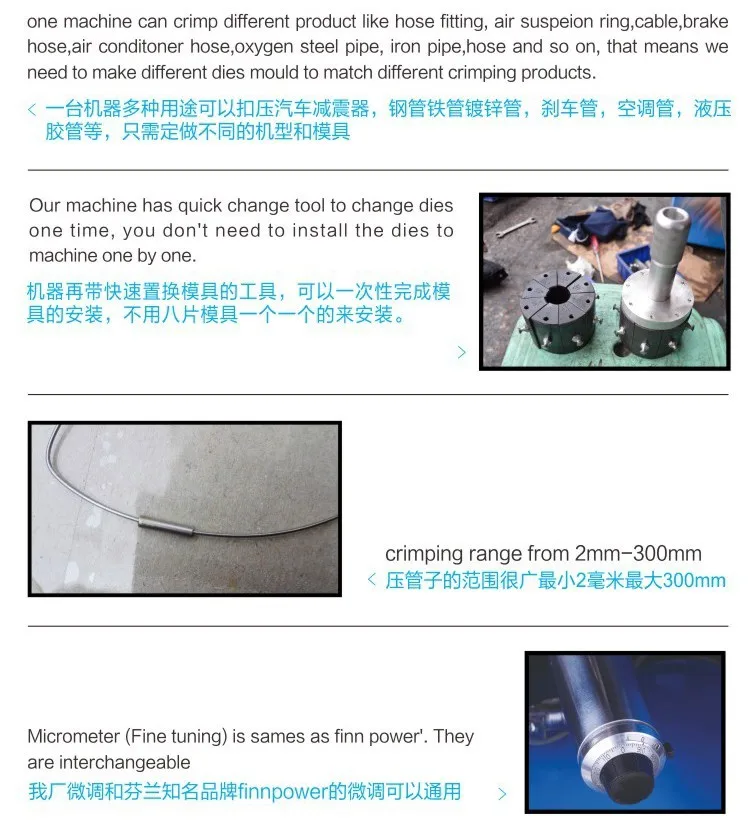

Our machine can crimp below stuffs,and if you have other shape stuff to crimp, you can send us the details or your products sample,we will provide you with products tailored to the machine and mold.

1.We have many agents all over the worlds, so you can contact our agent to buy our products

2.Technical support any time, Our engineer cellphone:+86113821414323
3.Warranty time 3years, the warranty card with machine together to you.
4.Supply Video to learn how to use machines.
5. Door to door service, we are in charge of sending the machine to your office, after payment.
6.we can design machines as your draw and requirements. OEM

P32 hydraulic hose crimping machine

Trouble phenomena	Trouble reason	Eliminating method
Machine has not action	Oil tank has not been filled with oil	Fill oil as per requirement
	Motor rotation direction is not correct	Regulate two phase lines
	Electric trouble	Overhaul electric circuits
Scale is damaged	The scale is fastened on the oil cylinder end face by the screw	Regulate the scale as per the instruction to make scale to telescope freely
	Conductor at scale location is connected with scale	Anew connect the scale conductor to make it to be insulated from scale base
	Electric trouble	Overhaul electric circuits and electric elements
	Scale conductor cutting	Anew connect scale
	System pressure is excessively low	Adjust buckling pressure-regulating valve
No buckling	The valve core of solenoid reversal valve is seizured by foreign matters	Dismount solenoid reversal valve, use gasoline to clean the valve core.
No buckling	Electric trouble	Overhaul electric circuits
Mould is not opened	Opening mould pressure is excessively low	Adjust opening mould pressure regulating valve
	Electric trouble	Overhaul electric circuits
	Lubrication is poor	Smear grease on the working inclined face of mould base
Oil leakage	Joint is not tightened closely	Tighten the oil pipe joint
Oil leakage	Sealing washer is damaged.	Replace sealing washer

P32 hydraulic hose crimping machine

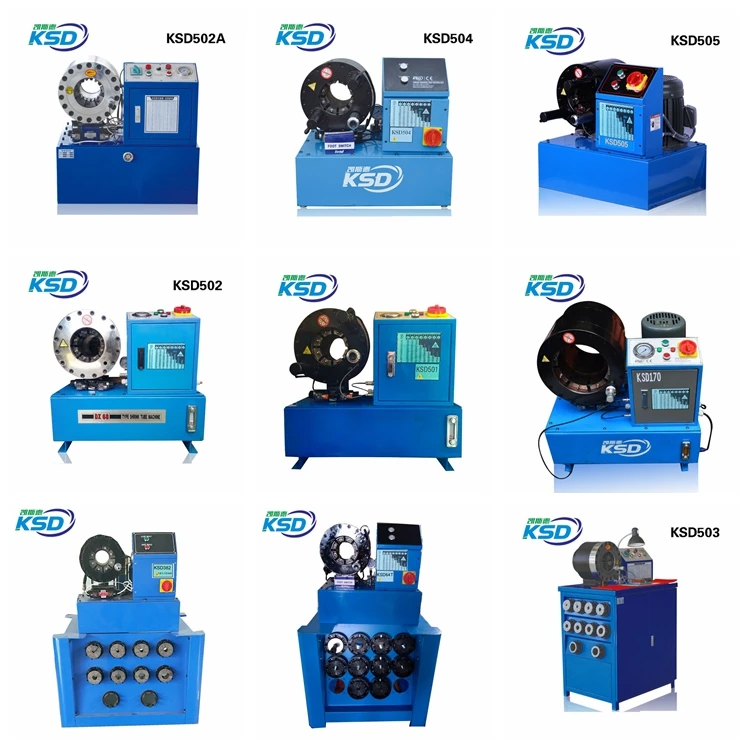

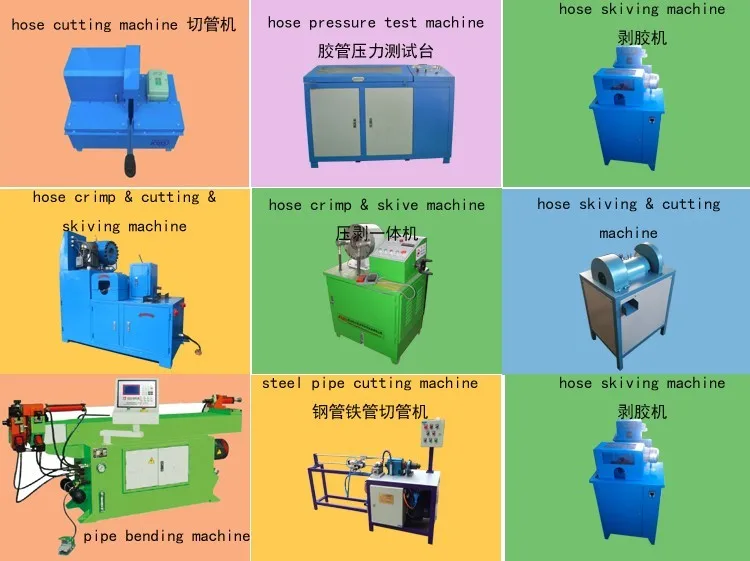

We have more models and products for you choose, like crimping machine range from 2mm-300mm,1/8-10inches, skiving machine,cutting machine, pipe cutting machine, crimping&skving machine, crimping&skving&inches,hose test machine,pipe bending machine and so on.
