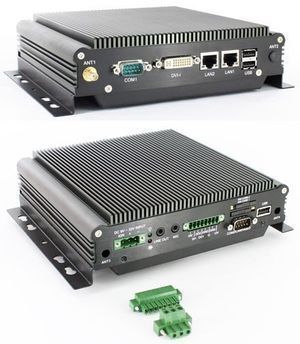

SD3110 Intel Cedarview Atom D2550 Dual Core 1.86GHz CPU with 9~32V DC Input In-Vehicle Computer

Click here to contact

Product details

Payment Terms:	T/T;	Combination:	Bluetooth-Enabled, Built-in GPS, DVD Player, Touch Screen;
Model Number:	SD3110;	Port:	Hong Kong;
Warranty:	12 Months;	Supply Ability:	5000 Piece/Pieces per Week;
Packaging Detail:	in Box;

SD3110 Intel Cedarview Atom D2550 Dual Core 1.86GHz CPU with 9~32V DC Input In-Vehicle Computer / Vehicle PC / In Vehicle PC

Specification

System
CPU	Intel Cedarview Atom D2550 Dual Core 1.8GHz Processor
Memory	1 x DDR3 1066MHz SO-DIMM up to 4GB
Chipset	Intel NM10
Graphic	Intel GMA3650
ATA	2 x Serial ATA 2.0 Ports
LAN Chipset	2 x Realtek 8111E Gigabit Ethernet
Watchdog	1 ~ 255 Level Reset
Power Requirement
Power Input	9V -32V DC Power Input
Power Management	Vehicle Power Ignition for Variety Vehicle
Power Off Control	Power off Delay Time Setting by Software, Default is 5 Mins
Backup Battery	Internal Battery Kit for 10 Mins Operating (Optional)
I/O
Serial Port	Suuport 2 x RS-232 (COM1 with RS-232/422/485)
USB Port	3 x USB 2.0 ports
LAN	2 x RJ45 ports for GbE
Video Port	1 x DVI-I Female Connector for DVI-I and VGA Output
GPIO Port	Support 2 in and 2 out with Relay 12V / 100mA
Audio	Mic-in/Line-out
Expansion bus	3 x Mini-Card Slots
Antenna	4 x SMA-type external antenna connectors for WLAN / UMTS / GSM / GPRS / GPS
SIM Card Socket	2 x SIM Card sockets supported onboard with eject
Mechanical & Environmental
Dimension	182(L) x 167.6(W) x 52(H) mm
Mounting Method	Din Rail Mounting Kit
Weight	1406 g
Relative Humidity	5 ~ 90% (non-condensing)
Operating Temp.	-20 ~ 70°C (SSD), ambient w/ air
Storage Temp.	-40 ~ 80°C
Certificatins	CE, FCC Class A, eMark Compliance
Ordering Information
Part Number	SD3110
Description	Intel Cedarview Atom D2550 Dual Core 1.86GHz CPU with 9~32V DC Input In-Vehicle Computer
