Smallest Win8 Linux Fanless Fleetpc / CarTFT / Car PC

  • 1.00 piece
Min. Order: 1 piece FOB PRICE
Contact Supplier View Company
Registered Supplier Direct Contact Inquiry via Message
Product Details
Smarter Vehicle Power Ignition:YES;Payment Terms:T/T;
Port:Hong Kong;Combination:Bluetooth-Enabled, Built-in GPS, DVD Player, Touch Screen;
Supply Ability:5000 Piece/Pieces per Week;Power Input:9V-36V;
COM Ports:3x RS-232 (COM1 with 232/422/485);BT:Supported;
GPS:Supported;Packaging Detail:in Box;
Warranty:12 Months;3G/4G:Supported;
DI/DO:Support 2 x DI / 2 x DO (12V / 100mA);WIFI:Supported;





With Internal Backup Battery Smallest Win8 Linux Fanless  Car PC



Intel Haswell Dual Core 2980U 1.6GHz CPU with 3 x RS-232/ DC 9-36V Input In-Vehicle Computer / In Car PC

  • Intel Gen4 Dual Core 2980U 1.6GHz (optional I3-4010U)
  • Wireless support LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
  • 9V - 36V DC Power Input
  • Smarter Vehicle Power Ignition for Variety Vehicle
  • Support 3x RS-232 (COM1 with 232/422/485)
  • Support 2 x DI / 2 x DO (12V / 100mA)



Specification

System
CPU
Intel Gen4 Dual Core 2980U 1.6 GHz (optional I3-4010U)
Memory
1 x DDR3L-1600 SO-DIMM up to 8GB
Chipset
N/A
Graphic
Intel HD Graphics
ATA
2 x Serial ATA 2.0 Ports with 6Gb/s HDD Transfer Rate
LAN Chipset
2 x Intel i210-AT Gigabit Ethernet
Watchdog
1 ~ 255 Level Reset
Power Requirement
Power Input
9V -36V DC Power Input
Power Management
9V -36V DC Power Input
Power Off Control
Power off Delay Time Setting by Software, Default is 5 Mins
Backup Battery
Internal Battery Kit for 10 Mins Operating (Optional)
I/O

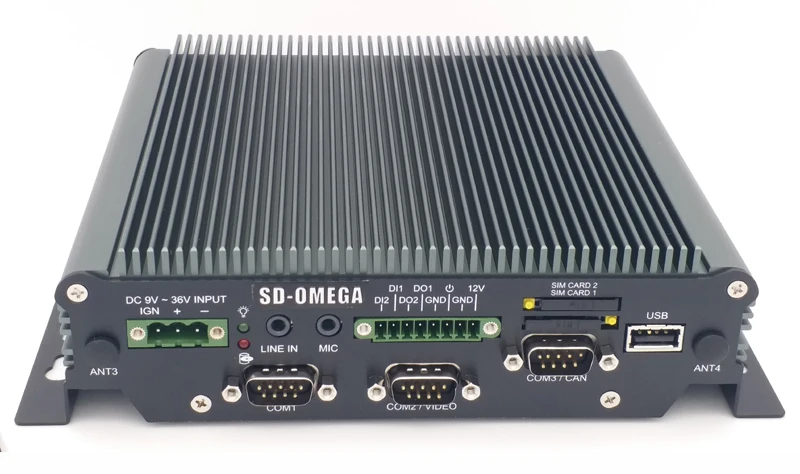

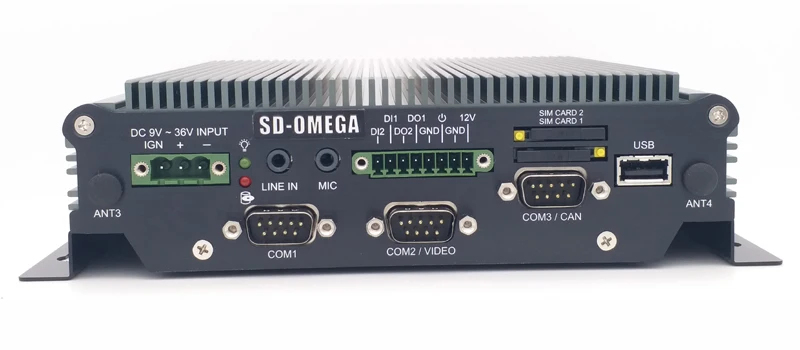

Serial Port
Suuport 3x RS-232 (COM1 with RS-232/422/485)

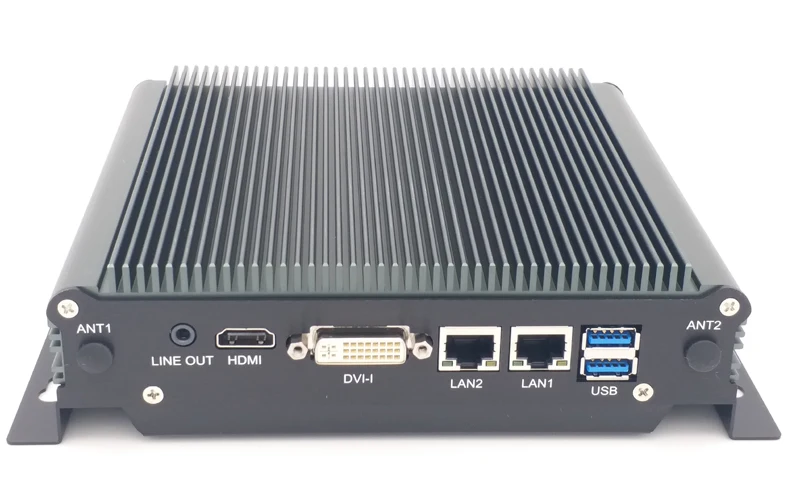

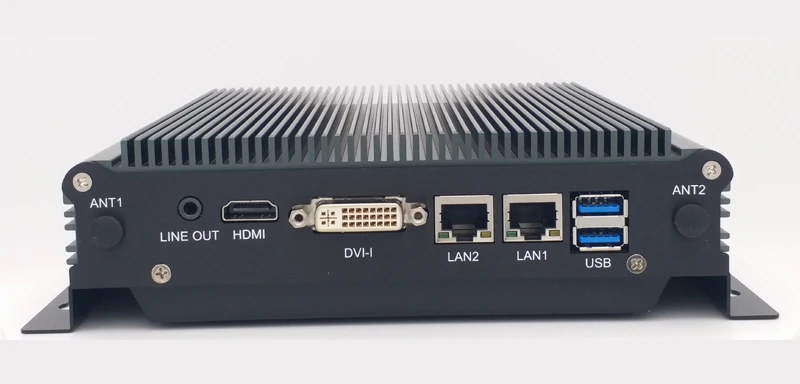

USB Port3 x USB 2.0 ports
LAN2 x RJ45 ports for GbE
Video Port1 x HDMI and DVI-I
GPIO PortSupport 2 In and 2 Out (12V / 100mA)
AudioMic-in/Line-out
Expansion bus3 x Mini-Card Slots
Antenna4 x SMA-type external antenna connectors for WLAN / UMTS / GSM / GPRS / GPS
SIM Card Socket2 x SIM Card sockets supported onboard with eject
Mechanical & Environmental
Dimension182(L) x 167.6(W) x 52(H) mm
Mounting MethodDin Rail Mounting Kit
Weight1406 g
Relative Humidity5 ~ 90% (non-condensing)
Operating Temp.-20 ~ 70°C (SSD), ambient w/ air
Storage Temp.-40 ~ 80°C
CertificatinsCE, FCC Class A, eMark Compliance
Ordering Information
Part Number
SD3210-3S
DescriptionIntel Haswell Dual Core 2980U 1.6GHz CPU In-Vehicle Computer w/ 9~36V
DC Input
