Micro nano bubble generator gas-liquid/ozone water mixing pump for waste water treatment

Product details
Function:gas liquid mixing;Volt:220v /380v;
Flow rate:1T/H, 2T/H, 6T/H, 12T/H;Product name:micro bubble generator;
Liquid temperature:-15-120 ℃;Brand Name:ZEAO;
Delivery Detail:delivery in 5 days for sample order;MOQ:1 set;
Supply Ability:200 Set/Sets per Month;Port:Guangzhou;
Place of Origin:Guangdong China (Mainland);Power:0.55-5.5 kw;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;Packaging Detail:carton/wooden box;
Fine air bubble:20-30μm;Speed:2900r/min;
Gas liquid ratio:1:9;

 Micro nano bubble generator gas-liquid/ozone water mixing pump for waste water treatment

Feature

-It can suck water while sucking gas and pressurize and mix them inside it. Ultra fine air

bubble 20~30µ. It renders a good gas liquid solving effect.

-It has stable performances, high efficiency and low noise level, and its gas liquid solving

efficiency is as high as twice that of the traditional mode.

-When it is used in air suspension unit, air compressors, various mixers, high pressure air

solving tanks and releasers may be saved and thus the weakness of instable air supply and

boiling of large air bubble which likely occur in traditional working model will be eliminated.

-When it is used in ozone water preparing equipment, many mixers and large oxidation

towers may be saved and thus the cost for equipment will be greatly reduced. In addition,

its gas liquid solving ratio may exceed 95%.

-It is simple in structure and operation, easy in maintenance and durable and needs less

components. It has a good self suction capacity and a wide application range.



Applications

-Air suspension treating equipment, ozone water preparing equipment, and biological

treatment equipment.

-Feeding of heating or cooling medium for various temperature adjusting devices.

-Various filters: sucking or high pressure transferring low viscosity liquid from underground

tank, such as gasoline and various solvent.

-Treatment of clear water, pure water, foods, chemical solution and waste solution.

-Strict applications (continuous running, abruot variation in hydraulic pressure): such as

small scale stream boiler, high building water supply, high pressure water injection to high

pressure tank, and suction from vacuum tank.

-Sampling from river or tank, transfer foamable liquid, transfer liquid through long and

horizontal pipeline, where air pockets likely occur.



Working condition

ZA and ZAL designed for clear and low viscosity liquid, or liquid containing extra-fine

foreign matters.

ZAB and ZALB design for clear and low viscosity liquid, or explosive flammable liquid

which containing very little solids.

Liquid temperature: -15℃ ~ 120℃

Maximum ambient temperature: +40℃

Gas-liquid ratio 1:9 (Gas suction volume 8~10%)

Inlet: horizontal, Outlet: Vertical



Specification

Item

20ZA-1SS

20ZA-1DS

25ZA-2SS

25ZA-2DS

40ZA-6SS

50ZA-12

Head of delivery

40M

50M

Flow rate

1T/Hr

2T/Hr

6T/Hr

12T/Hr

Water input size

0.75’’

1’’

1.5’’

2’’

Water output size

0.5’’

0.75’’

1.2’’

1.5’’

Power

0.55Kw

1.1Kw

3Kw

5.5Kw

Voltage

380V

220V

380V

220V

380V

380V

Speed

2900r/min

Size of Tank

φ200×320mm (3mm thickness)

φ273×720mm (3mm thickness)

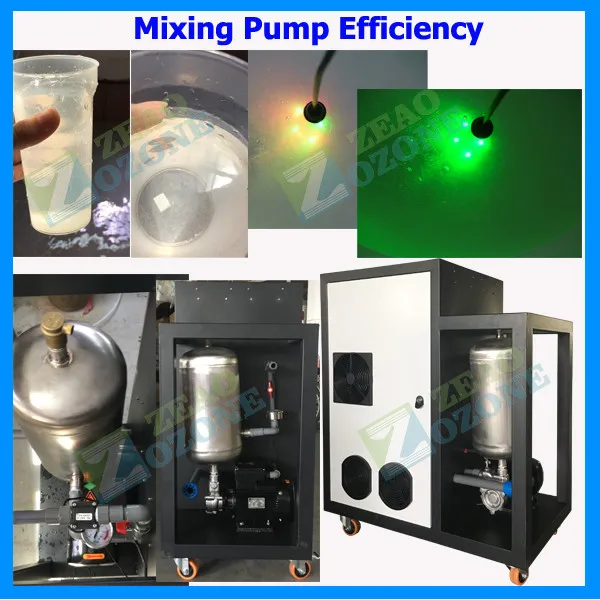

Product show

used with ss304/316L mixing tank

SS Mixing Tank

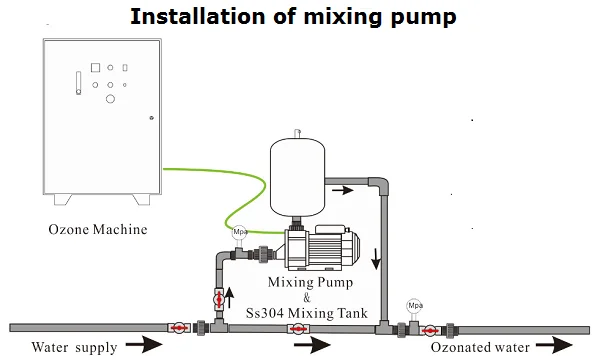

Micro Bubble Generator Assembled With Oxygen Or Ozone Machine For Water Treatment:

Drinking Water Treatment, Aquaculture Water Treatment

Big capacity 23T 45T gas liquid mixing pump

Other mixing devices





Delivery term

1. 3-5 days for sample order;

2. 10-30 days for mass production order;

3. delivery by courier, air line or by sea;
