2019 3L 5L 10L industrial lab equipment recirculating chillers
- 199.00 set
| After-sales Service Provided: | Free spare parts; | Port: | shenzhen,shanghai,qingdao,tianjin; |
| Dimension(L*W*H): | 415x223x497; | Warranty: | 2 Years; |
| Certification: | CE; | Dimension(L*W*H): | 415x223x497mm; |
| Warranty: | 2 years; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,paypal; |
| Voltage: | 500w; | Model: | ABTDLSB3/20; |
| Supply Ability: | 1000 Set/Sets per Year; | Place of Origin: | Henan China (Mainland); |
| Voltage: | 220v/110v; | Weight: | 35KG; |
| Cooling capacity: | 500w; | Brand Name: | aibote; |
| Type: | Water-Cooled; | Condition: | New; |
| Product name: | 2019 3L 5L 10L industrial lab equipment recirculating chillers; | Weight: | 35KG; |
| Application: | Industrial Cooling Solutions; | Packaging Detail: | wooden box for 2019 3L 5L 10L industrial lab equipment recirculating chillers; |
| Temperature range: | -20 to 20; | Certification: | CE; |
| Power(W): | 500W; |

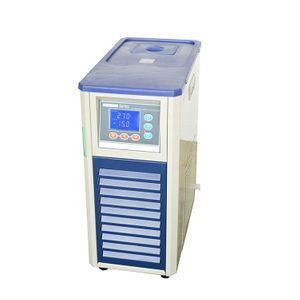

2019 3L 5L 10L industrial lab equipment recirculating chillers
AIBOTE general purpose Model ABTDLSB/ABTDHJF series is ideal for internal and external temperature control when heating and/or cooling are required. This compact, space-saving design offers consistent system performance and easy operation at an unbeatable low price.
This unit can be utilized for a variety of end-user and OEM applications,including electron microscopes, general laboratory apparatus and cooling, water-jacketed incubators, rotary evaporators, electrophoresis , spectrophotometers, enzyme and protein assays, laser cooling and more.
1) The microprocessor-based PID controller increase heat/cool responsiveness to ensure constant temperature.
2) The unique LCD display panel and environmental control system features part-load sound levels below that of conventional speech at a distance of two meters.
3) environmental technology also optimize compressor and evaporator performance, reducing overall energy consumption and prolonging compressor life.
4) QDC fittings and stainless steel reservoir facilitate user-friendly operation and simple maintenance.The vinyl feet ensure stable placement on your benchtop.
Specifications
Model | ABTDLSB-3/-20 | ||||
Reservoir Volume (L) | 2 | ||||
Lowest temp (℃) | -20 | ||||
WORKING Condition | Temp Range (℃) | -20~20 | |||
| Environmental Temperature(℃) | ≤25 | |||
| Relative humidity(%) | ≤60 | |||
| Power supply | 220V±10% 50/60Hz or AC110V± 10%, 60Hz. | |||
Main performance and components | Temp Control | Temp Display | LCD Display | ||
|
| Temp Accuracy ℃) | ±2 | ||
|
| Thermocouple Type | Pt100 | ||
| Meter Adjustment Range(℃) | ±50 | |||
| Safety Protection | Delay time, overcurrent, overheating | |||
| Cooling Capacity (W) | 10℃ | 1150 | ||
|
| -20℃ | 320 | ||
| Compressor | Power (W) | 500 | ||
|
| Number of It | 1 | ||
|
| Refrigerants | R404A | ||
| Circulating Pump | Power (W) | 100 | ||
|
| Flow (L/min) | 20 | ||
|
| Lift (m) | 5~7 | ||
Outer loop interfaces | 1 of 2 stainless steel valves | ||||
1 Are you a factory or trading company ?
A : We are a factory
2 .Where is your company location ? How can i visit there ?
A :Our factory is in zhengzhou city ,henan province , China , near XINZHENG INTERNATIONAL AIRPORT , you can fly to ZHENGZHOU AIRPORT to us , welcome to visit us !
3.What the material of your products ?
A: superfine ceramic for top plate for all of our stirrers ,metal shells , can be customized as your requests
4. How can i get some sample ?
A. We are honored to offer sample for your evaluation
5. How does your company do regarding to the products quality control ?
A : Quality is the most important. BV Intertek ,SGS authentication
