mini lifting HP1000 ELECTRIC TRUCK CRANE for pick up goods manufacturer crane arm

Click here to contact

Product details

Property:	safe and reliable;	Max. Lifting Load:	500kg;
power:	electric;	Packaging:	Wooden case for per piece;
Delivery Detail:	25-35 days after deposit;	Packaging Detail:	Wooden case for per piece;
Payment Terms:	L/C,T/T,Western Union;	Feature:	Truck Crane;
Supply Ability:	1000 Piece/Pieces per Month electric truck crane;	Application:	pick up goods;
Rotation:	360 degree;	Port:	Tianjin,shanghai,ningbo;
Span:	1.72m;	Rated Loading Capacity:	500kg;
Sample:	accept;	MOQ:	1 Piece;
Rated Lifting Moment:	1764kN.M;	Voltage:	12V/24V;
Model Number:	HP1000;	Brand Name:	ARK;
Max. Lifting Height:	3 meters;	Power:	hydraulic system;
After-sales Service Provided:	Overseas third-party support available;	Certification:	CE;
G.W:	63kg;	Place of Origin:	Hebei China;
Application:	pick up crane;	Condition:	New;
Warranty:	12 month;

mini lifting HP1000 ELECTRIC TRUCK CRANE for pick up goods manufacturer crane arm

Product Description

1. The maximum lifting weight: 500 kilograms

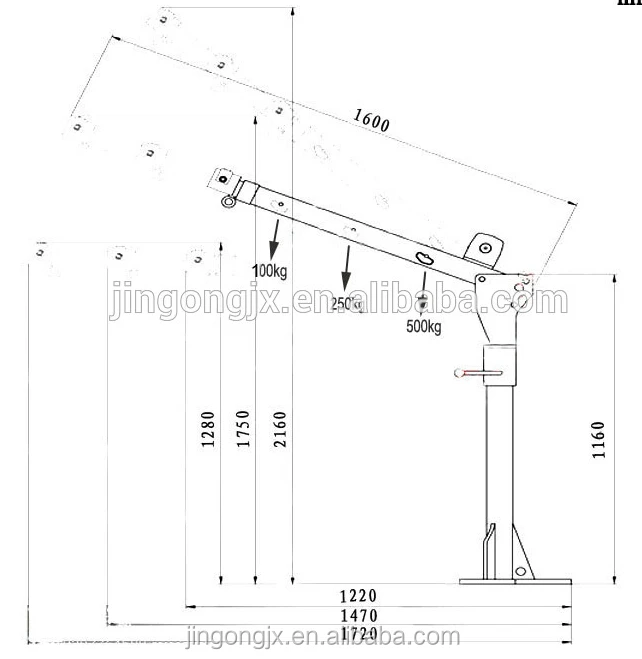

2. Crane jib height: adjustable minimum 1.1 meters, maximum 1.95 meters

3. Suspension arm length: hook whereabouts ground and main rod distance 0.9-1.5 meters adjustable, 3 hole positioning pin hole adjustable.

4. Source: 12 v, 24 v, 220 v, 380 v or manual winding optional.

5. Wire diameter: 4.8mm, length of 4.5 m.

Max Single line lifting capacity	300kg
Max Double line lifting capacity	500kg
Lifting Height max. Std . (base to hook )	1940mm
Reach Max (from center to rotation )	1490mm

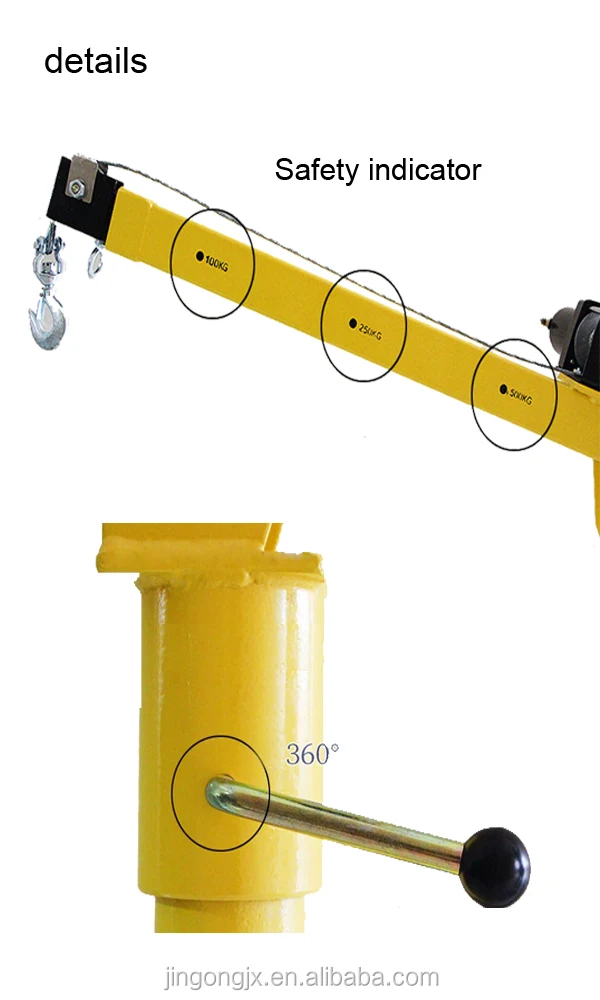

Rotation (continuous ) with Brake	360 manual
Line speed with No load	3.6m/min single line
Power requirements	12V DC 125 amps
Switch Cable	4.2m

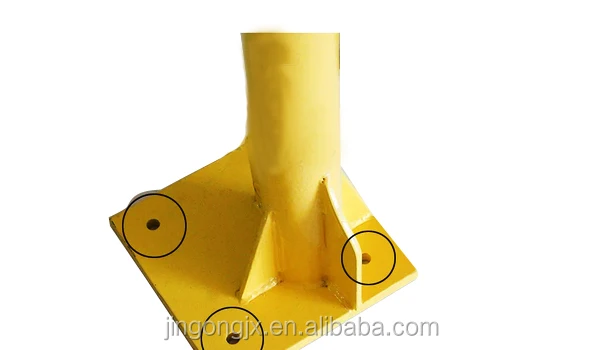

Mounting Base	25025018mm
Mounting Bolt Hole Pattern	170*170mm
Finish	Powder Coated
Net Weight of Crane	58.5kgs
