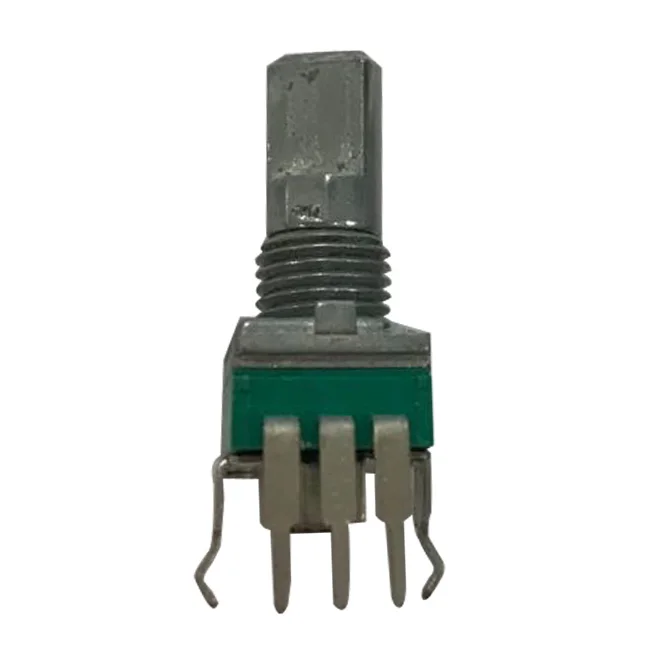

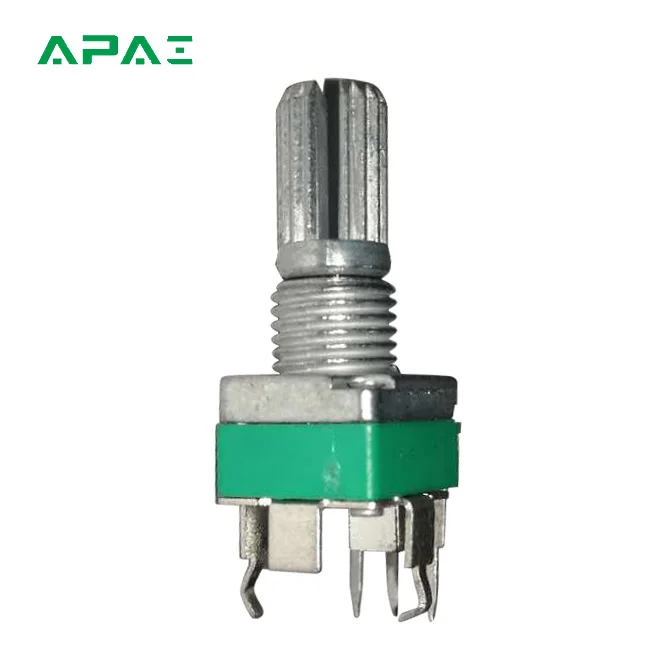

9mm potentiometer 100K ohm horizontal rotary remote control potentiometer

Product details
Brand Name:APAI;Technology:Carbon Film;
Max. Operating Voltage:Taper B:50V AC/Except B:25V AC;Place of Origin:China;
Keywords:B10k Linear Potentiometer;Resistance:1KΩ-1MΩ;
Model Number:RK095NH1;Operating Temperature:-10 ℃ ~ +70 ℃;
Rated Power:Taper B:0.05W/Except B:0.025W;Resistance Tolerance:±20%;
Product name:9mm Rotary Potentiometer;Type:Rotary Potentiometer;
NEW



Operating temperature -10  ℃ ~ +70  ℃
Manual soldering 260 ℃ Max 3sec
Total resistance 1KΩ ~ 1MΩ
Resistance tolerance ±20%
Resistance taper A B
Sliding noise Less than 68 mV
Residual resistance Less than 20 Ω
Insulation resistance More than 100MΩ at DC 250V
Max. Operating voltage 50V AC
Withstand voltage 1 Minute at AC 300 V
Total rotational angle 300° ± 5°
Rotational torque 20 ~ 250 gf.cm
Rotational stopper strength 4Kgf.cm Max
Rotational life 10,000 cycles
