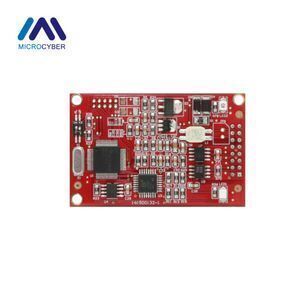

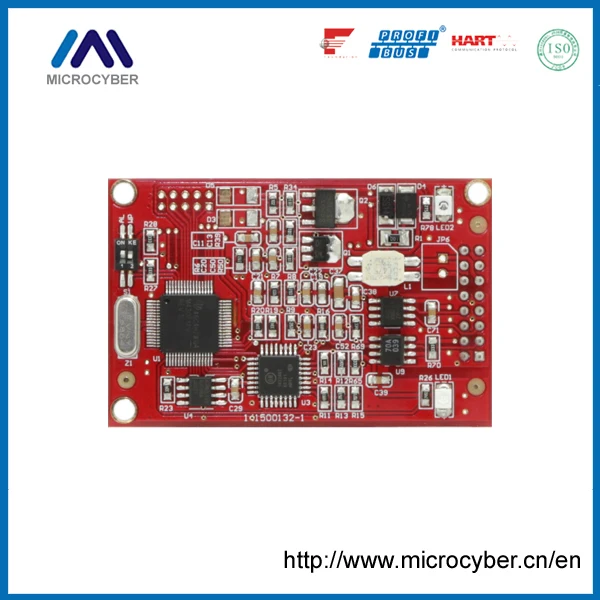

M0310 MODBUS to HART Built-in Module for instrument

Supplier: Microcyber Corporation
Region: Liaoning, China
Contact: Ms Microcyber Corporation
Price: $80.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Brand Name:	Microcyber;	Selling Units:	Single item;
New Protocol:	HART;	Package Type:	Carton;
Interface:	TTL;	Place of Origin:	Liaoning China;
Original Protocol:	Modbus;	Single gross weight:	0.3 KG;
Model Number:	M0310;	Installation:	DIP16 2.54mm;
Dimension (L x W x H):	65 x 42 x 15 mm;	Single package size:	10X8X2 cm;

Product Description

M0310 module makes it possible to convert Modbus RTU protocol directly to HART protocol. Using M0310 module, the difficulty of development can be reduced and the upgrade of Modbus RTU device can be easily achieved. Only by simply configuration, the users can realize conversion from Modbus RTU protocol to HART protocol. M0310 module is provided with two LED indicating lights, used to indicate the current working status.

Specifications

Working Temperature	-40 °C ... +85 °C
Storage Temperature	-40 °C ... +85 °C
Power Supply	12 ... 42 V
Dimension (L x W x H)	65 x 42 x 15 mm
Interface	TTL
Indicator Light	Rx/Tx, bus-specific
Weight	15 g
Original protocol	Modbus; GB/Z 19582.1-2004
New protocol	HART; GB/T 29910.1~.6-2013
Electromagnetic compatibility	GB/T 18268.1
Noise immunity	GB 9254
Installation	DIP16 2.54mm

Features

●	Comply with HART PROTOCOL standard V7.0
●	HART slave station and Modbus master station form
●	Support 1 Modbus RTU slave device
●	Support 6 device variables,4 dynamic variables
●	Configured by HART interface
●	Write-protection of users data
●	Support high/low current transfinite alarm
●	TTL Modbus interface
●	LED power and communication indicator

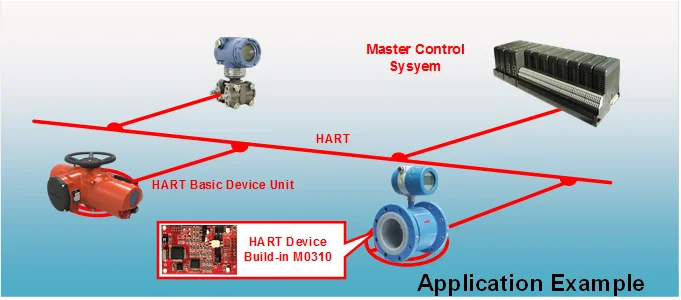

How it Works

Interface Defination

Pin	I/O	Name	Description	Pin	I/O	Name	Description
1	I	VCC_IS	The signal isolation power supply, provided by baseboard	2	I	GND_IS	The signal isolated power ground, provided by baseboard
3	I	/RES	CPU Reset, low active	4	I/O	NC	Reserved
5	O	TXD	CPU TXD	6	O	RTS-485	RS-485 control port*
7	I/O	NC	Reserved	8	I	RXD	CPU RXD
9	O	NC	Reserved	10	I/O	Status	Communication indicating light
11	I/O	BUS+	Bus Power Supply+	12	I/O	BUS-	Bus Power Supply-
13	I/O	NC	Reserved	14	I/O	NC	Reserved
15	I/O	NC	Reserved	16	I/O	NC	Reserved

*:It is used for connection with RS-485 communication chip.
