AA4C full automatic car brake lathe c9370c brake lathe c9350

Product details
Product name:AA4C full automatic car brake lathe;Application:Workshop;
Model No.:c9370c brake lathe c9350;Place of Origin:Shanghai China;
Warranty:1 Months;Certificate:CE ISO;
Brand Name:AA4C;Spindle Travel:9.875"(251mm);
Port:shanghai;Rotor Diameter:7"-18" (180mm-457mm);
Spindle Speed:70, 88, 118RPM;Rotor Thickness:4" (102mm);
Packaging Detail:Plywood case AA4C full automatic car brake lathe;Color:Red;
Payment Terms:L/C,D/P,T/T;Voltage:AC 220V 50Hz;
Supply Ability:100 Yard/Yards per Month AA4C full automatic car brake lathe;



Product Description

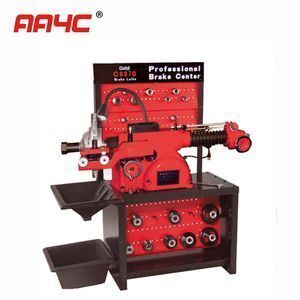

  AA4C full automatic car brake lathe C9370C

Feature

1. The lathe uses precision electric DC servo motors designed to meet the demanding requirement of industrial motion control .
2. The " Change Adapter " system eliminates the need for conventional bell clamps and cones and features built-in springs ensure you don't lose them .
3. The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability .
4. Infinitely variable spindle and cross feed speed settings allow for quick rough and precision finish cuts .
5. A convenient top storage tray means you can easy to take your favorite adapters and tools .
6. Separate motors on the drum and rotor feed help maximize the main motor's efficiency .
7. The variety of adapters lets you machine all standard and composite rotors for foreign and domestic cars and light trucks .
8. Positive rake cutter tip angle provides for a one pass finish virtually every time, allowing you to complete your work fast

Specification

+

Spindle Travel

9.875”(251mm)

Spindle Speed

70, 88, 118RPM

Rotor Diameter

7”-18” (180mm-457mm)

Rotor Thickness

4” (102mm)

Drum Diameter

6”-28” (152mm-711mm)

Drum Depth

9.875”

Motor

110V/220V/380V, 50/60Hz

Shipping Weight

350KG

Dimension

1100mmX1070mmX1140mm

Optional adapteR



+

NO.

Description

Qty

A

B

C

1

Double Taper Cone 1.34” X1.66”(34mm X 42mm)

1

.

.

.

2

Double Taper Cone 1.36” X1.69”(35mm X 43mm)

1

.

.

.

3

Double Taper Cone 1.72” X2.06”(44mm X 52mm)

1

.

.

.

4

Double Taper Cone 2.06” X2.44”(52mm X 62mm)

1

.

.

.

5

Double Taper Cone 2.45” X2.81”(62mm X 71mm)

1

.

.

.

6

Spacer(5mm,10mm,20mm,25.4mm,50.8mm.50.8mm)

6

.

.

.

7

Open End Wrench 27-30mm

1

.

.

.

8

Special Wrench

1

.

.

.

9

Spring

1

.

.

.

10

Silencing Belt For Rotor&Drum

2

.

.

.

11

Double Taper Cone 2.84” X3.19”(72mm X 81mm)

1



.

.

12

Double Taper Cone 3.19” X3.54”(81mm X 90mm)

1



.

.

13

Chuck Adepter Set(5 Pcs)

1



.

14

Clamp 3.7”(94mm)

2

.



15

Clamp 4.57”(116mm)

2

.



16

Clamp 5.75”(146mm)

2

.



17

Taper Cone 2.91” X 3.56”(74mm X 90mm)

1

.



18

Taper Cone 3.38” X 4.05”(85.8mm X 103mm)

1

.



19

Taper Cone 1.62” X 2.37”(41mm X 60mm)

1

.



20

Taper Cone 1.96” X 3.43”(52mm X 62mm)

1

.



21

Hubless And Composite Rotor Adapter Set (10Pcs)

1



.







Packaging & Shipping



AA4C Exhibition Show



More we have

See what we  have more ! Click following fotos :

1. Car lift:

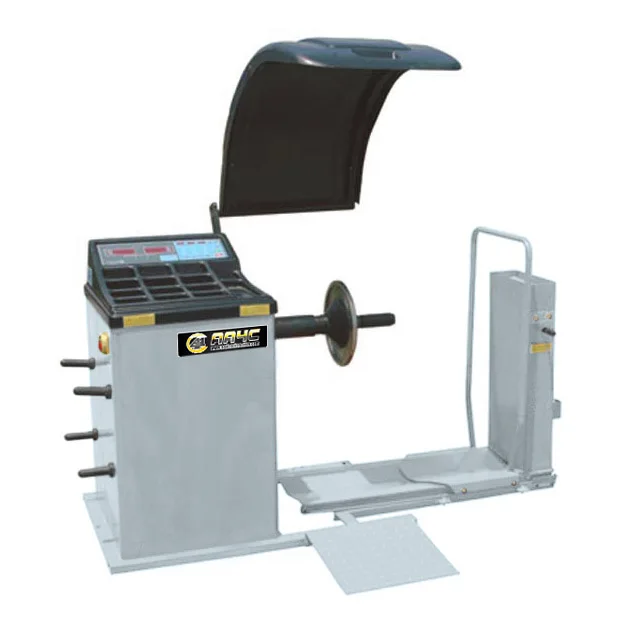

2.  Wheel balancer:

3. Tire changer :

4. Rim Straightening machine



Company Information

1.AA4C have full range of garage equipments.



You can buy most items in AA4C related to garage equipments to save your energy to purchase everywhere.



2.AA4C main products :



1)car lifts(1 post ,2 post ,4 post,scissor lift,etc)



2)tire changer(car tire changer,truck tire changer,semi-automatic,full-automatic)



3)wheel balancer(car wheel balancer,truckwheel balancer,semi-automatic,full-automatic)



4)Wheel alignment(commercial ccd Wheel alignment,commercial zigbee wheel alignment,3D wheel alignment, truck wheel alignment)



5)Our featured product rim straightening machine is the most popular in a lot of countries.



Other products such as spraybooth,cleaning machine,brake lathe,tire vulcanzier,Nitrogen inflator,A/C handling machine,fuel injector cleaning machine,welding



machine,hydraulic tools,etc...... Pls visit our website aa4cautomotive.com for more items!



3.Easy way to submit the order !



You can submit the order list in our website aa4cautomotive.com ,after we get the list ,we will issue the PI to you to save your time!



4.AA4C quality management:



To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and the CE certification. All of our



products are 100% inspected before shipment.Our whole manufacturing processes are under a very serious and strict system in our company.





5. AA4C services:



To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied.





6.AA4C products warranty:



We provide 12 months trouble-free warranty and online support for all of our machines. We will provide the service forever. We are standing by for any of the quality problems.

Our Services

1. 1%  of  order amount free parts for replacement.

 2.  1 year warranty since conatiner arrive port of destination .

 3.  2 post lifts, alignment lifts, parking lifts, mid-rise lifts, scissor lifts, and high-rise lifts are warranted for five (5) years on structural components and one (1) year on electric or air / hydraulic power units and cylinders effective since date of  arrive port of destination.

4. Any parts which broken for quality reason will be replaced via courier within 1 week.

If any question you can find 24 hours 365 days at:

Mob: +8618017229377

Skype: zhudeping82328

Trade Manager:aa4cautomotive

Wechat: 008618017229377

Whatsapp: 008618017229377

Linkedin:  008618017229377

FAQ

1. Why should I choose AA4C car lift?

There are several reasons you should strongly consider purchasing AA4C  Lift:

Top raw materials from only the finest plants
Only professional cost-effective equipment
Low prices with high quality revenue producing products
Increase productivity for your customers( Your customers gain more, they will enjoy buying from you.)
The best customer service. Quick reply within 24 hours and more.
Great Warranty



2. How safe are AA4C 2 post car lift?

Our 2&4 post lifts have been tested and CE certified for safety . They also meet the American
and Australian Standard.



3. Should I keep repair and replacement parts in stock?

Yes, most all commonly required repair and replacement parts should always keep in stock.



4. What type of fluid is required for my 2 post car lift?

We recommend use of a SAE10 hydraulic fluid that meets an ISO 32 specification, approximately 3 gallons / 12L are required.



5. Are AA4C car lift designed for commercial use?

All of our lifts can be used in commercial applications without any problems.



6. Do you offer any custom designs?

Yes,AA4C provide OEM/ODM services to top range partners.Produce a superior product for you by your designs.
