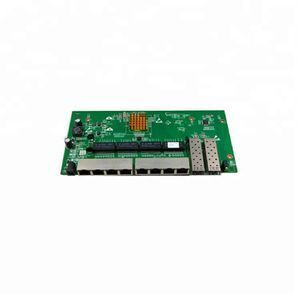

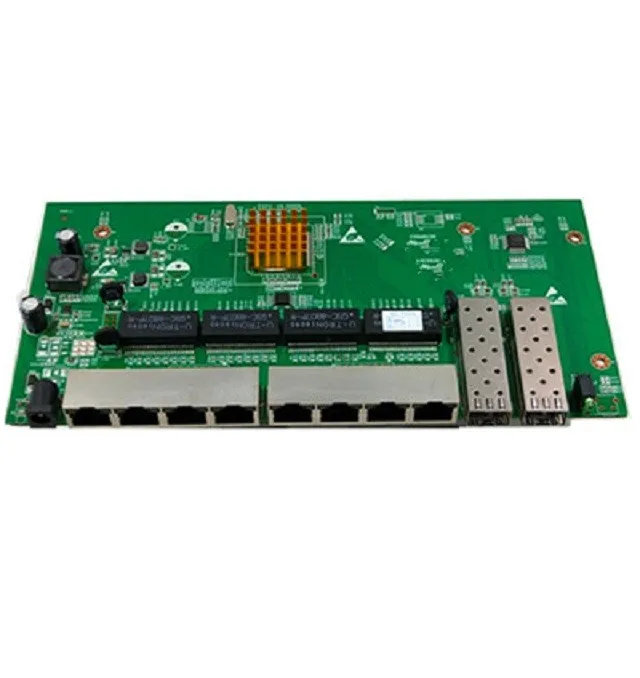

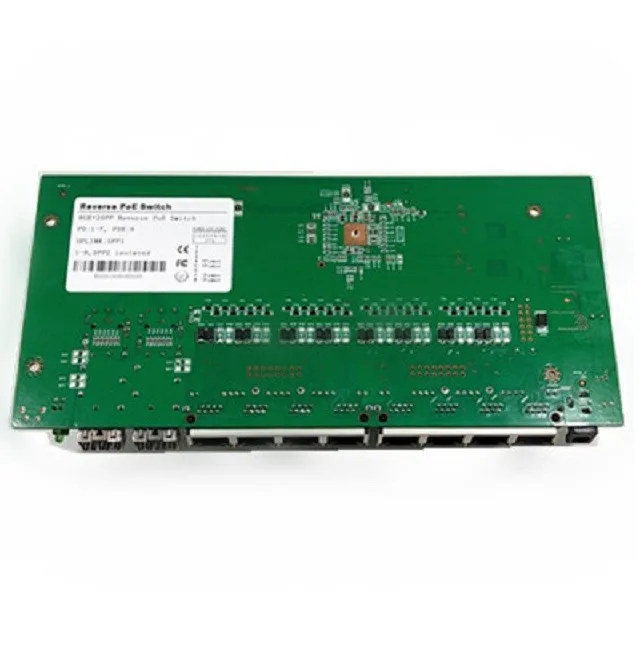

GPON/EPON ONU Solution 8 Port Gigabit Ethernet Reverse POE Network Switch with 2 Gigabit SFP slot For outdoor

Introduction:
ES1000-8GPD-2F Reverse PoE Switch with 7-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit SFP Fiber Ports and 10/100/1000Mbps Fast Ethernet network capabilities. Port1-7 for PoE In, Port 8 and 2 SFP can do Uplink port ,Support 24-48V Passive PoE compliant PSD and PD.

Features:
1. With 7 reverse incoming poe ports, 1 RJ45 and 2 SFP uplink port
2. Support fixed vlan, No.1 port to No.7 port can not communicate with each other, but they all
can communicate with No.8 port and two SFP port
3. Working with 24-48vdc reverse poe compliant PSE, expands LAN network
4. Output 12vdc power supply via dc jack, which can be supplied to ONT
5. 4kv surge protection for outdoor application
6. Support Green Ethernet

What This Product Does
ES1000-8GPD-2F Reverse PoE Switch with 7-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit SFP Fiber Ports and 10/100/1000Mbps Fast Ethernet network capabilities. Port1-7 for PoE In, Support 24-48V Passive PoE compliant PSD and PD, 2Gigabit SFP can do Uplink Port.

How This Product Works
8 Auto-Negotiation RJ45 ports (port-1 to port-7) of the switch support Power over Ethernet (PoE) function. These PoE ports (port-1 to port-7) can automatically detect and accept power with those IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, .

Easy To Use
ES1000-8GPD-2F is easy to install and use. It requires no configuration and installation. With outstanding performance and quality, the ES1000-8GPD-2F is a great selection for expanding your home or office network.

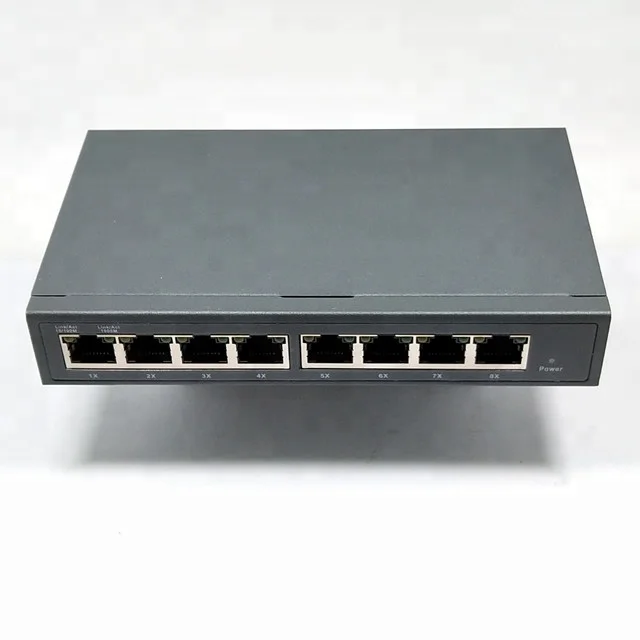

8 port 10/100/1000Mbps POE switch

8x10/100/1000Mbps RJ45

8 port POE+ compliant with IEEE802.3af/at

support Hikvision and Dahua IP camera

with 120watts power supply

24 port poe switch with 2xGigab combo

8 port full gigabit managed switch

8x10/100/1000Mbps RJ45 +2x1000Base-x SFP

support web GUI management

based on port vlan and 802.1q VLAN

port mirror, link aggregation

802.1p QOS

bandwidth control, speed limitation

loop prevention, loop detection

8x1000base-x SFP optical fiber slots + 2xGE RJ45

support IEEE 802.3U, IEEE 802.3X, IEEE 802.1d protocol

Ethernet 10Base-T or 100Base-TX to 100Base-FX fiber media converter
