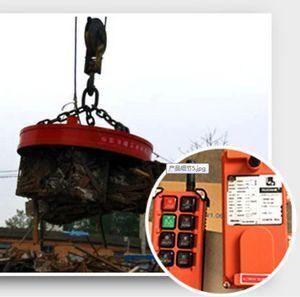

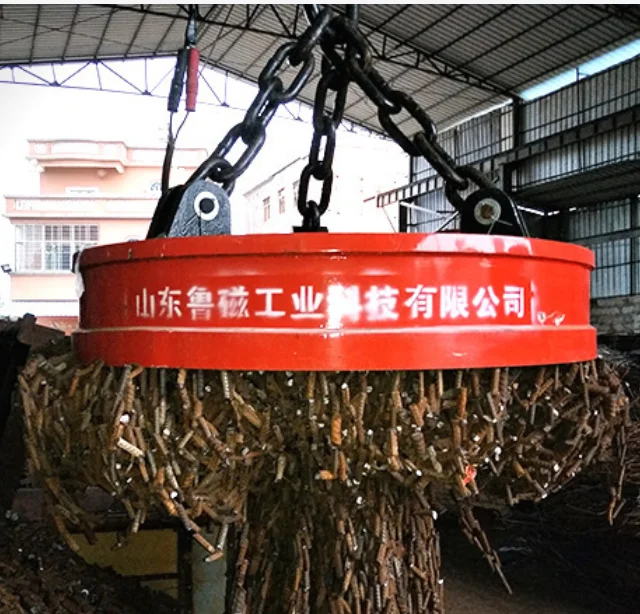

hot sale electric crane metal handle lifting magnet for lifting iron metal scrap

Click here to contact

Product details

Cold-state Power:	3.3KW-33.9KW;	Package Type:	Wooden Box for hot sale electric crane metal handle lifting magnet for lifting iron metal scrap;
Place of Origin:	Shandong China;	Cold-state Current:	15A-154A;
Condition:	New;	Rated Voltage:	DC -220V;
After Warranty Service:	Video technical support,No service,Spare parts;	Certification:	ISO9001&CE;
Warranty:	1 year;	Showroom Location:	None;
Local Service Location:	None;	Dimension(LWH):	Accept Customised;
Heavy Ingot:	2500KG-23000KG;	Single gross weight:	68 KG;
Turn-on Duration Rate:	70%;	Package Preview:	https://sc01.alicdn.com/kf/H1af0b897735943cdaa7df4bfcb0d62877.jpg_640x640.jpg;
Product Name:	Lifting magnet;	Shape:	Circle;
Brand Name:	LUCI;	After-sales Service Provided:	Online support;
Single package size:	150X10X20 cm;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ,Energy & Mining;
Selling Units:	Single item;	After-sales Service Provided:	Engineers available to service machinery overseas;
Colour:	Accept customized;

Hot sale electric crane metal handle lifting magnet for lifting iron metal scrap

Product Description

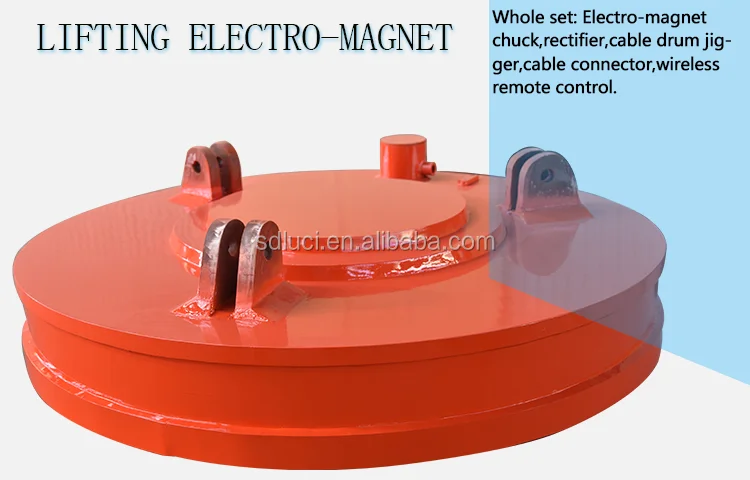

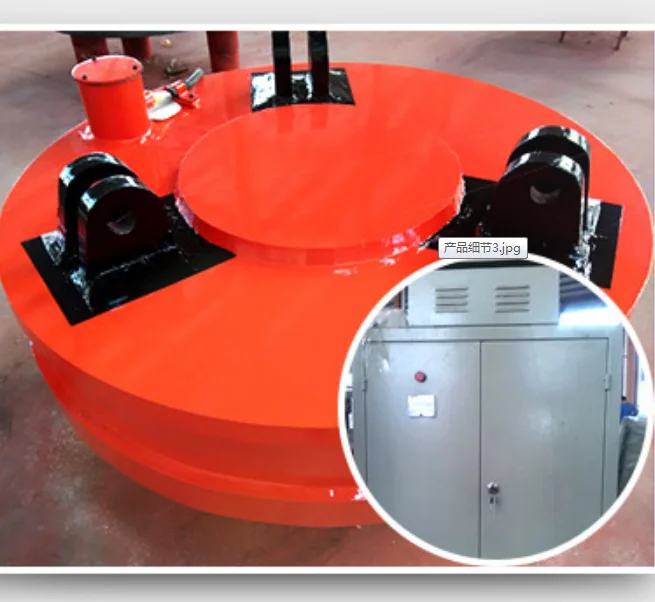

Whole set: Electro-magnet chuck,rectifier,cable drum jigger,cable connector,wireless remote control.

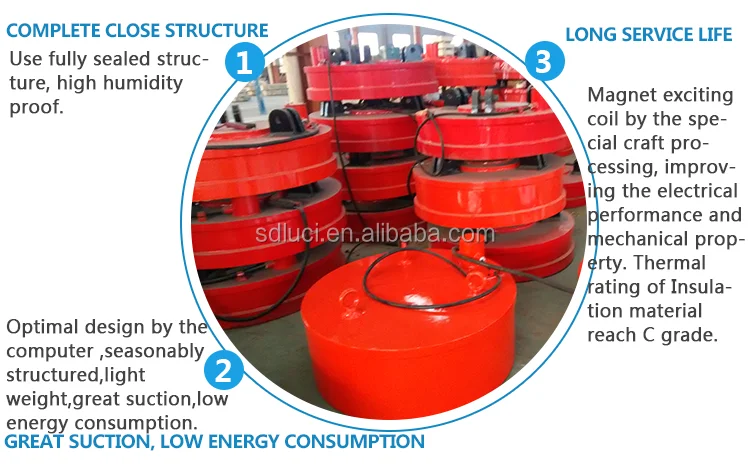

Complete close structure: use fully sealed structure, high humidity proof.
Great suction, low energy consumption:optimal design by the computer ,seasonably structured,light weight,great suction,low energy consumption.
Long service life: magnet exciting coil by the special craft processing, improving the electrical performance and mechanical property. Thermal rating of Insulation material reach C grade.
Energy efficiency: usually use constant voltage, also choose strong excitation control (DC-290V/220V) and constant current power.It can improve lifting force, save energy and improve economic performance.
Easy to install,operate and maintain

Produc Specification

Model		MW5-110L/1-75	MW5-130L/1-75	MW5-150L/1-75	MW5-165L/1-75	MW5-180L/1-75	MW5-210L/1-75	MW5-240L/1-75	MW5-250L/1-75

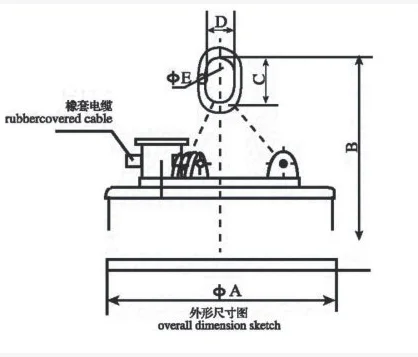

Overall dimension (mm)	A	1100	1300	1500	1650	1800	2100	2400	2500
	B	1270	1290	1360	1690	1650	1900	2100	2260
	C	220	250	350	370	370	400	450	450
	D	150	175	210	230	230	250	280	280
	E	45	50	60	75	75	80	90	90
Weight (kg)		1500	2280	3175	3840	4690	7810	10115	11100
Constant voltage control mode	Current in cold state (A)	27.6	40.7	51.4	55.6	73.9	98.5	117.6	185
	Consumption power in cold state (KW)	6.07	8.95	11.3	12.2	16.3	21.7	25.9	40.3
	Lifting capacity for impact ball (kg)	6500	8500	11000	12500	14500	21000	--	--
	Lifting capacity for packed pig irons (kg)	1000/800	1400/1100	1900/1500	2300/1800	2750/2100	3500/2800	4800/3800	5600/4500
	Lifting capacity for packed steel cuttings (kg)	450/400	700/600	1100/900	1300/1100	1600/1350	2200/1850	2850/2250	3500/2650
Strong excitation mode	Current in cold/hot state (A)	36.4/16.2	53.7/23.9	69.8/30.1	73.3/50.6	97.4/54	129.8/57.8	155/67.2	244/126
	Consumption power in cold/hot state (KW)	10.6/3.24	15.6/4.8	19.7/6.02	21.3/10.1	28.2/10.8	37.6/11.6	45/13.4	70.8/27.7
	Lifting capacity for packed pig irons (kg)	1050/900	1500/1250	2000/1700	2500/2100	2900/2400	3700/3100	5000/4200	6000/4850
