RCH series hollow plunger hydraulic jack 20ton 100ton 200ton 300ton electric hydraulic jack
- 90.00 >=10 pieces
| Supply Ability: | 1000 Piece/Pieces per Month; | certification: | ISO9001:2000; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | capacity (Load): | 100T; |
| Place of Origin: | Zhejiang China (Mainland); | Packaging Detail: | wooden carton; |
| type: | hollow jack; | Port: | ningbo or shanghai; |
| colour: | yellow or red; |

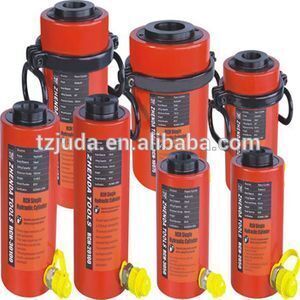

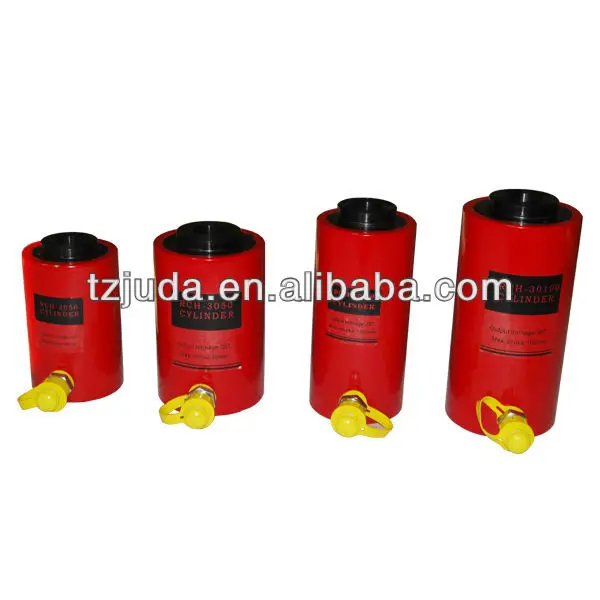

RCH series hollow plunger hydraulic cylinders
Features:
1 .stable quality ,lowest price and considerate service;

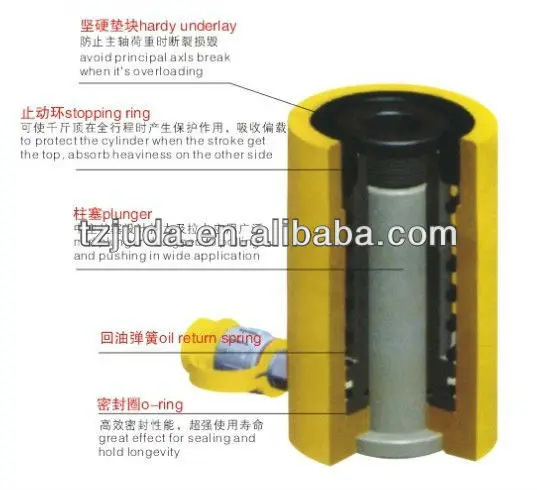

2. Spindle possesses automatic retraction function;
3. Painted surface corrosion and beautiful;

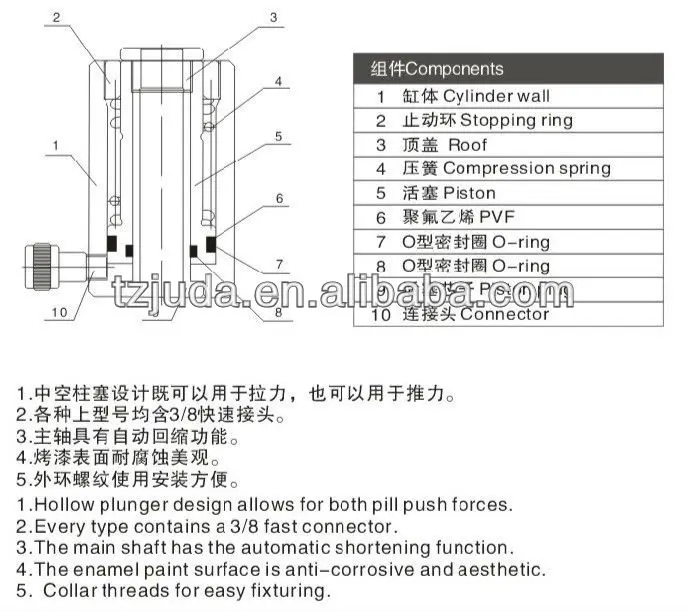

4. The Hollow plunger cylinders allows for both pull and push forces.
5. Every type contains a 3/8 fast connector.
| Item No. | RCH-2050 | RCH-20100 | RCH-3050 | RCH-30100 | RCH-6050 | RCH-60100 | RCH-10075 |
| Output(T) | 20 | 20 | 30 | 30 | 60 | 60 | 100 |
| Stoke(mm) | 50 | 100 | 50 | 100 | 50 | 100 | 75 |
| Effective area(cm2) | 22.9 | 22.9 | 36.29 | 36.29 | 67.89 | 67.89 | 94.98 |
| Oil Capacity(L) | 0.16 | 0.32 | 0.25 | 0.5 | 0.45 | 0.9 | 1.2 |
| Height of products(mm) | 153 | 217 | 153 | 217 | 164 | 231 | 254 |
| Extended height(mm) | 214 | 328 | 214 | 328 | 225 | 342 | 340 |
| Outside(mm) | 98 | 98 | 115 | 115 | 155 | 155 | 180 |
| Bore die(mm) | 73 | 73 | 88 | 88 | 125 | 125 | 140 |
| Principal Dia(mm) | 54 | 54 | 68 | 68 | 93 | 93 | 110 |
| Thead for input oil-port(ZG) | 27 | 27 | 34 | 34 | 54 | 54 | 79 |
| Saddle protrusion form plgr(mm) | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" |
| Weight(kg) | 7.2 | 10 | 10 | 13.4 | 17.2 | 23.2 | 41 |
Primary Competitive Advantages:
1), Our company has several years’s experience in producing kinds of hydraulic cylinder, we have the self-operated importing and exporting rights.
2), All products are approved by ISO9001:2008 and CE approved.
3),We can produce the hydraulic tools according to our customer’s requirement.
4), We insist to popularize our brand “Zhenda” to our customers , and welcome to become our sales agency ,
We’ll give our customer the special prices once the customer become our approved agency
