Model YS 10000psi construction air hydraulic cylinder for use with 700bar single acting hydraulic jack.

Supplier: Yantai Winner Electronic & Mechanical Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Jerry Li
Price: $30.00 / >=20 sets
Min. Order: 20 sets

Click here to contact

Product details

maximum. pressure:	700 bar/10000 psi	Customization support:	Processing
product name:	Hydraulic cylinder	Minimum order quantity:	20 pieces
Certificate:	CE/ISO9001	Warranty:	1 year
capacity:	5-100 tons	Stroke:	15-406mm
Package:	carton	model:	YS
Place of origin:	Shandong Province, China	Cylinder type:	Tie rod cylinder
port:	Qingdao/Shanghai/Guangzhou/Ningbo	Material:	steel
Supply capacity:	500 sets per month	Packaging details:	Standard export packaging, carton
payment terms:	L/C, Western Union, T/T

Product Description

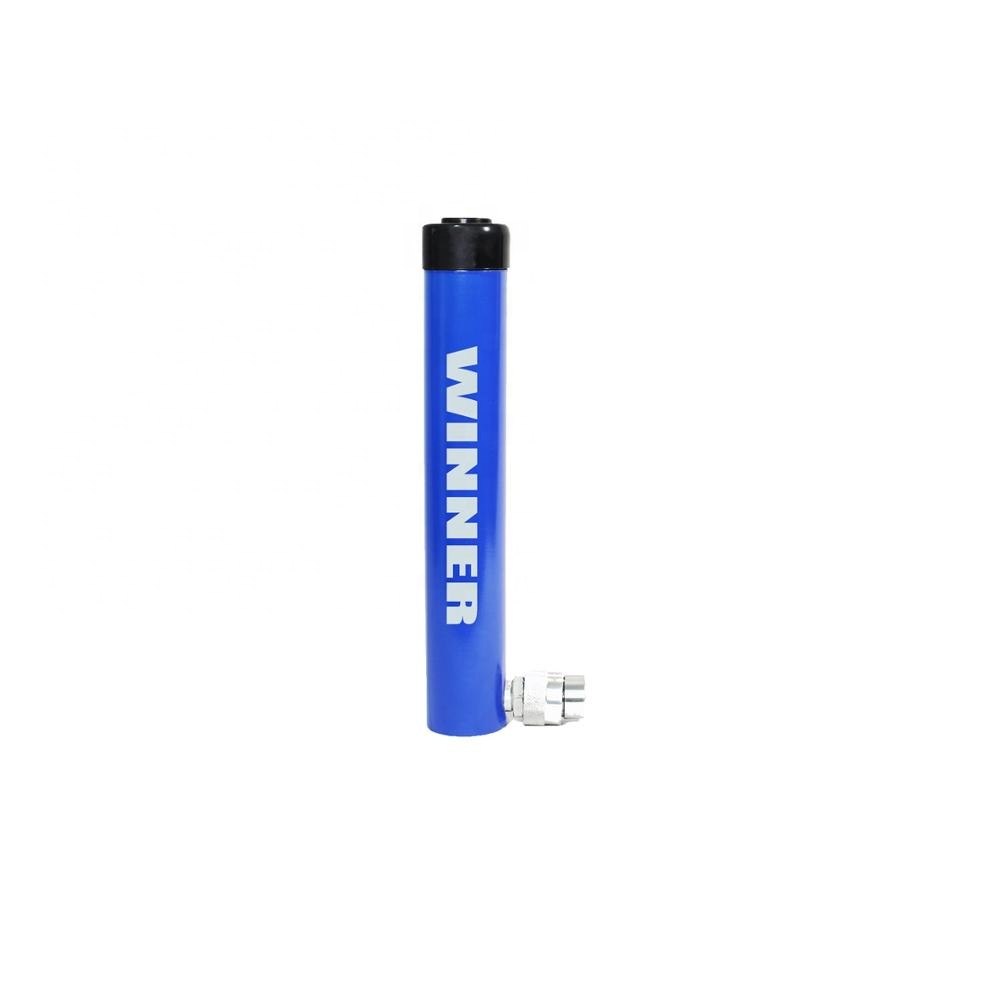

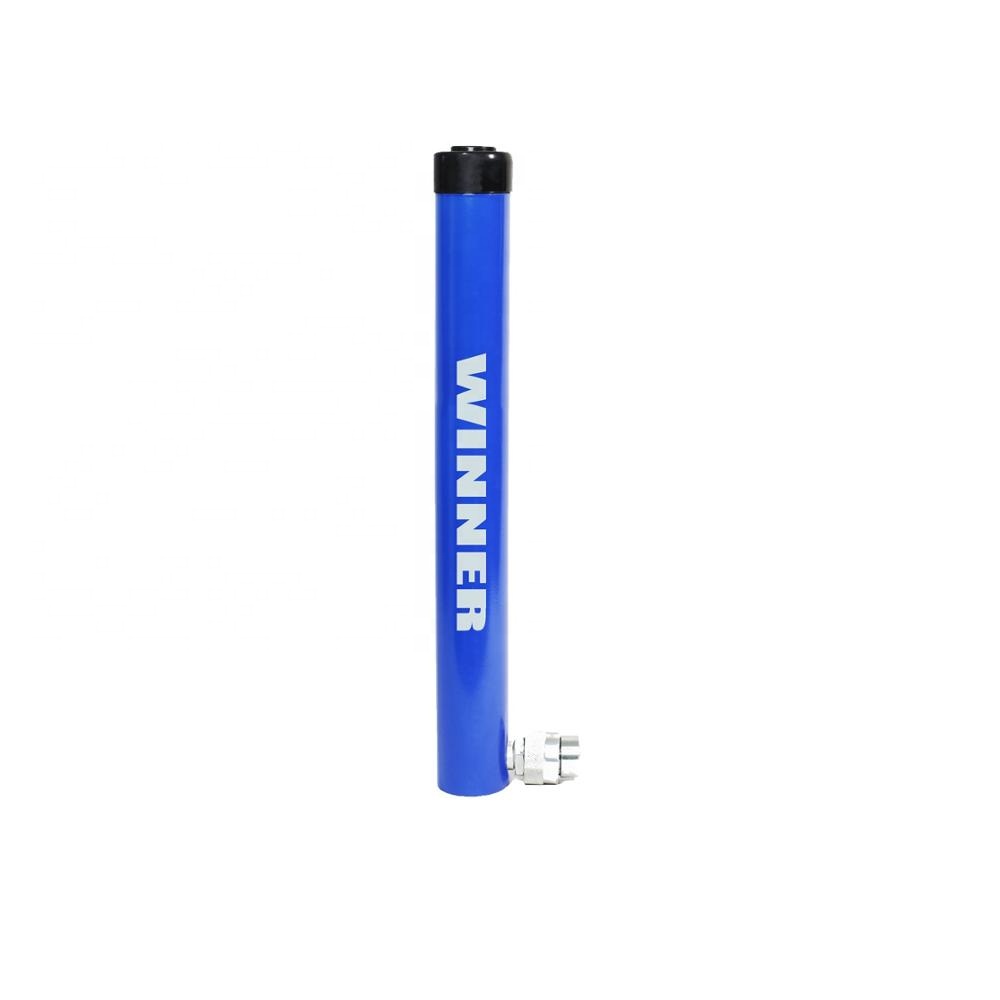

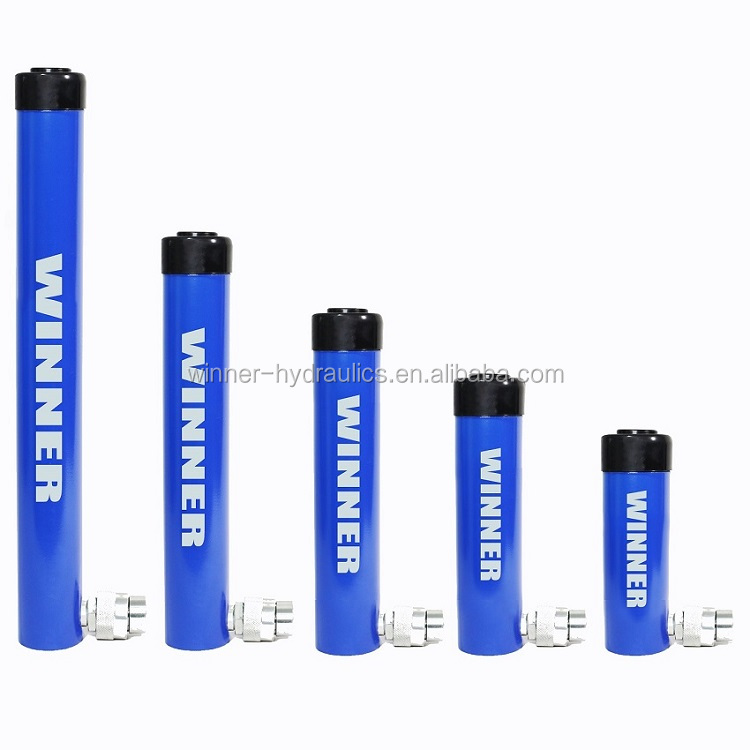

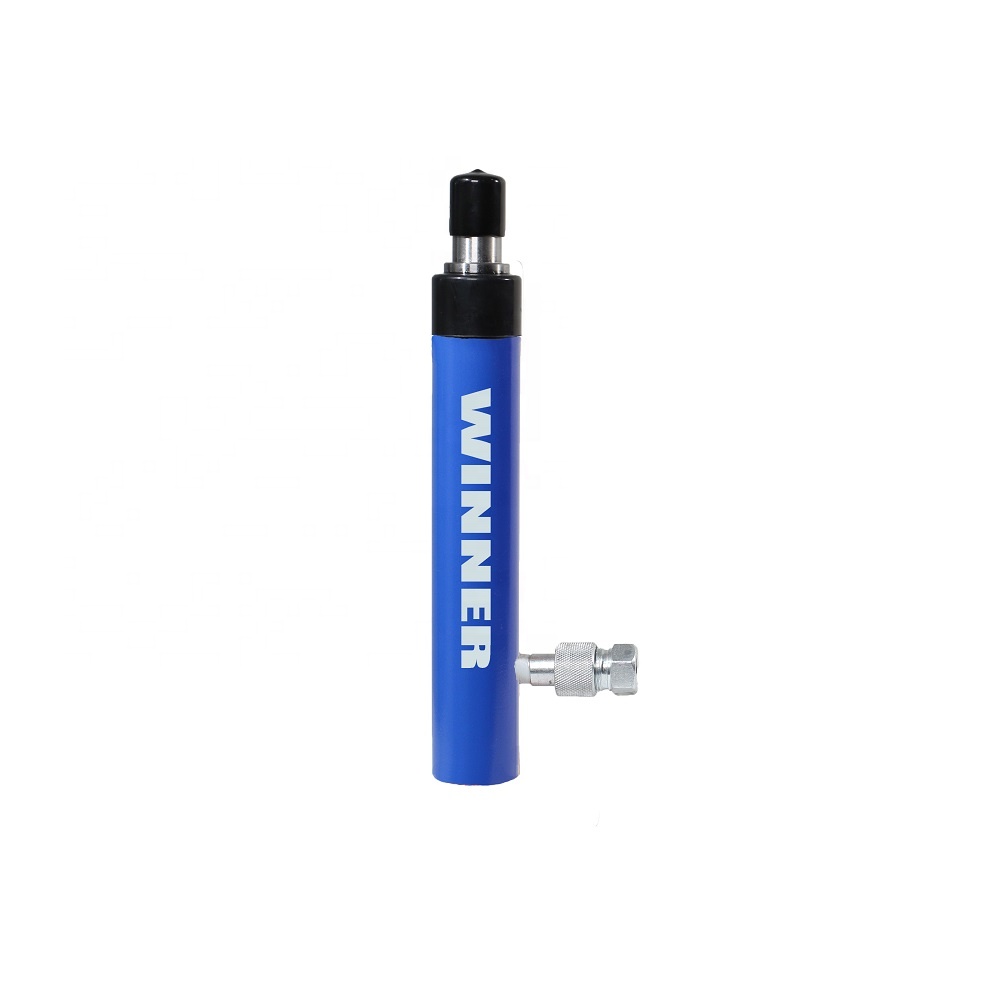

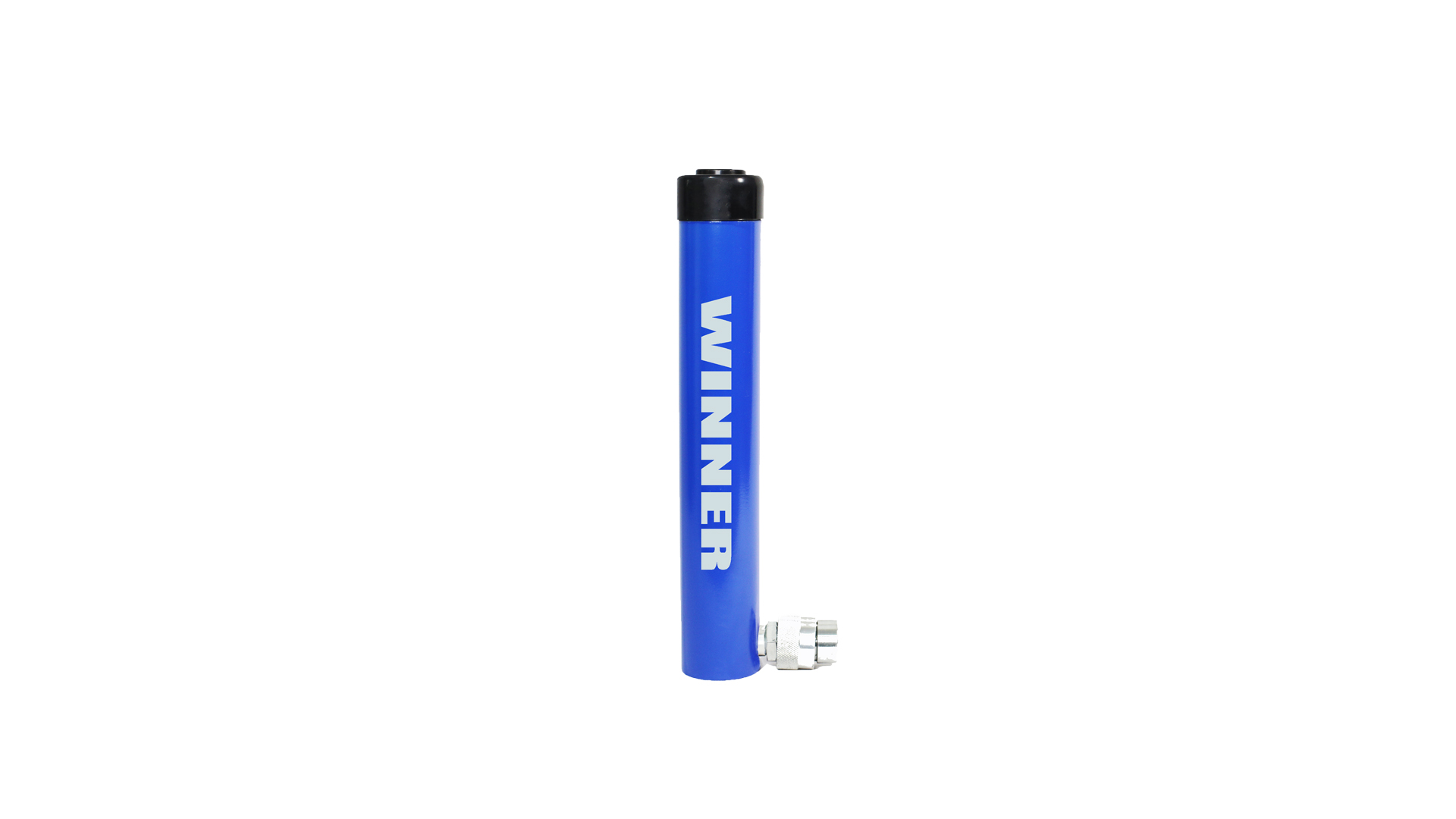

YS series universal cylinder

Single acting, spring return

Production capacity 5-100 tons

0.63-14.17" travel

maximum. Pressure 10,000 psi (700 bar)

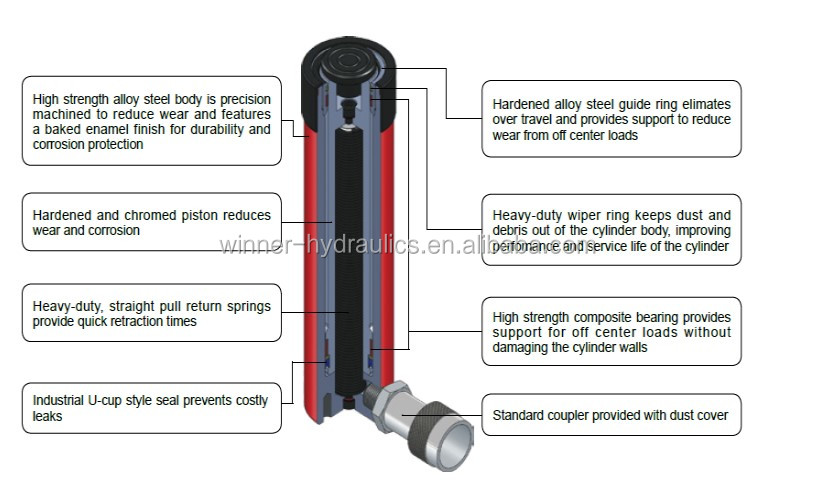

feature:

1. Collar retaining threads, plunger threads and bottom mounting holes provide simple fixing.
2. Different installation accessories greatly expand the application possibilities.
3. Specially designed cup seal with stable performance and durability.
4. High-strength alloy steel body, sturdy and durable, with long service life.
5. Heavy-duty return spring provides fast and stable retraction.
6. Chrome plated pole prevents rust and corrosion.

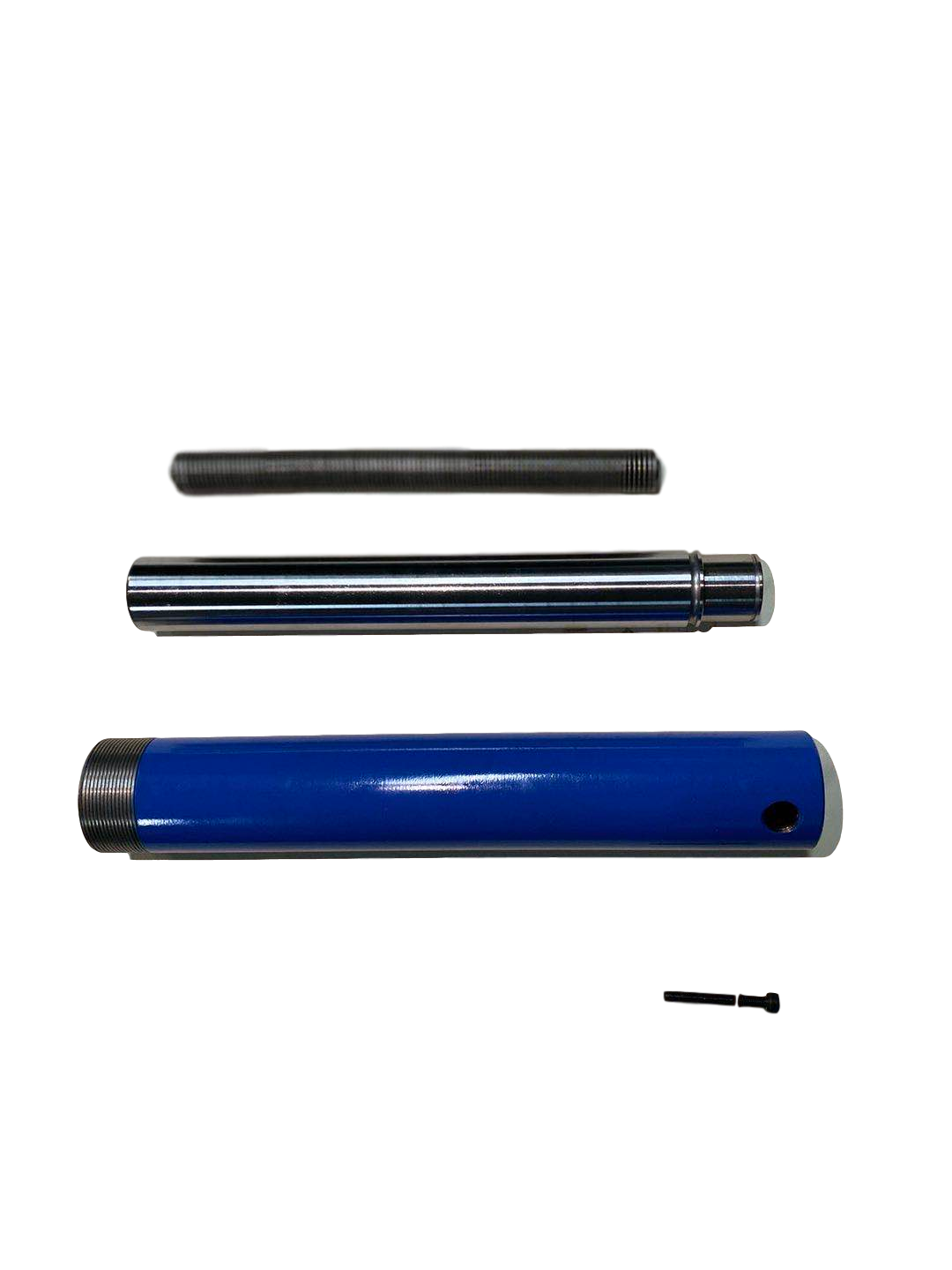

detailed picture

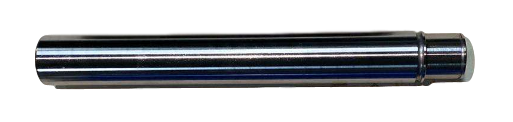

High strength chrome plated piston rod

After tempering and high-frequency heat treatment, it has high strength and hardness, and the thick chromium layer can prevent
Wear and corrosion.

High quality return tension spring

The tension spring made of 55CrSi can ensure long-term operation without deformation or breakage.

Cylindrical thread

The external thread of the cylinder, the plunger thread and the base mounting hole ensure reliable and convenient installation.

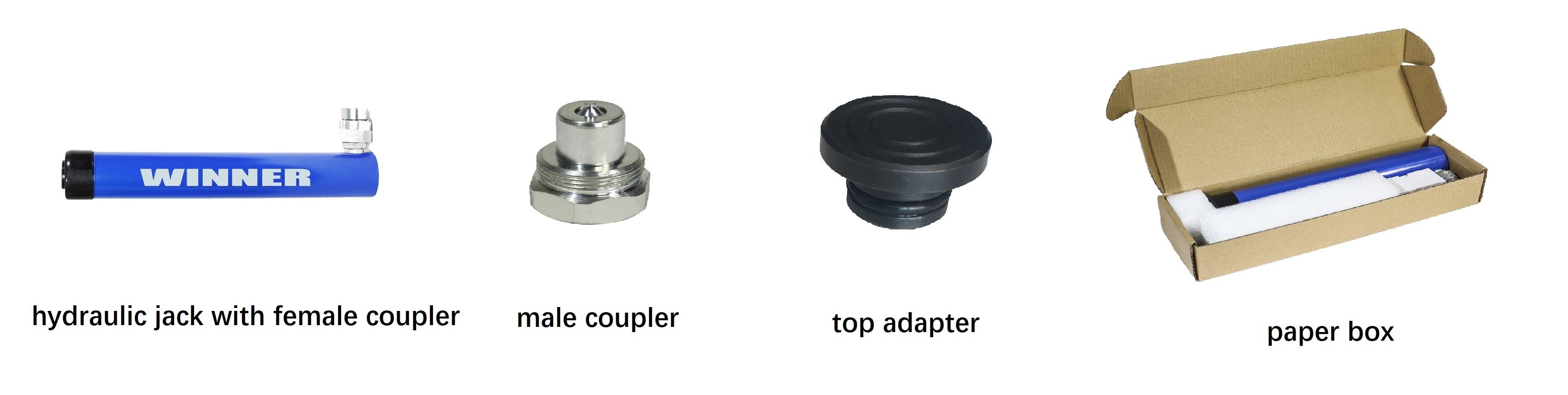

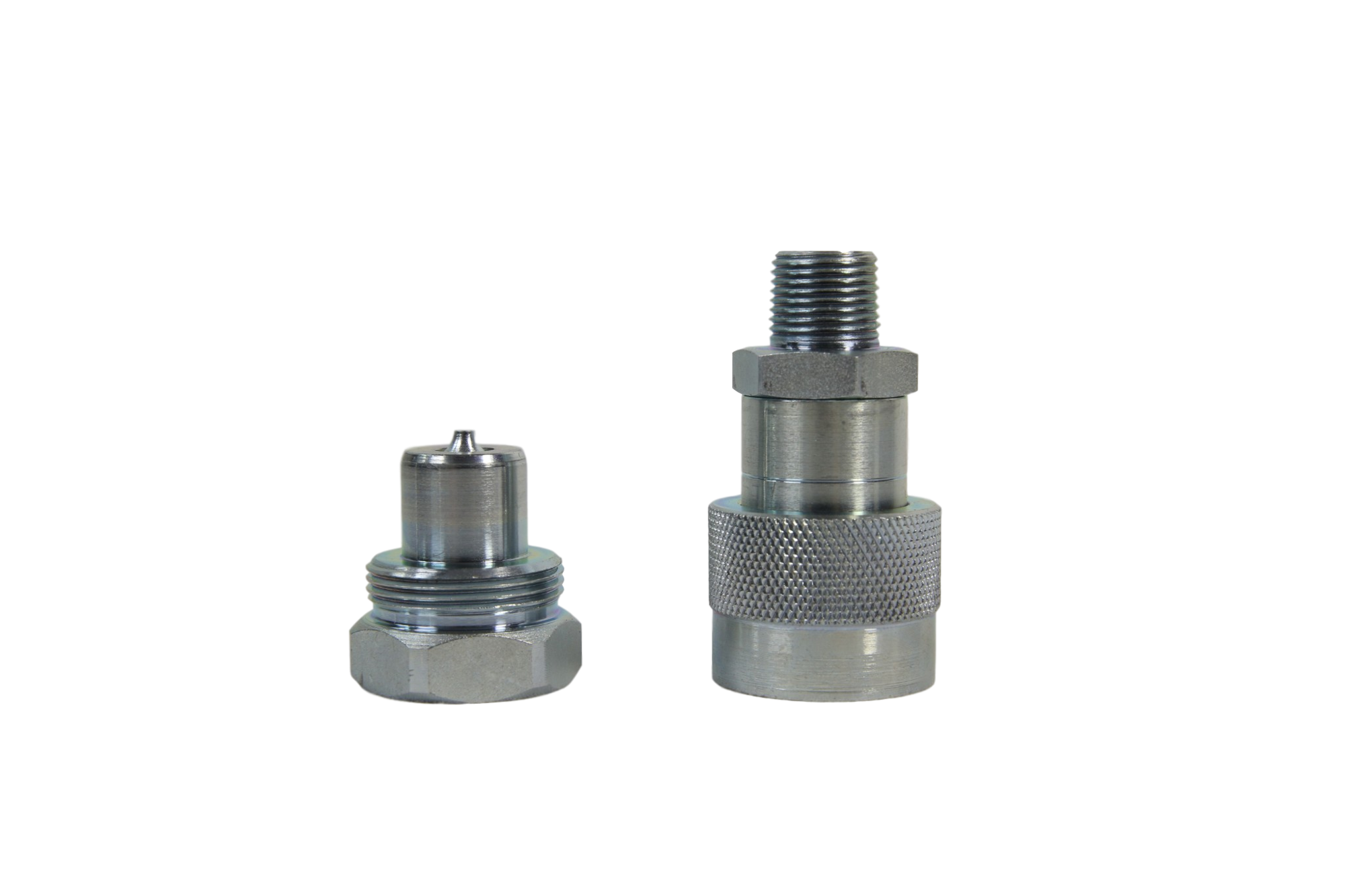

Quick Connector

Included on all models.
Fits all HC series hoses.

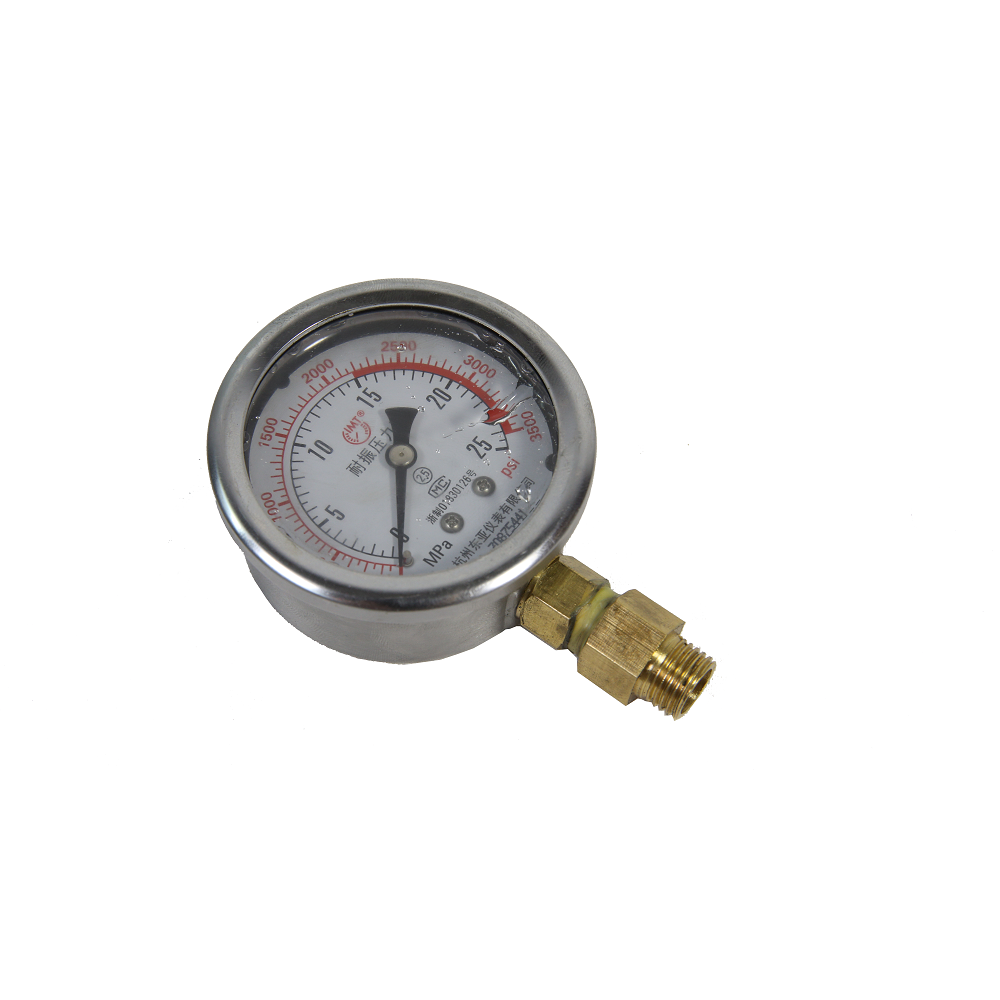

meter

Minimize the risk of overload and ensure long-term, reliable service from your equipment. See the System Components section
Applicable to all series of instruments.

saddle

The plug is easy to install and disassemble, the top ring groove is anti-slip design, the top is quenched, and the hardness is

HRC45-50, wear-resistant and non-deforming.

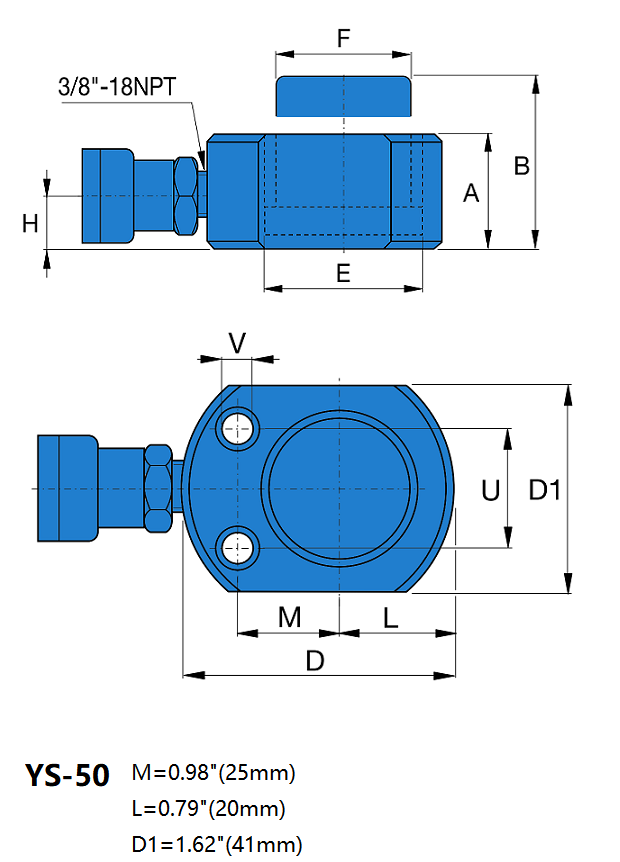

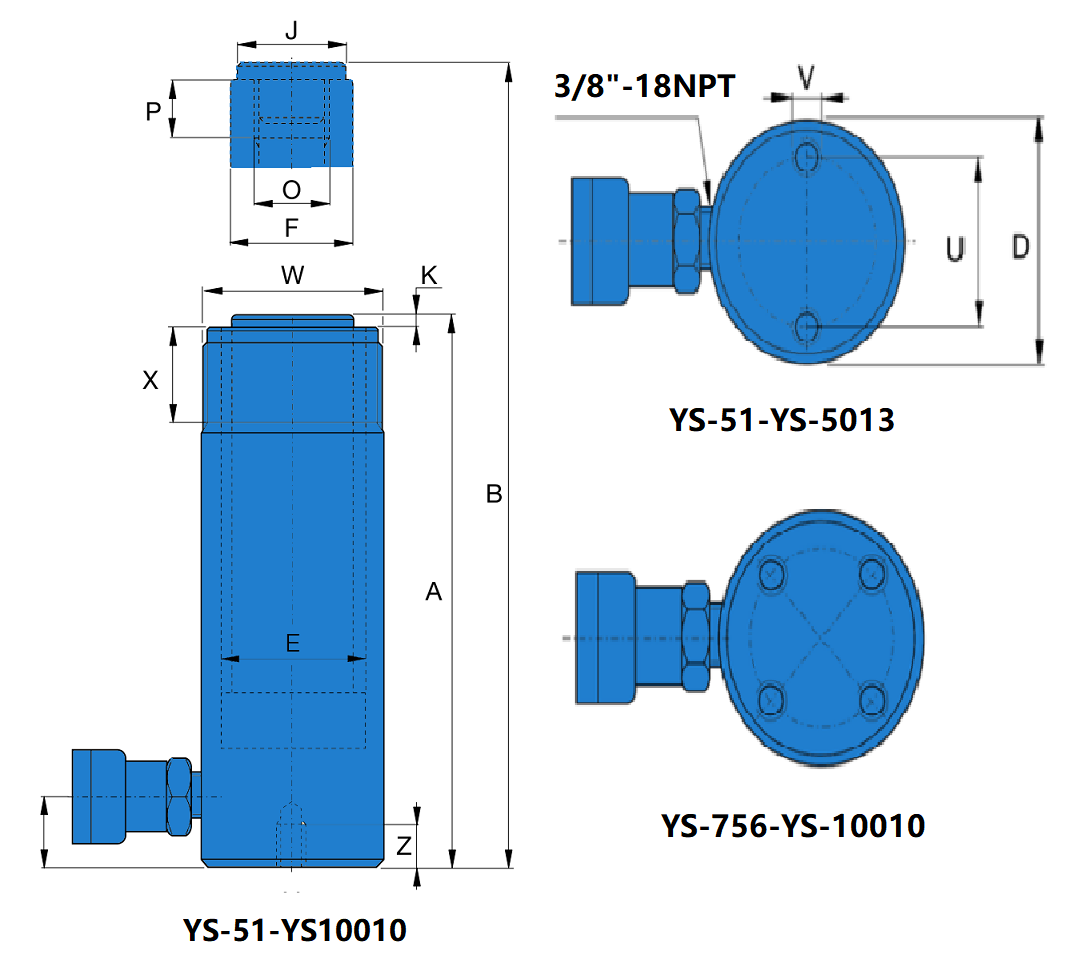

Standard sizes

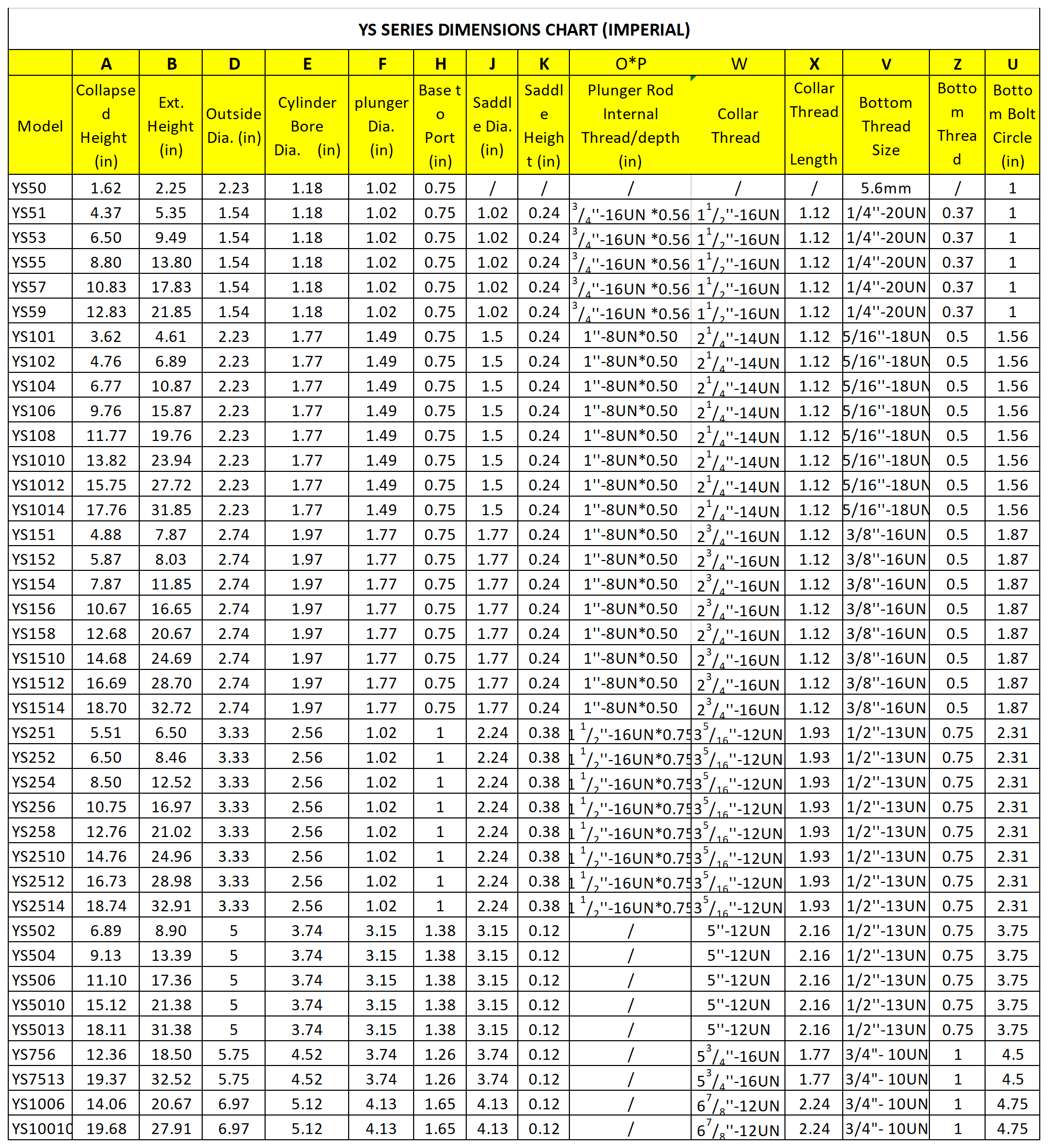

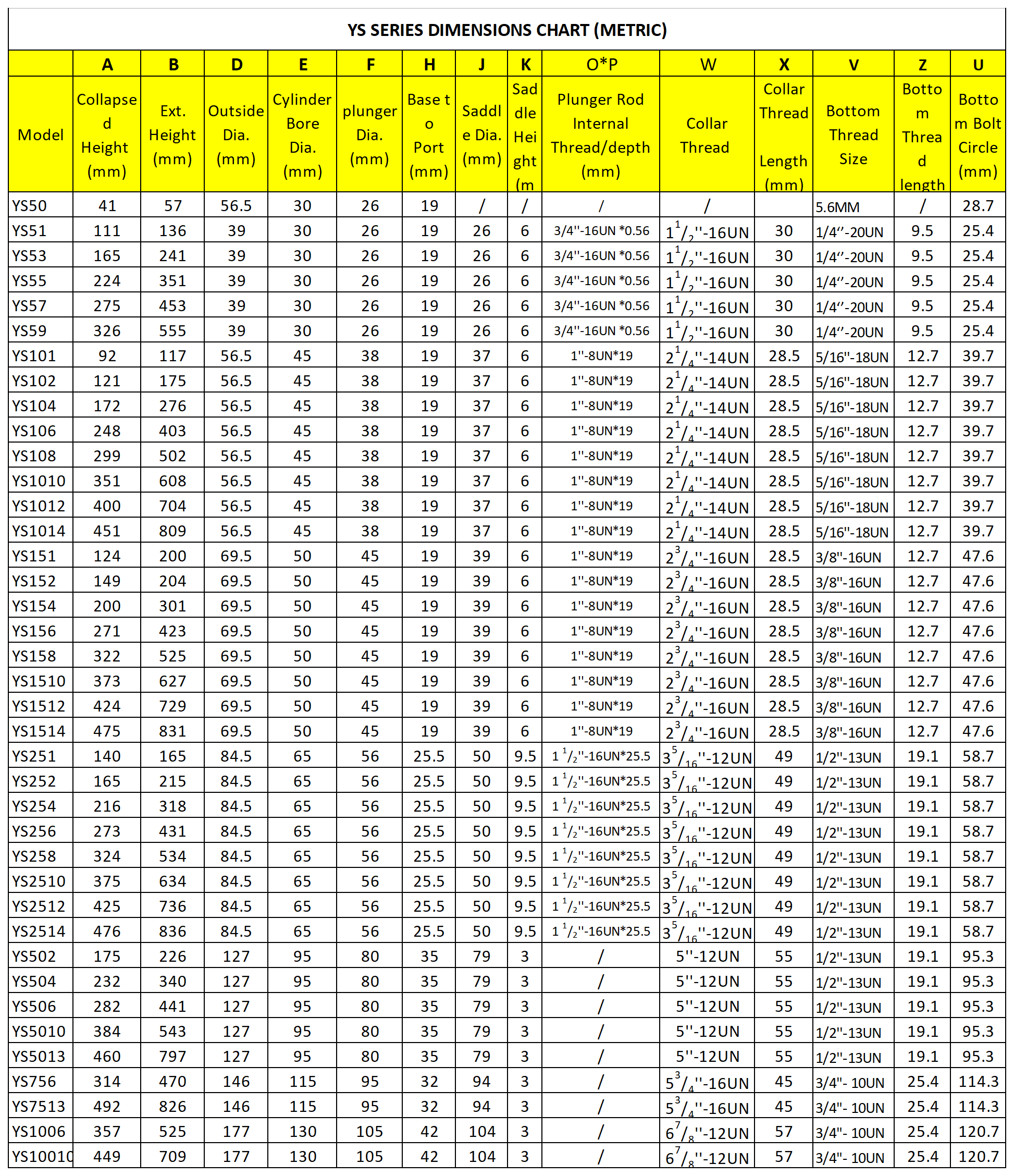

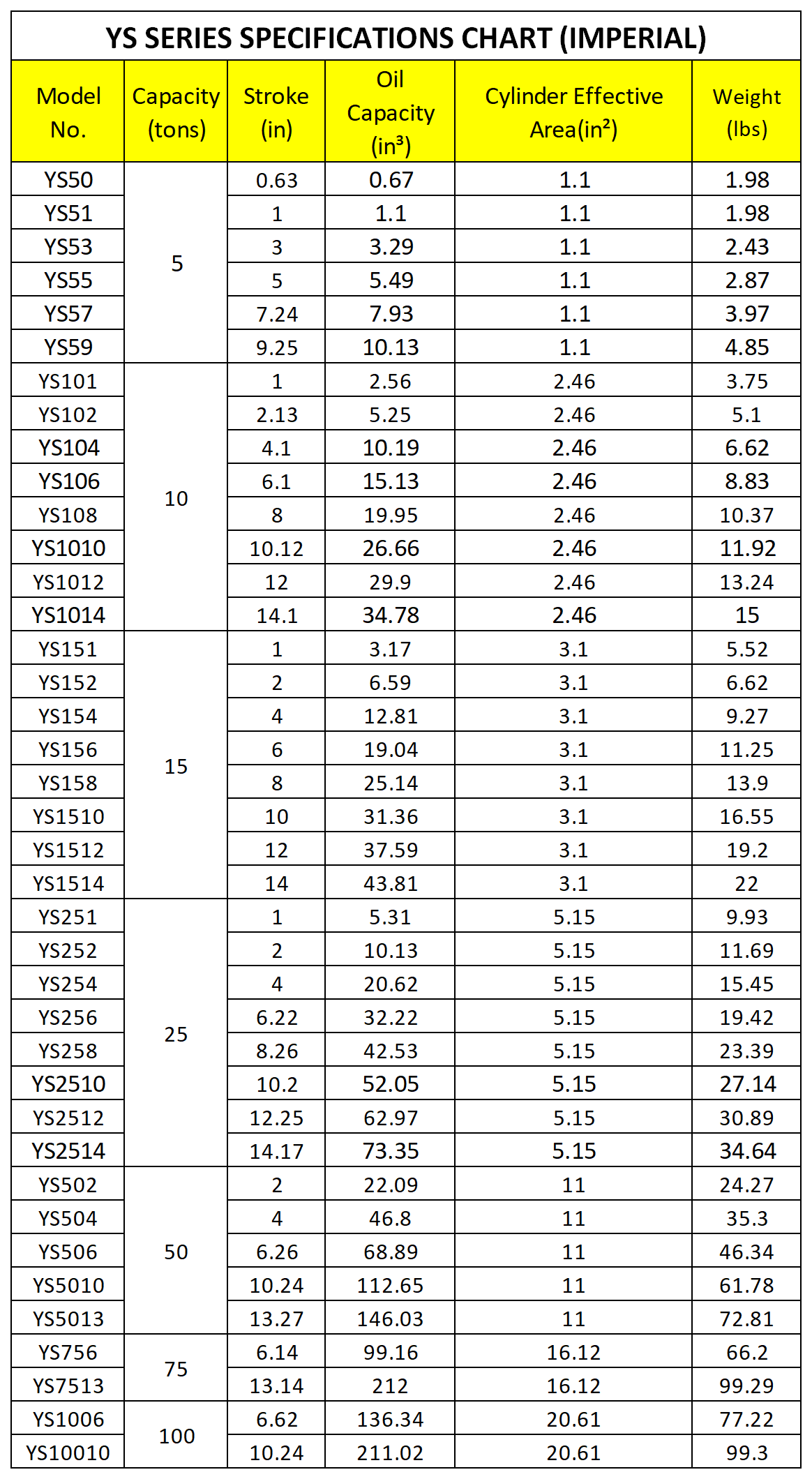

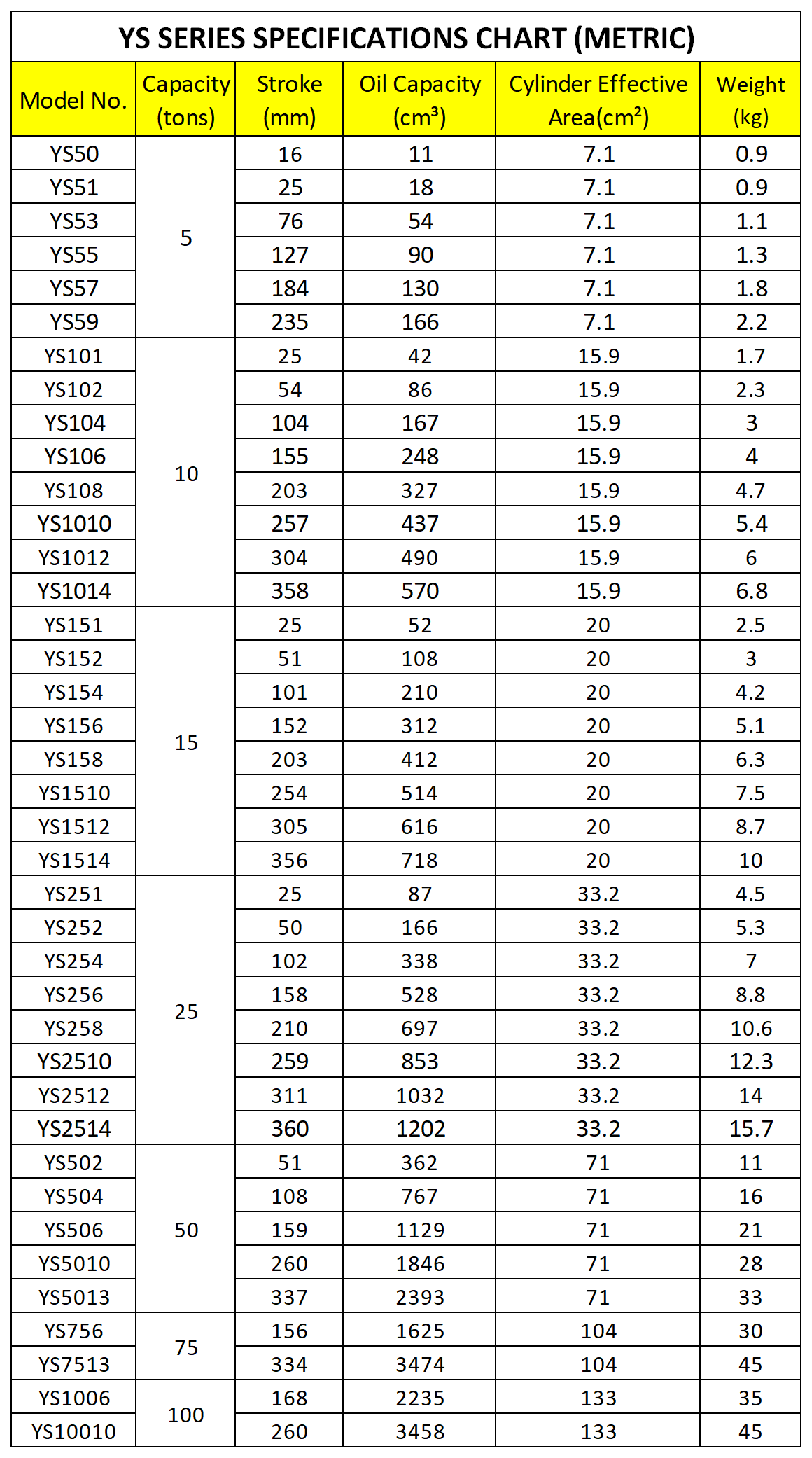

YS series general cylinder specification table

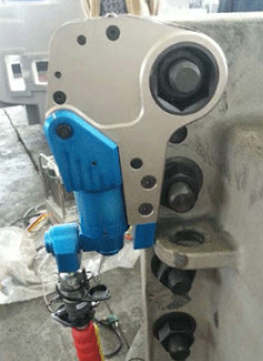

Application scenarios

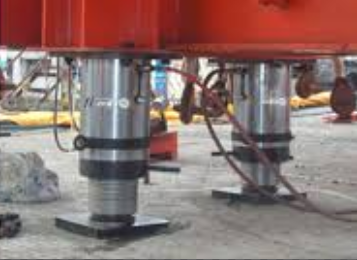

This universal single-acting cylinder has been widely used in automobile repair, lifting, mining and other mechanical fields.
equipment and hydraulic tools.
