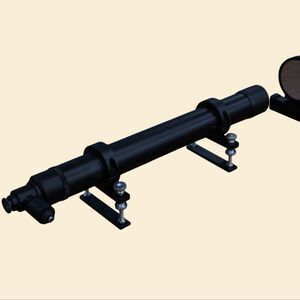

Collimator F550 measure instrument optical collimating device

Product details
Product name:optical collimating device;Shape:Spherical;
Brand Name:XingQing;Single package size:70X20X15 cm;
Structure:Double Convex;Model Number:F550;
focal distance:44mm;Single gross weight:8 KG;
Relative aperture:1:10;weight:7.5kg;
dimensions:680x150x135mm;diameter:55mm;
Usage:Optical measure;Selling Units:Single item;

Collimator F550 measure instrument optical collimating device

Product Description



Product name

collimator

Weight

7.5kg

Dimensions

680x150x135mm

Relative aperture

1:10

focal distance

44mm

diameter

55mm

Make the focal length of infinite beam through the device, this beam is called parallel light. Collimator is an important part of adjustment of optical instruments, and is also an important part of optical measuring instruments, with different reticle, along with micrometer eye lens, or microscope system, it can be used to measure the focal length of the lens group, Identify rate, and other image quality .The attached adjustment type plane mirror is fixed on the workpiece which moving straight line is inspected,  observingthrough the Gaussian eyepiece on the light pipe (which is attached to the light pipe),it can perform the linearity test of the moving workpiece.



Related Products



our company



exhibition



Certifications



Packaging



FAQ

Q: Are you manufacture or simply trading company?
A: We are the manufacture. Our factory is located in Jinshan district, Shanghai, China. All our clients, from home or abroad,
arewarmly welcome to visit us !

Q: How can I get some samples?
A: We are honored to offer you samples. Just send us your specifications and requirements, then we will send samples accordingly.
Sample charge is refundable when order is up to certain quantity.

Q: How did you test the product before they are packed?
A: Optical glass lenses are processed in the vacuum dust-free workshop, the processing technology includes material
preparation,milling and grinding, precision grinding, polishing, rinsing, edging, coating, inspection and agglutination.To
guarantee high-quality of lenses, each processing will be inspected for three times.

Q: What guarantee can you provide?
A: For equipments, our warranty is 2 years. During the period of warranty, if there are any problems with the quality, you cansend
us the photo. We will replace the new one for you after confirmation.As to designed orders, it's better for you to provide the
inspection report in one month after receiving.

Q: Can you ensure the lead time?
A: Since we are the factory, we have more advantages on the lead time when compare with other suppliers.
We can send the existing production within 5 work days. Normally designed order will take 15~30 work days for the products
youselect, We have large production capacity ,which can ensure fast delivery time even for lager quantity.
Note: Our customer service will track the product procssing until you received the goods and verify the product quality

If there is a demand, Please contact us,Thank you
