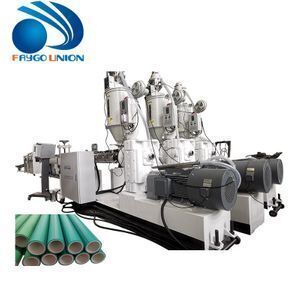

pp ppr plastic pipe making machine 20-63mm multi-layer extrusion production line for water supply

Product details
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Condition:New;
Certification:CE, ISO;Key Selling Points:Long Service Life;
Port:Shanghai port, China;Screw diameter (mm):50 mm;
Output (kg/h):50 - 80;Application:Pipe;
Power(W):55kw;Voltage:380V, 50Hz, 3 phase;
Dimension(L*W*H):24*2.5*2.2m;Gear box:Jiangyin;
Local Service Location:None;Weight:6-10T;
Pipe diameter:16-63mm;Packaging Detail:Covered by PE film;
Usage:Hot cooling water pipe supply;Warranty:1 year;
Extruder:SJ45SJ55SJ65S;Plastic Processed:PPR;
Place of Origin:Jiangsu China;Product Type:PP PE PPR pipe;
Motor:Siemens Beide Brand;Payment Terms:L/C,T/T,Western Union;
Supply Ability:40 Set/Sets per Year;After-sales Service Provided:Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Brand Name:Faygo Plast;Automatic Grade:fully-auto;
Screw Design:Single-screw;Inverter:ABB Brand;
Applicable Industries:Manufacturing Plant;Raw material:PP PE PPR Granules;
Showroom Location:None;
Product Description

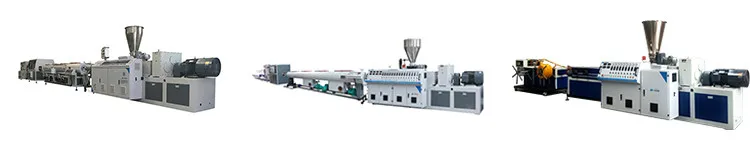

pp ppr plastic pipe making machine 20-63mm multi-layer extrusion production line for water supply

Product Application

PP-R Pipe machine is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc. purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.

Model
SJ65/30
SJ65/30
SJ75/30





more models based on your requirements
Pipe diameter range(mm)
16-63
20-110
50-160
Screw diameter(mm)
65
65
75
L/D
30:1
30:1
30:1
Motor power(kw)
37
37
55
Drawing speed(m/min)
0-10
0-8
0-8
Output(kg/h)
40-80
60-120
80-160
Total length(m)
25
25
28

Main Features

Why we produce three-layer pipe instead of single layer:
1. Reduce the production cost. Ususally middle pipe layer will use recycled material, it will reduce your raw material cost, and will not affect the pipe quality.
2. Increase the pipe toughness. Some customer will use glass fiber material in the middle layer, it will be increase the pipe toughness.

Detailed Images

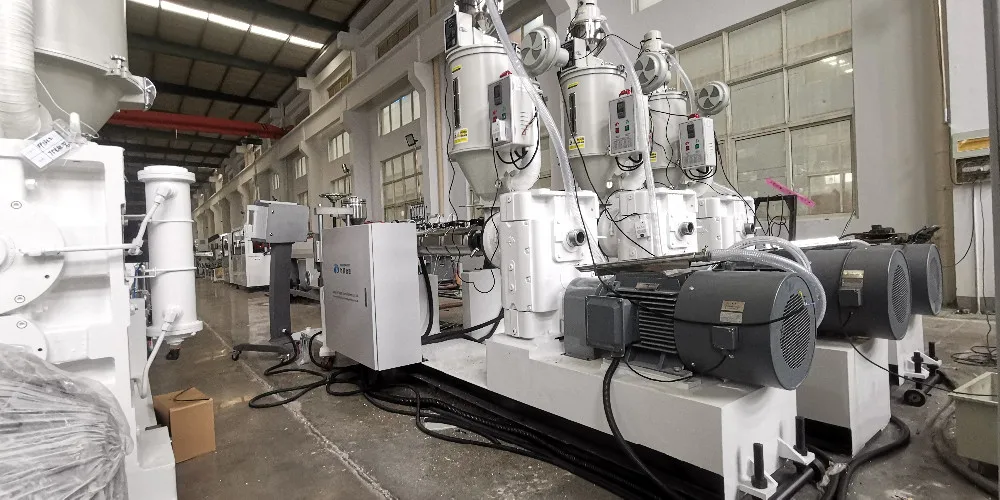

Single screw extruder

Drive motor: Siemens Beide motor

Inverter: ABB

Temperature control: Omron

Contactor: Siemens

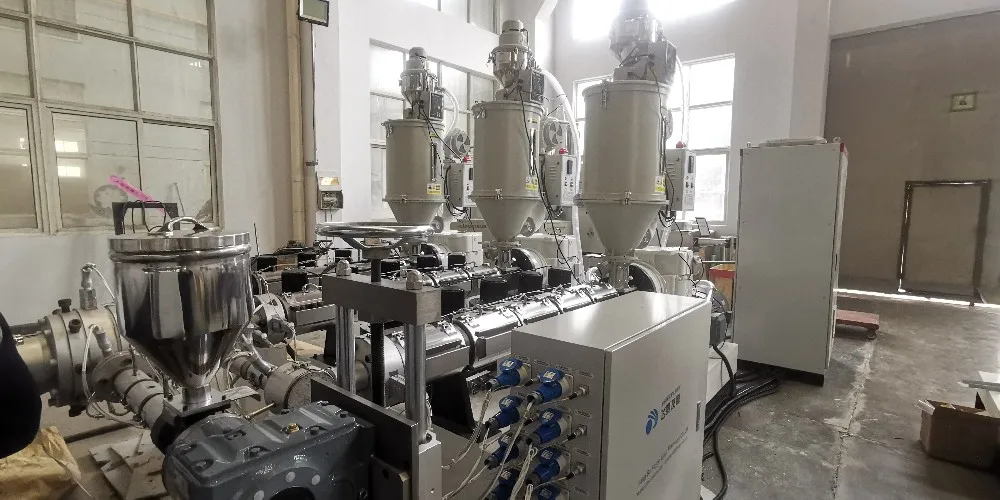

For 20-63mm three layer pipe machine, if you have specific requirement for each layer percentage, we suggest you use three extruder co-extrusion, otherwise 2 sets extruder coextrusion is enough.

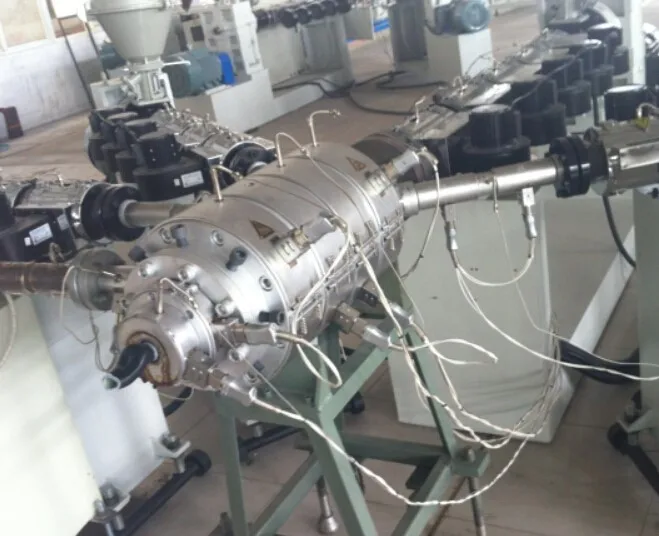

Extrusion mould

Material: 40Cr
Calibrator: Stainless steel
It will be much better if you can tell us the specific pipe size(pipe diameter & pipe thickness or pressure) you want to produce, then we can suggest you the most suitable machine based on your requirements.

Calibration Tank

Material: Stainless steel
Tank Movement : Forth and back by motor driven Up and down by manual adjust

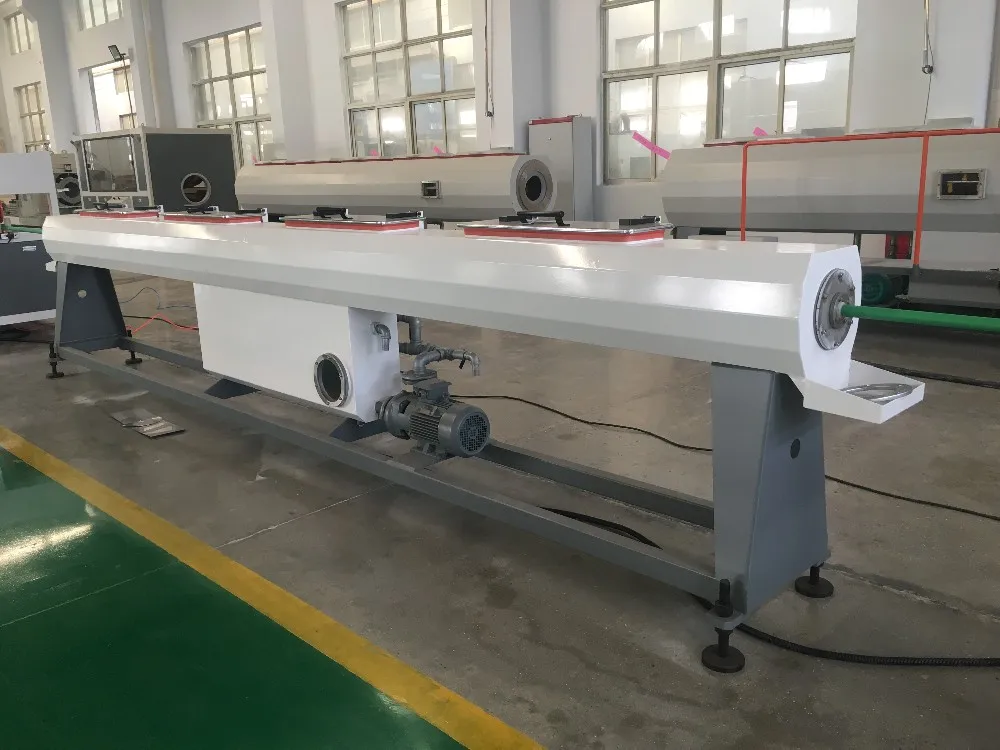

Spraying Cooling Tank

Material: Stainless steel
Length: 6m or customized

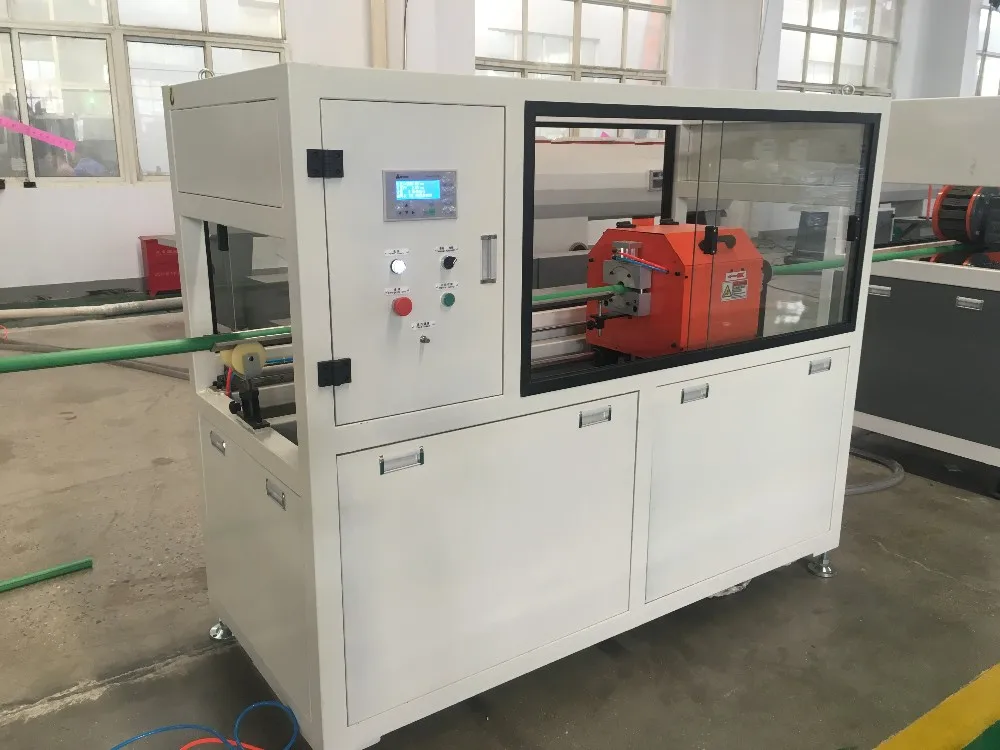

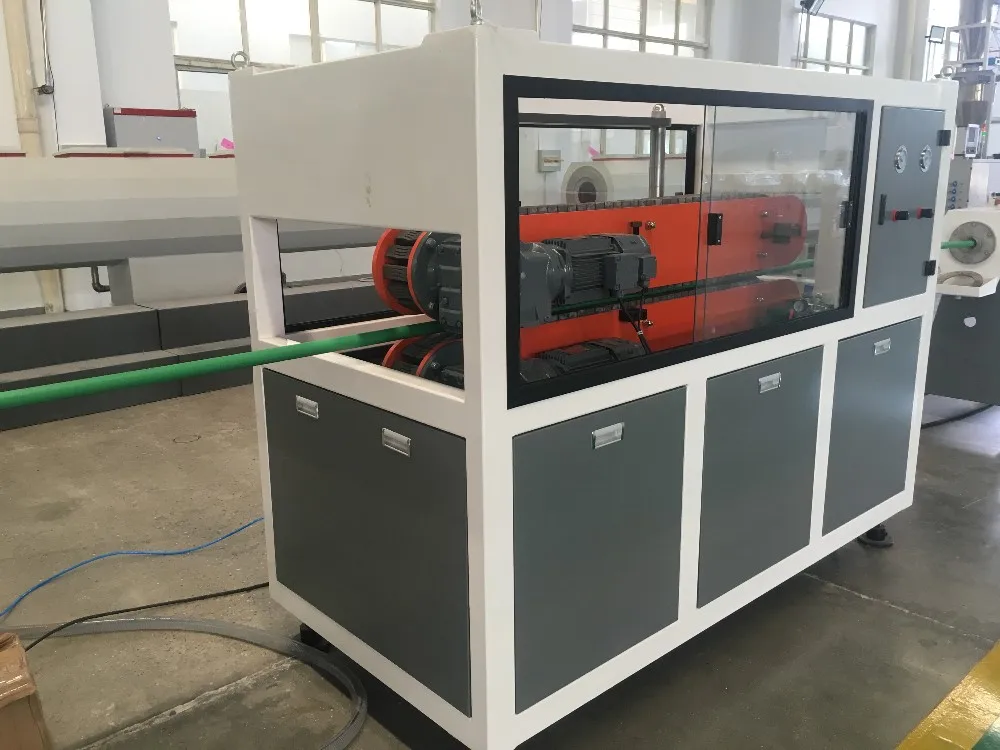

Haul-off Machine

Haul-off Speed Adjustive: ABB inverter
Above Haul-off Bracket Compaction Mode: Adopt pneumatic gas cylinder

Cutting Machine

Cutting Saw: Adopt Alloy Steel Saw

Machine Type: No dust cutting machine

This type cutting machine can reduce the dust in your factory, and with lower norise.

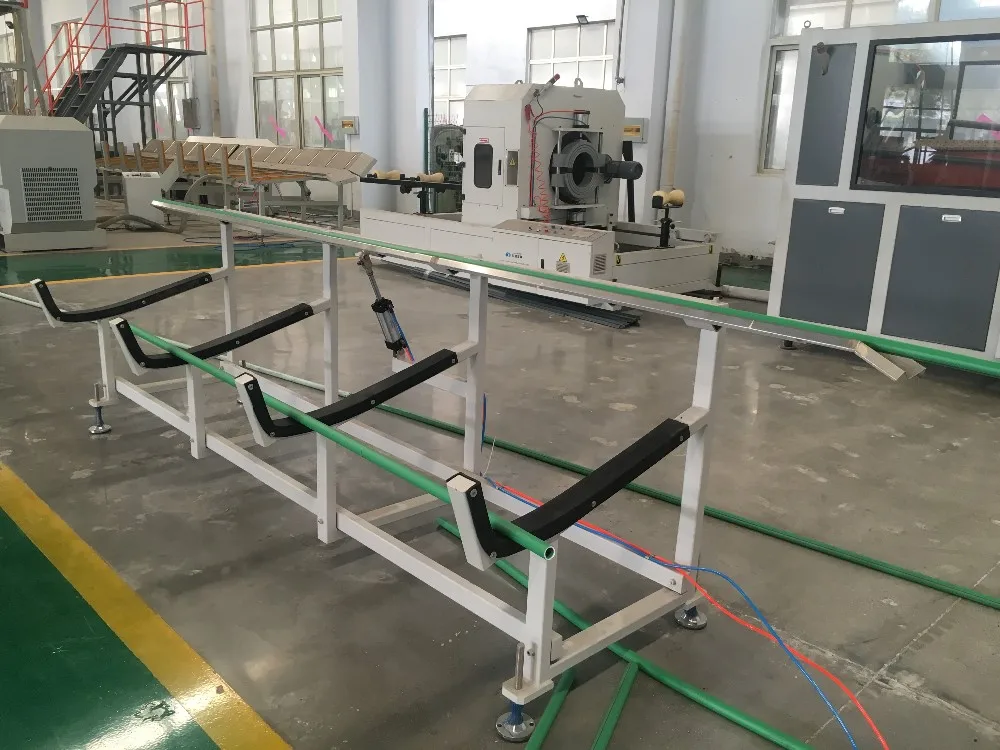

Stacker

Laying Board Material: 1.5mm Stainless Steel Board

Stacking Mode: Stacking by Gas Cylinder, adopt Limited Switch Send out Cutting Signal

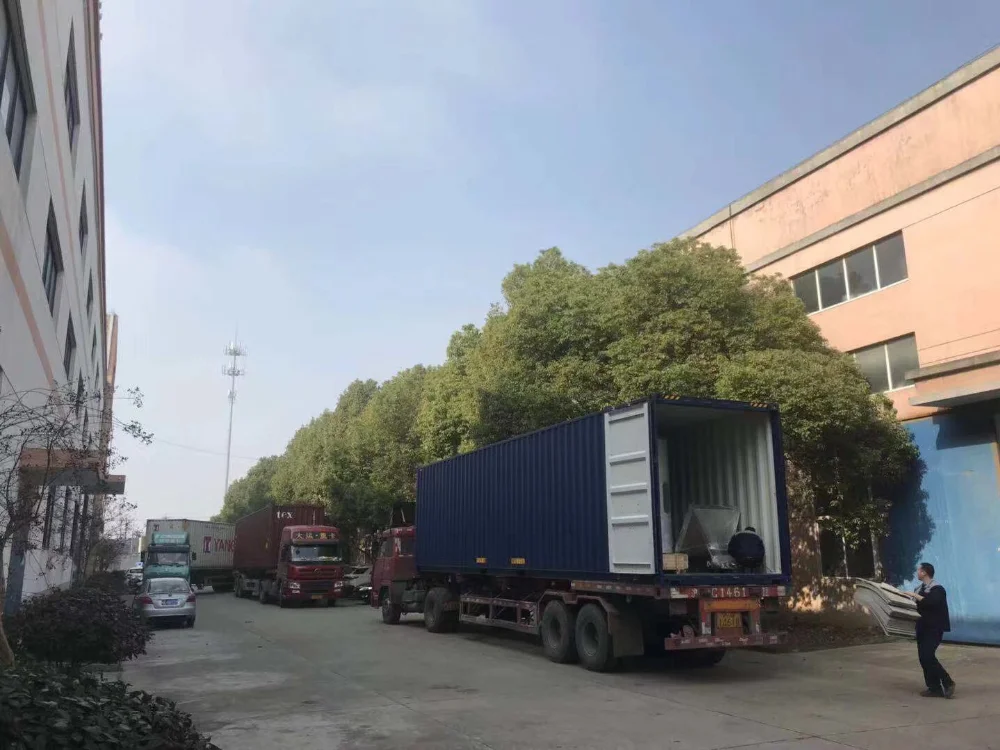

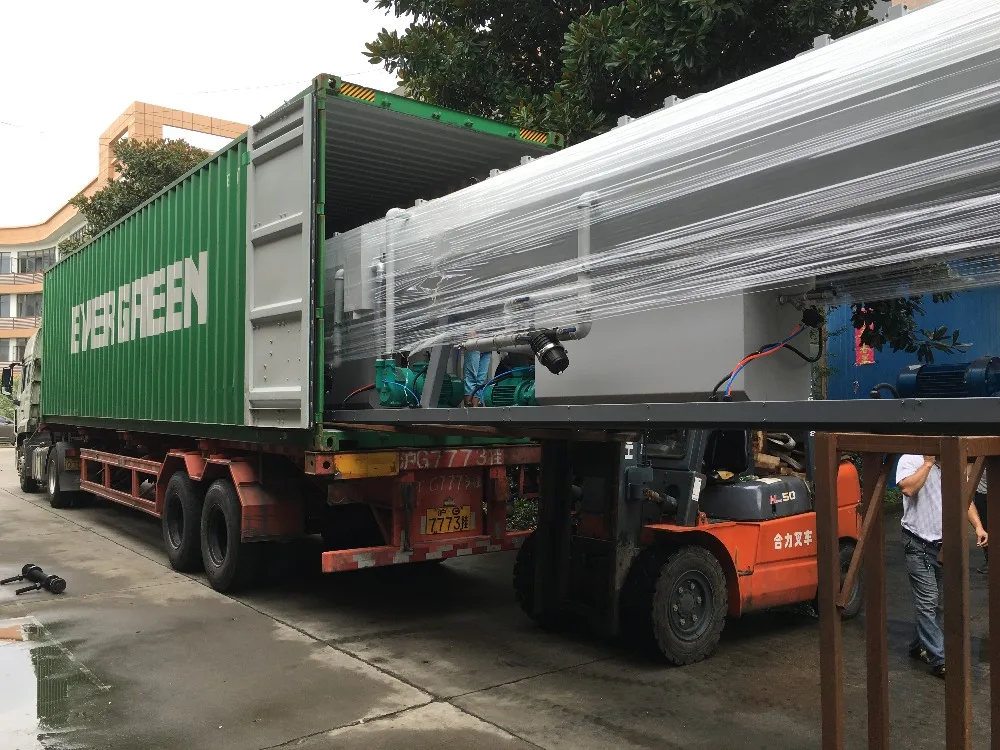

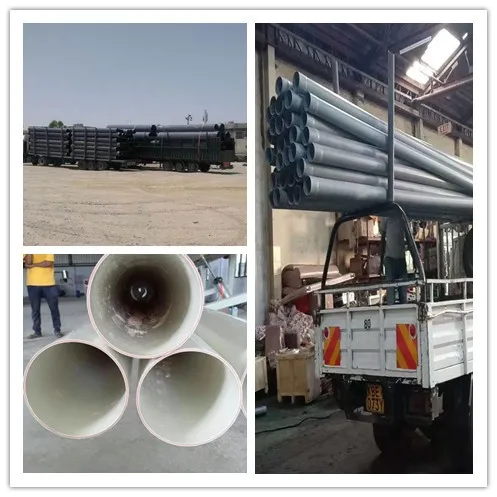

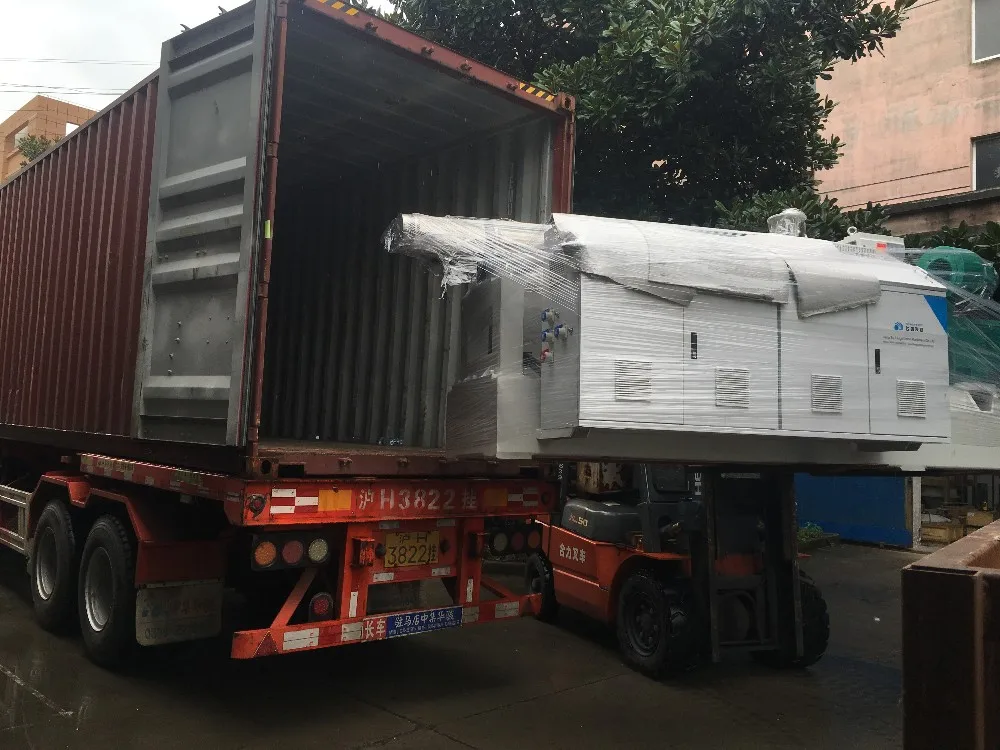

Packing & Delivery
Installation

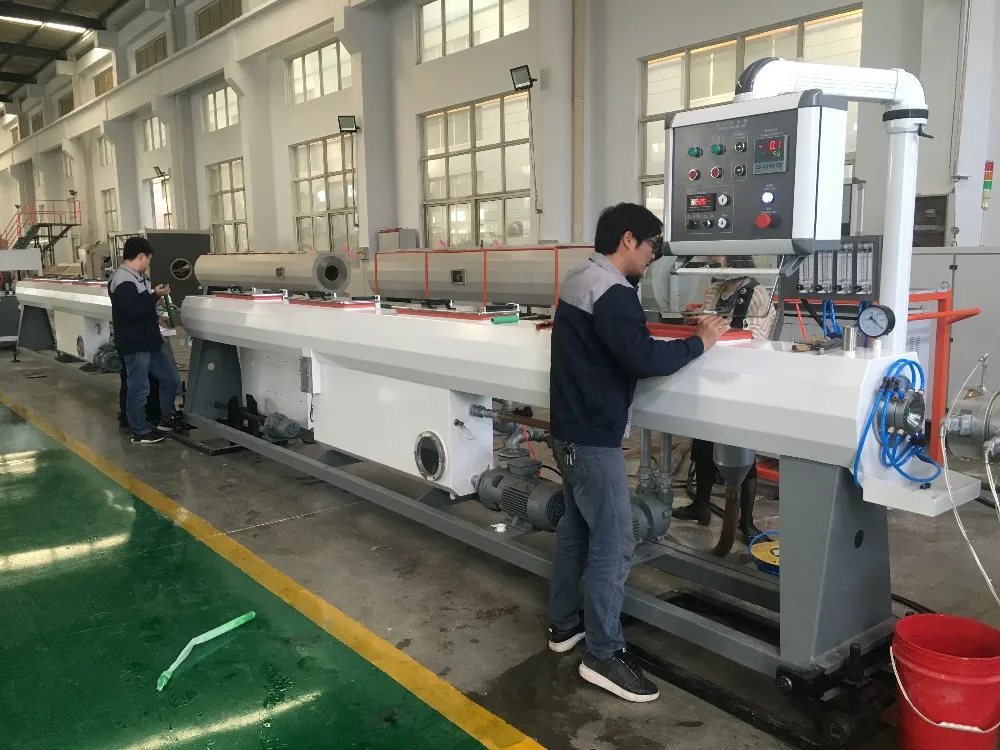

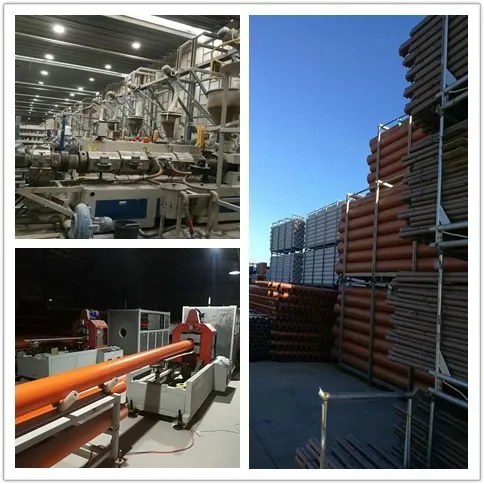

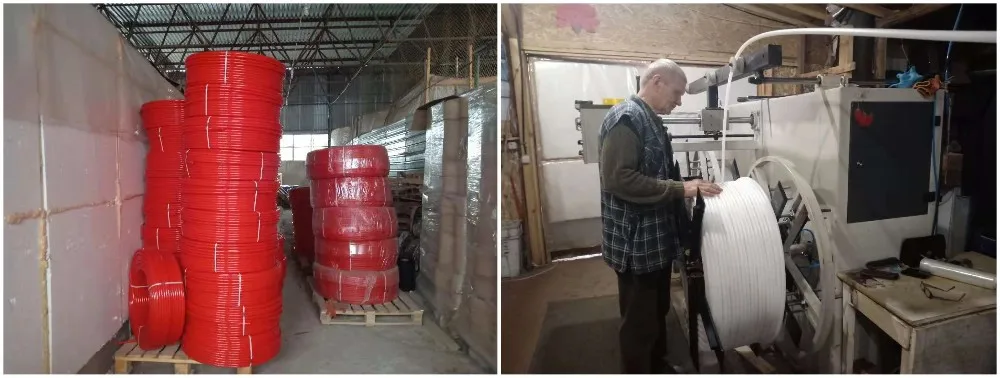

This is the factory of our Brazilian customer, we have cooperate for over 10 years. All their pipe lines are from us.

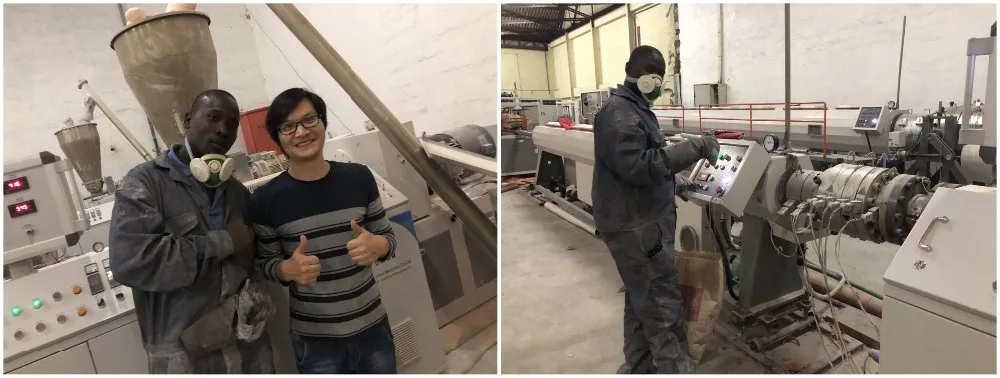

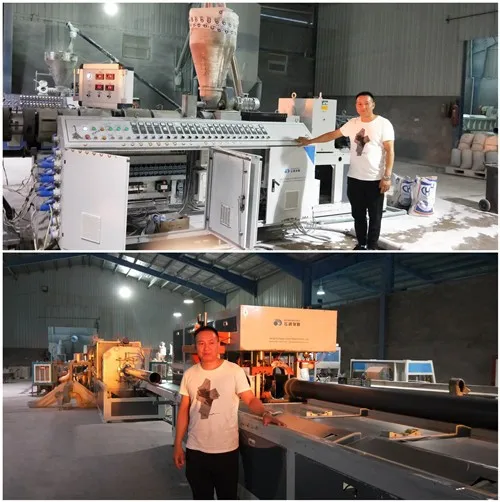

This is our engineers in Iraq, we will send engineer to your factory when our machines arrived, and provide installation, training, etc.

We will be very happy if we can use our knowledge, experience in the plastic extrusion area to help you, give you some solution.

If you need any solution about plastic extrusion machinery, welcome come to us

After sale service is very impotant to our company, we always keep it in mind.

Our factory&office

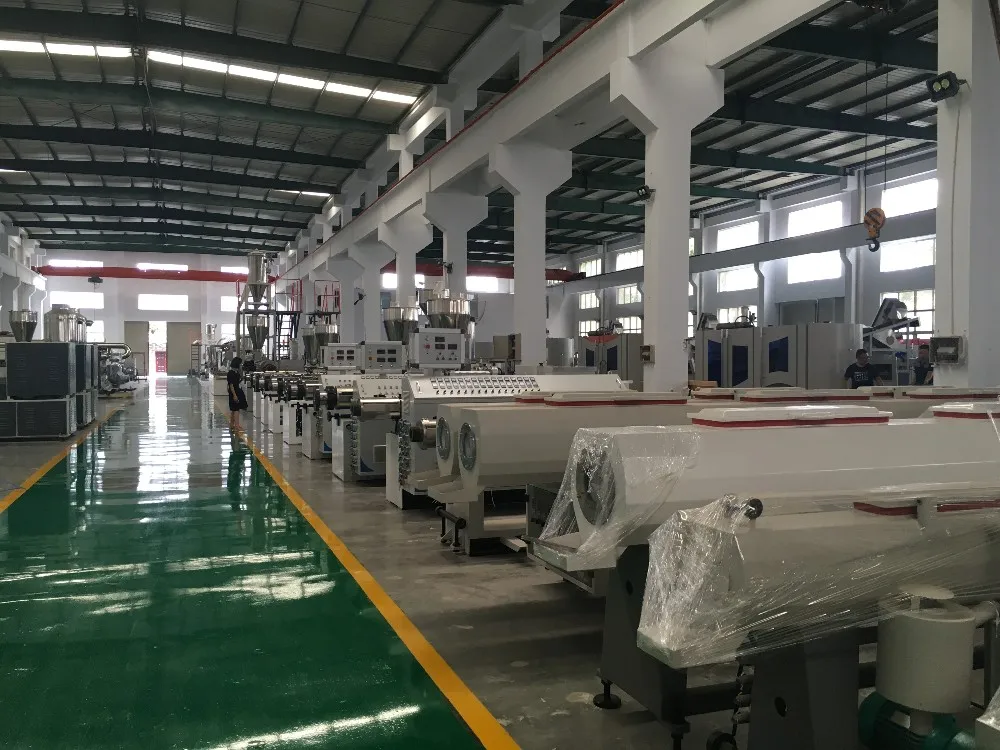

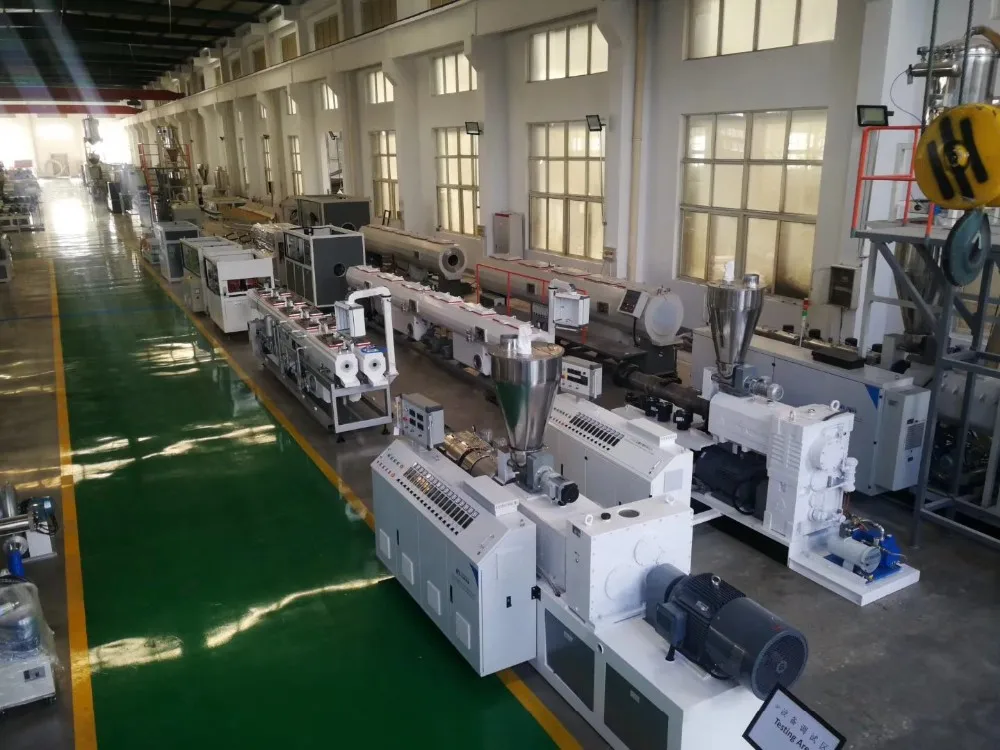

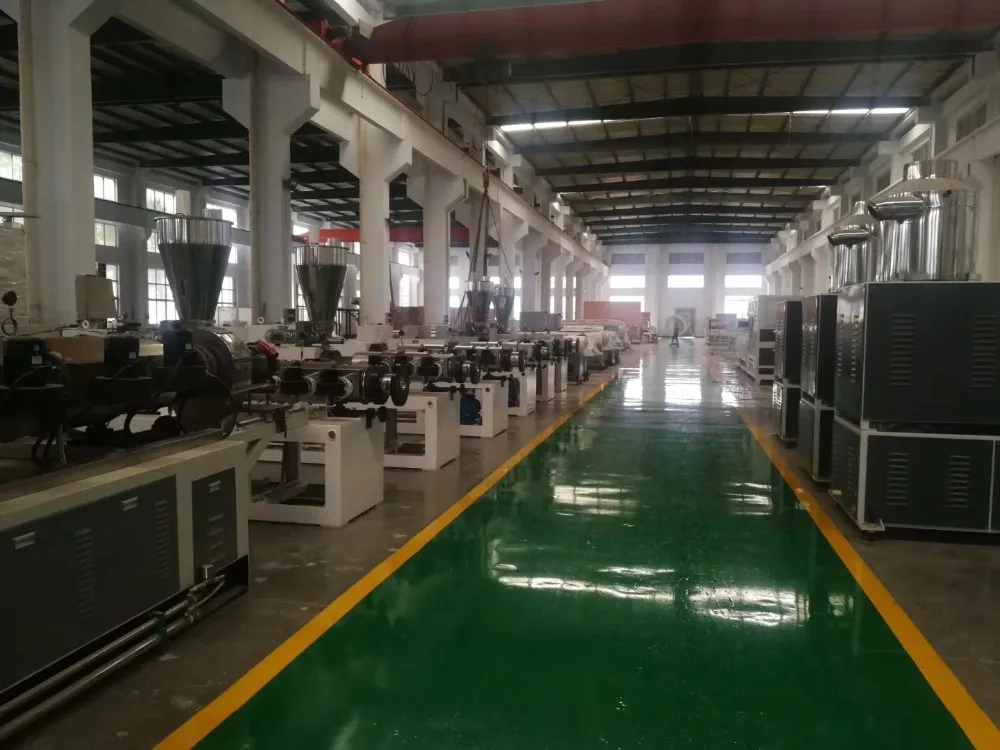

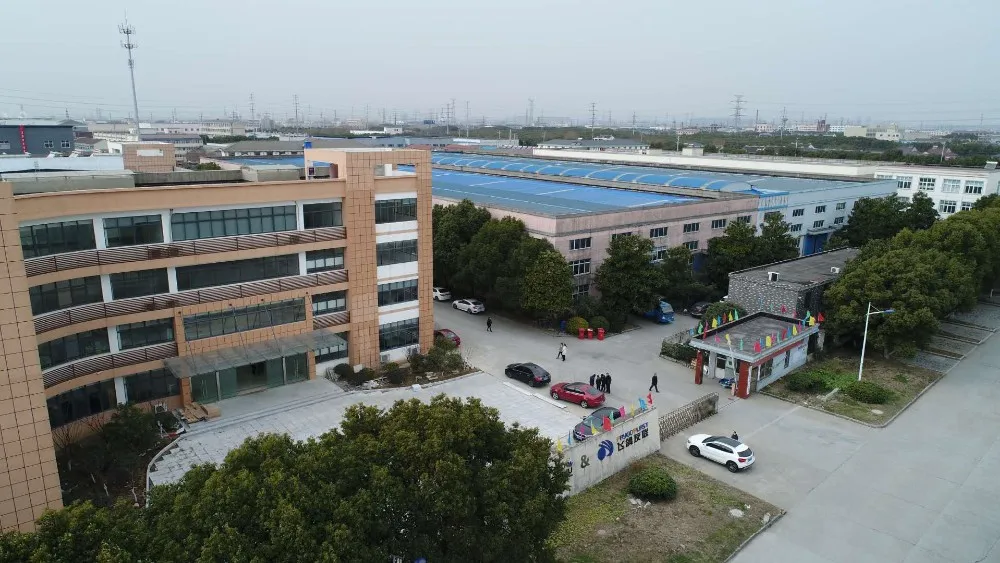

This is part of our factory, we are machine manufacturer, welcome to visit our factory if you have time!

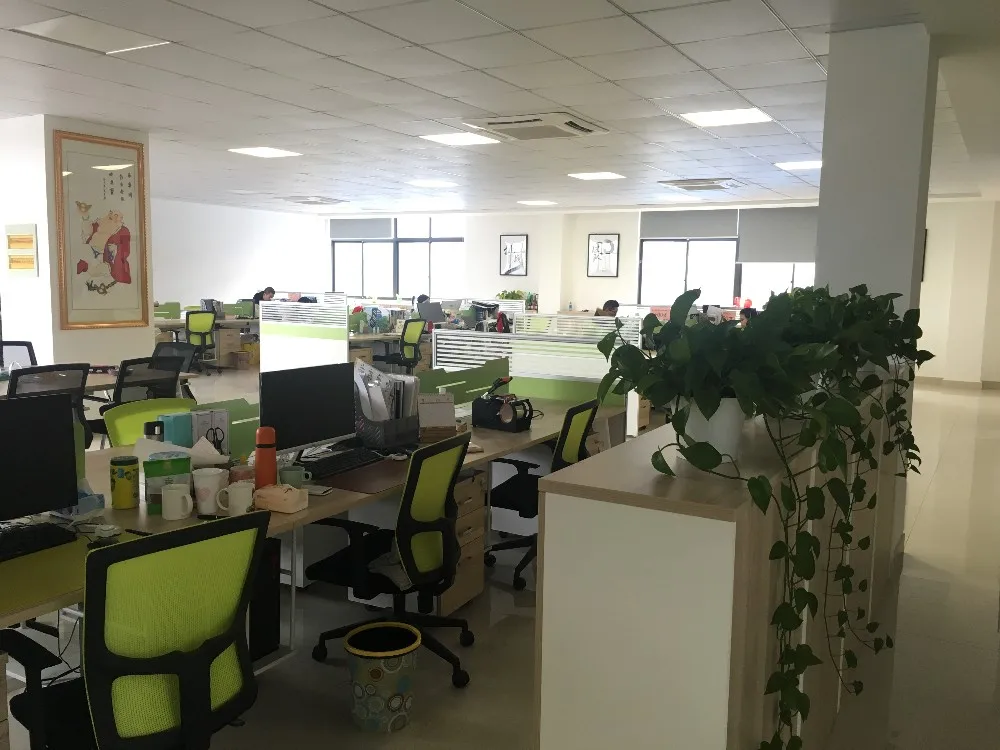

This is part of our office and part of us, we are a strong tean and big familiy, we are always stand-by to provide servise for all our customers.
