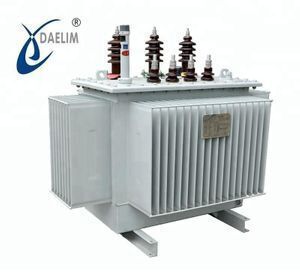

11kv 1000kva power distribution transformer price

Supplier: Beijing Daelim Green Ep Technology Co., Ltd.
Region: Beijing, China
Contact: Ms ZOE LIANG
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Tianjin, Shanghai, Guangzhou, etc. CHINA;	Output Voltage:	0.4kv;
Phase:	Three;	Cooling type:	ONAN;
Packaging Detail:	International Standard Wooden Case. One unit, one case for 11kv 1000kva power distribution transformer price;	Model Number:	S9-M/S10-M/S11- M;
Rated voltage:	11kv;	Place of Origin:	Beijing China;
Connection type:	Dyn11 Yyn0;	Supply Ability:	500 Set/Sets per Month 11kv 1000kva power distribution transformer price;
Coil Structure:	Toroidal;	Certification:	ISO9001;
Product name:	11kv 1000kva power distribution transformer price;	Brand Name:	Dalin;
Standard:	IEC60076;	Rated capacity:	1000kva;
Frequency:	50/60Hz;	Material:	Aluminum;
Payment Terms:	L/C,T/T,Western Union;	Usage:	Power;
Coil Number:	two winding;

11kv 1000kva power distribution transformer price

10KV S-M

Introduction to Products

The performances of model S9-M, S10-M, S11-M 10kv series full-sealed oil-immersed distribution transformes conform to Standards IEC. Its core is made of quality cold-rolled silicon sheet and is of a full-miter non-puncture structure and its oil is made of quality oxygen-free copper.

Main Functions And Features

It adopts radiator oil tank of corrugated shteet type or expansion type. As it doesn't need oil conservator, the height of transformer is reduced, and as the transformer oil doesn't contract with air, the oil ageing is retarded, thus prolonging the service life of transformer. The no-load loss of Model S10-M is 20% lower than that of Model S9-M, and S11-M is 30% lower than S9-M.

Main Technical Parameters for 10KV level S9-M/S10-M/S11- M Series three-phase full-sealed non-excitaiton-tap-changing distribbution transformer
Rated Power (kva)	High Voltage (kv)	H.V.Tap range	Low Voltage (kv)	Connection symbol	Short Circuit Impendence (%)	No-load loss(W)			On-load loss(W)			No load current (%)
Rated Power (kva)	High Voltage (kv)	H.V.Tap range	Low Voltage (kv)	Connection symbol	Short Circuit Impendence (%)	S9	S10	S11	S9	S10	S11	No load current (%)
30	6 6.3 10 10.5 11	±5% ±2x2.5%	0.4	Dyn11 Yyn0	4	130	110	100	600	600	600	2.1
50						170	150	130	870	870	870	2
63						200	180	150	1040	1040	1040	1.9
80						250	200	180	1250	1250	1250	1.8
100						290	230	200	1500	1500	1500	1.6
125						340	270	240	1800	1800	1800	1.5
160						400	310	280	2200	2200	2200	1.4
200						480	380	340	2600	2600	2600	1.2
250						560	460	400	3050	3050	3050	1.2
315						670	540	480	3650	3650	3650	1.1
400						800	650	570	4300	4300	4300	1
500						960	780	680	5150	5150	5150	1
630					4.5	1200	920	810	6200	6200	6200	0.9
800						1400	1120	980	7500	7500	7500	0.8
1000						1700	1320	1150	10300	10300	10300	0.7
1250						1950	1560	1360	12000	12000	12000	0.6
1600						2400	1880	1640	14500	14500	14500	0.6
2000					5	2830	2270	1940	17140	17140	17140	0.6
2500					5	3350	2690	2300	20260	20260	20260	0.5

Production Workshop

All production and manufacture procedures are under strict control, and all process, tests, ex-work tests are computer-operated.

Packaging & Shipping

The standard procedure for making wooden case is as follows:

♦ Receipt of information required for the type of goods to be wood barrel customers.

♦ Measure and create original designs for customers.

♦ Select the type of wood suitable for the requirements of the goods.

♦ Determine the delivery time.

♦ Check the wood barrel technique.

♦ Handover confirmation of work efficiency.

Our Services

♦ Train employees and explain how to use equipments clearly and efficiently.

♦ We offer the best solution and products to fulfill the buyers' requirements.

♦ We can arrange technicians to install the equipments and train your staff on site.
♦ Anytime, we provide considerate technical consultation.
♦ Prompt reply for your inquiry and feedback.
