Custom Electronic PCBA PCB SMT Assembly Service

Supplier: Shenzhen Fs Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Grace Lee
Price: $0.85 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Packaging Detail:	package of Inner: vacuum packing or Anti-static package,Outer:export carton or according to the customer's requirement. Custom Electronic PCBA PCB Assembly Service;	Port:	SHENZHEN;
Silkscreen color:	White;	Shipping:	DHL UPS EMS TNT FedEx;
Type:	FS PCBA Board;	Brand Name:	FS;
Model Number:	PCBA;	Product name:	FS PCBA;
Application:	Consumer Electronics;	Solder mask:	Green;
Assembly Service:	ODM SMT\DIP;	Solder mask color:	Green;
Certificate:	ISO/TS16949/RoHS/TS16949;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Supply Ability:	3000 Square Meter/Square Meters per Month pcb assembly service;	Material:	FR4;
Place of Origin:	Guangdong China;

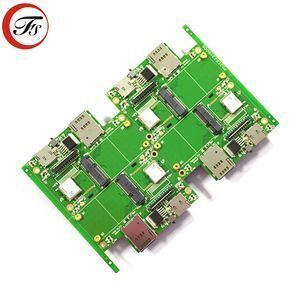

Custom Electronic PCBA PCB SMT Assembly Service

Our Products

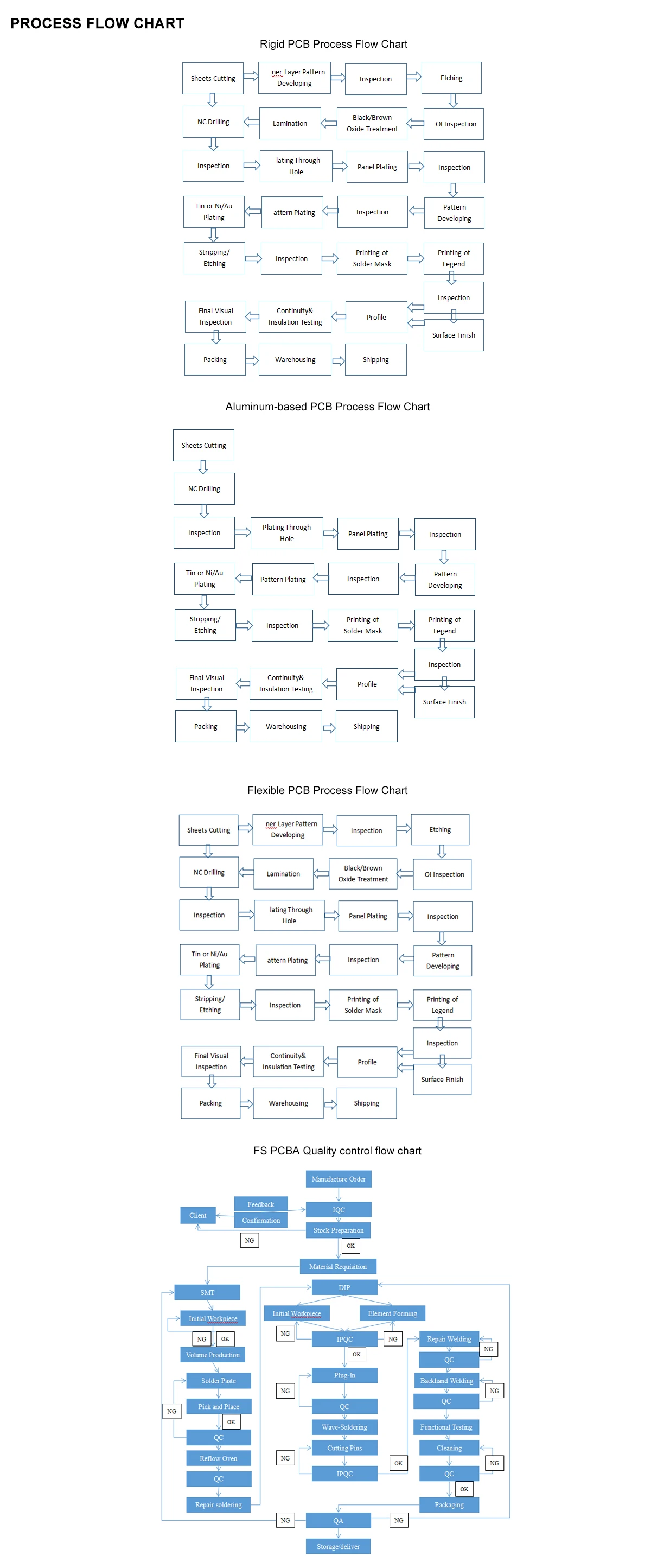

Production process

Company Information

PCBA Description

Capability - SMT
Lines		9 (5 Yamaha, 4 KME)
Capacity		52 million placements per month
Max Board Size		457 X 356mm. (18” x 14”)
Min Component size		0201 – 54 sq. mm. (0.084 sq. inch), long connector, CSP, BGA, QFP
Speed		0.15 sec/chip, 0.7 sec/QFP
Capability - PTH
Insertion Type	# of Lines	Capacity (points/mth)	Max Board Size	Lead Pitch
Jumper Wire	3	6 million	330X250 mm (13” x 9.8)	5-30 mm
Axial	3	6 million	457x559 mm (18” x 22”)	5-20 mm
Radial	3	9 million	457x559 mm (18” x 22”)	0.36-21.5 mm
Wave Soldering
Wave Soldering		2
Max board width		400 mm
Type		Dual wave
Pbs Status		Lead-free line support
Max temp		399 degree C
Spray flux		add-on
Pre-heat zones		3

Detailed Terms for Pcb Assembly

Quantity	Prototype&sample PCB Assembly, Small and middle mass prodution is our specialty and we also can handle the orders up to 2000.
Type of Assembly	THD (Thru-Hole Device), SMT (Surface-Mount Technology), Double-sided SMT & THD mixed
Solder Type	Water Soluble Solder Paste,Leaded and Lead-Free.
Components	Passives parts, smallest size 0201; BGA, uBGA, QFN, POP, and Leadless chips; Fine Pitch to 0.8Mils; BGA Repair and Reball; Part Removal and Replacement Connectors and terminals.
Bare Board Size	Smallest: 0.25x0.25 Inches; Largest: 20x20 Inches.
File Formats	Bill of Materials Gerber Files Pick-N-Place File(XYRS).
Type of Service	Turn-Key, Partial Turn-Key or Consignment.
Component Packaging	Reels,cut tape,Tube and tray,Loose parts and bulk.
Turn Time	3 - 10 days
Testing	X-ray Inspection AOI (Automated Optical Inspection) ICT (In-Circuit Test)/Functional Testing

*PCB or PCB Assembly files requests

1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly(To short the lead time, please kindly advise us if there is any acceptable components substitution. )

3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary

(Components for your PCBA project can be supplied in any one or more approaches above.

We order genuine parts from your designated suppliers or our partner companies including DigiKey, Mouser, Arrow, Avnet, Future Electronics, Farnell.etc)

Application

Showcase

Our Showcase

Packaging & Shipping

FAQ

Q.What service can you supply ?
We are OEM PCB and PCBA manufacturer since 2004 ,we can provide turnkey solutionincluding RD PCB fabrication,SMT and assembly PCBA inside the enclosure,Functiontesting and other value-added service.
Q.What file you need to prepare if you want to get an quotation from us?

For PCB board, you need to prepare files of Gerber file,it should including RS-274X,ODB++, DXF, PCB, PCBDOC etc formats.
For PCBA(PCB with soldered components), except the file for PCB, you also need to prepare the BOM list (components list), Pick and Place file(txt format), real sample pictureor 3D PDF version file etc.

Q. Do you have any MOQ Limited ?
We havent any limited about MOQ .Sample and mass production all can support.
Q. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
Q.How long does it take for PCB and PCBA Quote ?
PCBs quotation within 2 hours can finished the PCBA depend on the components
quantity,if simple, within 6 hours can finished,once complex and more,the 12- 36 hours
can be finished.

*Please note that the following detail will speed up evaluation:

Material:

Board thickness:

Copper thickness:

Surface finish:

Solder mask color:

Silkscreen color:

Q. How about the delivery?
Normally, for sample order, our delivery is about 5 days.For small batch, our delivery is about 7 days.
For mass production batch, our delivery is about 10 days.
But that depends on the real condition when we get your order.
If your order is urgently please contact us directly ,we will priority to deal it and do ourbest to give you satisfied delivery time.
Q.How can we guarantee you receive an good quality product?

For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC footwelding or bad solder etc.
Q.With payment terms do we accept?
For sample order or small batch, we suggest you to use Pay-pal and Western Union.For mass production batch, we suggest you to use T/T.
