New cnc 4 5 axis granite kitchen countertop slab bridge saw stone cutting machine for sale

Supplier: Jinan Luojia Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Linda zhen
Price: $13600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cutting Depth:	110mm;	Weight:	2000KG;
Warranty:	2 years;	After Warranty Service:	Video technical support,Online support;
Certification:	FDA CE ISO;	Voltage:	380V/50Hz;
A Axis Stroke:	360 Degree Rotation;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Retail,Construction works ;
Blade Size:	350mm;	Dimension(LWH):	3000x2000mm;
Production Capacity:	100%;	Name:	Cnc granite bridge saw stone cutting machine;
After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Brand Name:	iGoldencnc;
Application:	kitchen counter making cnc machine;	Showroom Location:	None;
Place of Origin:	Shandong China;	Power(W):	4 kw and etc.;
Port:	Qingdao port;	Use:	stone granite marble;
Payment Terms:	L/C,T/T;	Weight:	2000kg;
voltage:	380v 50/60HZ;	Control System:	CNC;
Packaging Detail:	standard export wooden case for New cnc 4 5 axis granite kitchen countertop slab bridge saw stone cutting machine for sale;	Condition:	New;
Type:	Stone Cutting Machine;	Model:	3000x2000mm;
Blade Quantity:	1;	Supply Ability:	100 Set/Sets per Month;
Local Service Location:	None;

Product Description

New cnc 4 5 axis granite kitchen countertop slab bridge saw stone cutting machine for sale

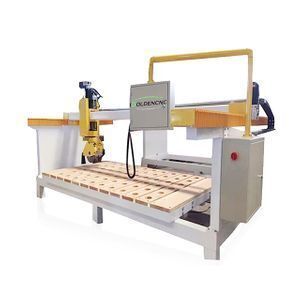

iGS-3020 is our newly designed CNC bridge saw with compact size.

1. It is with automatic tilting machine head and hydraulic tilting work table.

2. By using advanced computer control system to achieve multi programming methods, including manual programming or PC programming ,

3. Achieve fully automatic processing operation and some powerful functions, like easy-operation auto cutting, edge polishing, slotting, kitchen countertop processing, special shape processing and other operations.

Technical parameters:

Voltage	380v-3phase,50hz
Motor power	4 kw
Stroke of X axis	3000mm
Stroke of Y axis	2000mm
Stroke of Z axis	260mm
Stroke of A axis	360 degree rotation
Cutting speed of X axis	1-2000mm/min
Cutting speed of Y axis	1-2000mm/min
Cutting speed of Z axis	1-1000mm/min
Rotating speed of A axis	0-7R/min
Cutting thickness	100mm
Cutting precision	0.2mm
Programing way	Manual or Import graphics
Overall size	4500x2750x2100mm
Weight	2000kg
Warranty	1 year for the machine frame, 6 months for electric parts
