High end quality Single Shaft Shredder

Supplier: Changshu Shi Shouyu Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Zhanjun Xie
Price: $9900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO9001/CE/SGS/TUV;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Packaging Detail:	Wooden Package/Film Package/steel frames Package/customer requirement;	Place of Origin:	Jiangsu China;
Dimension(LWH):	330049002700mm;	Key Selling Points:	Multifunctional;
Condition:	New;	Supply Ability:	800 Set/Sets per Year;
Payment Terms:	L/C,T/T;	Applicable Industries:	Manufacturing Plant,Shredding&Recylcing machinery;
Brand Name:	SOYU;	Voltage:	380V;
Warranty:	1 year;	Port:	Shanghai,China;
Use:	Waste Plastic Crusher;	Production Capacity (kg/h):	50000;
Trade or Manufacturer:	Manufacturer;	Power (kW):	18.5;
After-sales Service Provided:	Engineers available to service machinery overseas;	Weight (T):	1600-13000kg;
Plastic Type:	PET,PE/PP,PVC,ABS,HDPE;	Brand:	SOYU;
Shaft Design:	Single;	Capacity:	500kg-5000kg/h;

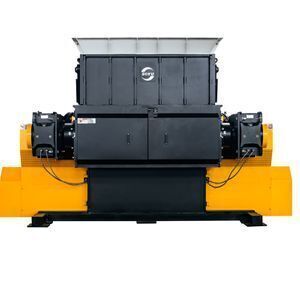

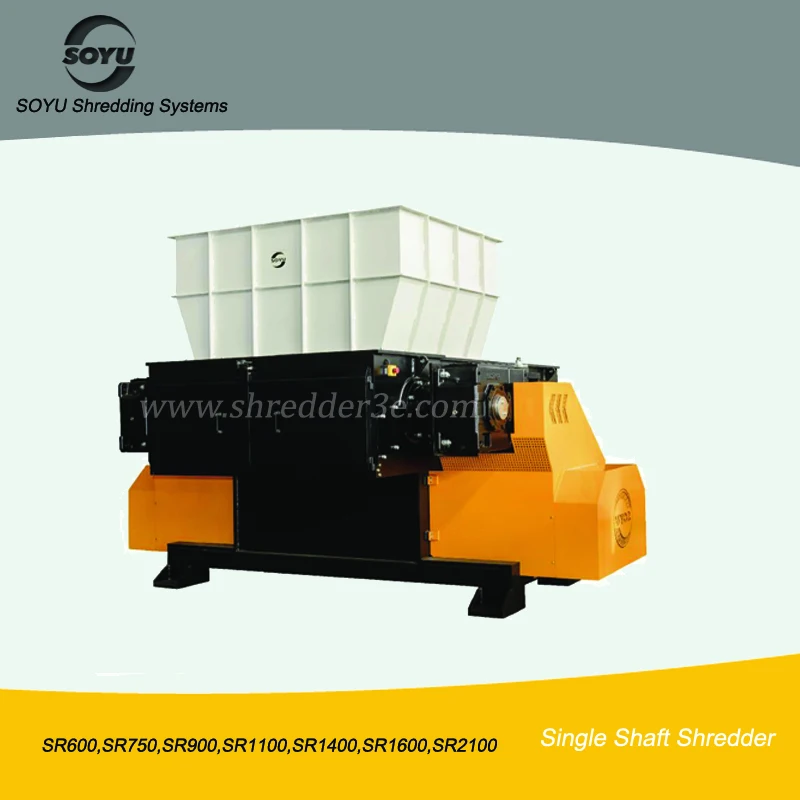

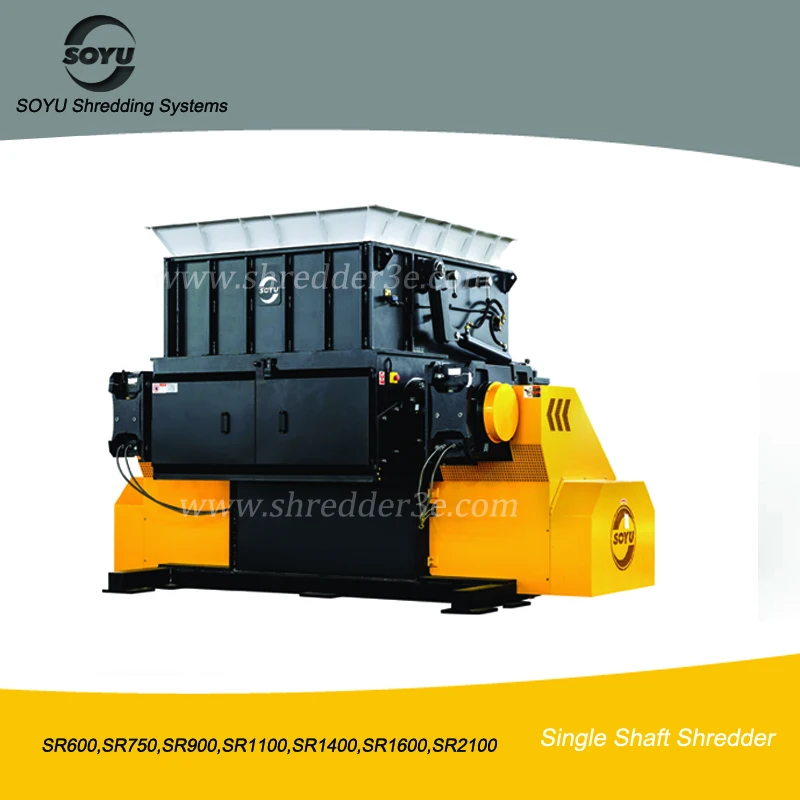

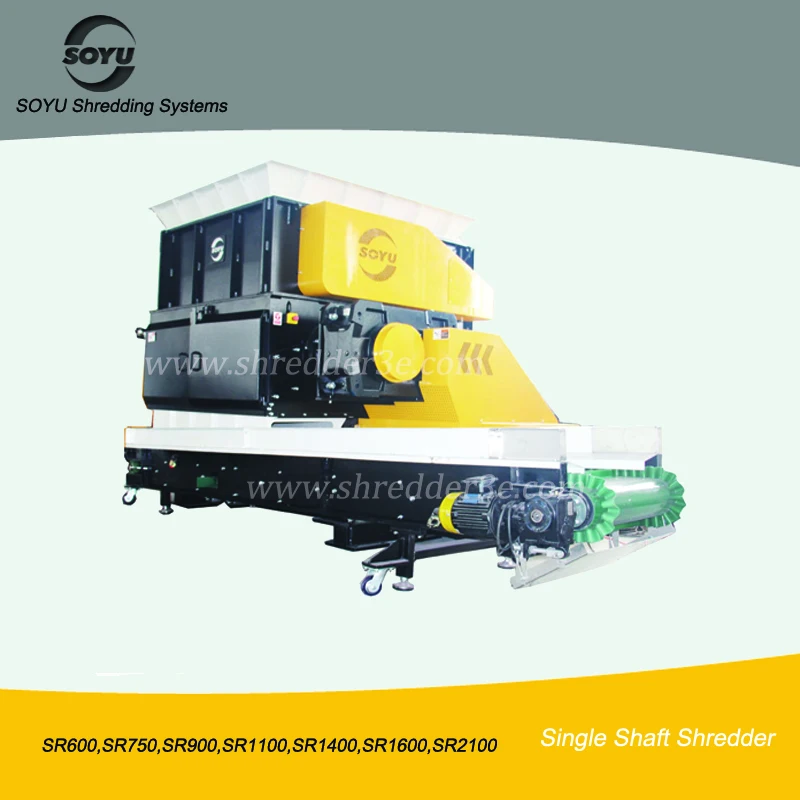

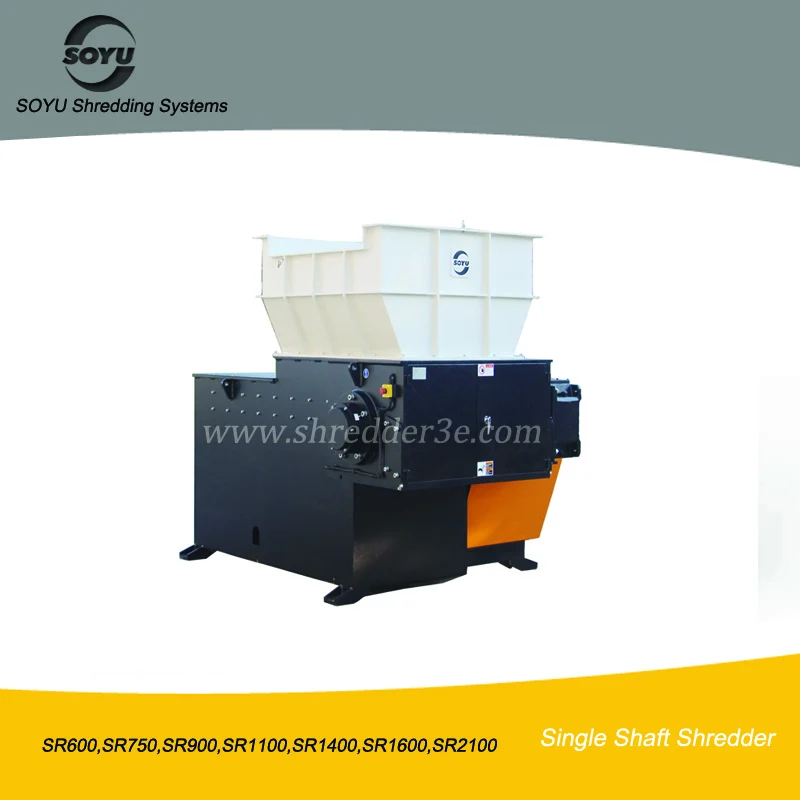

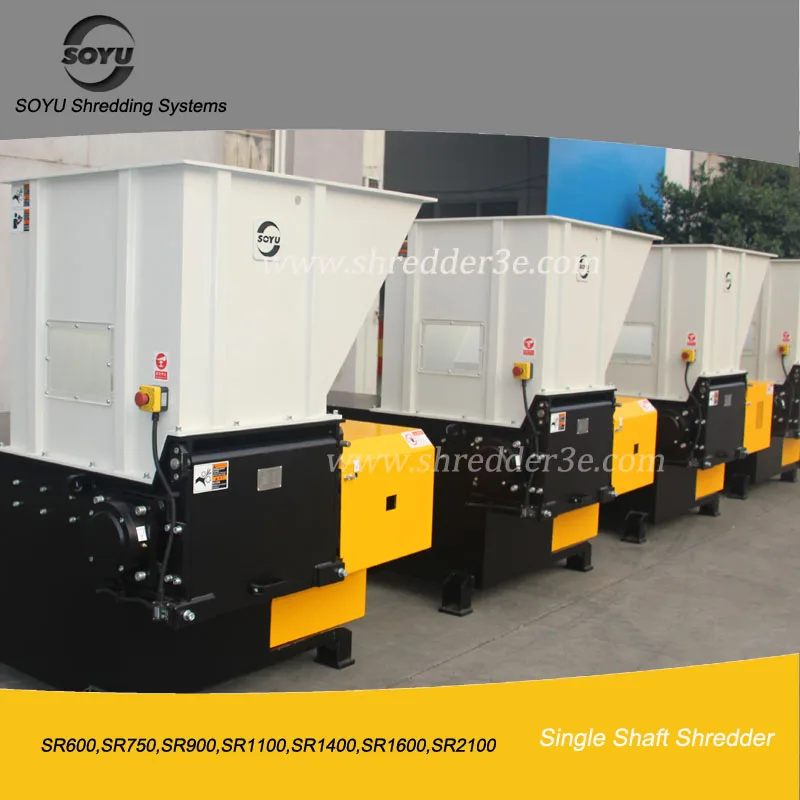

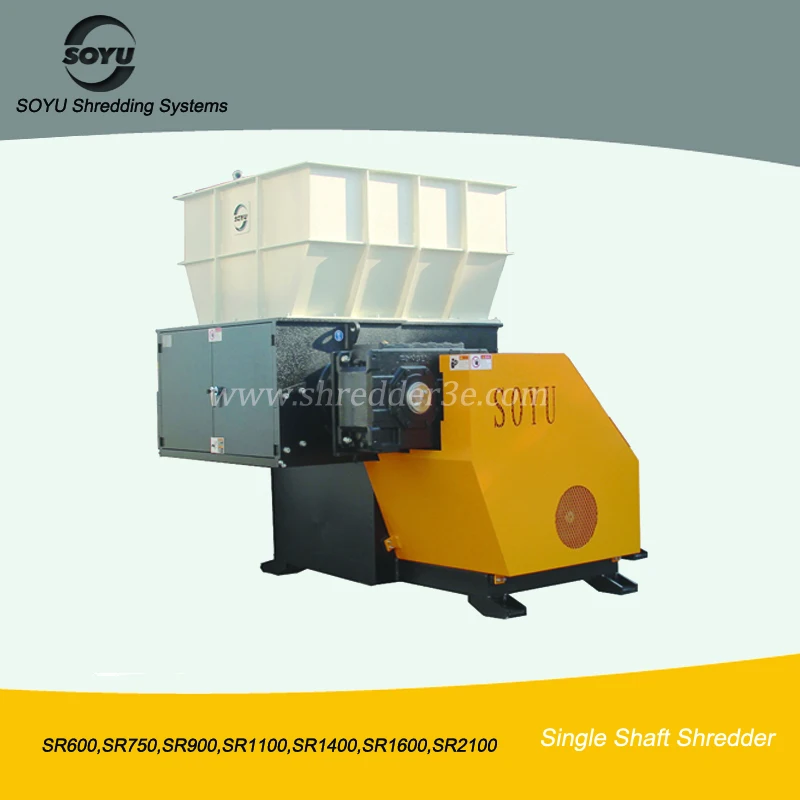

Single shaft shredder

Product Description

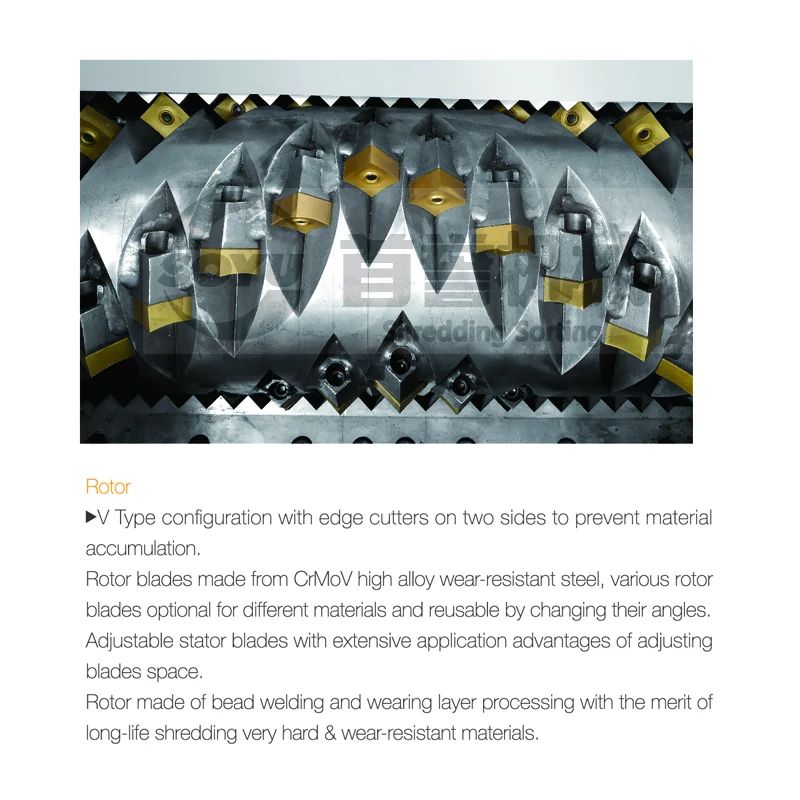

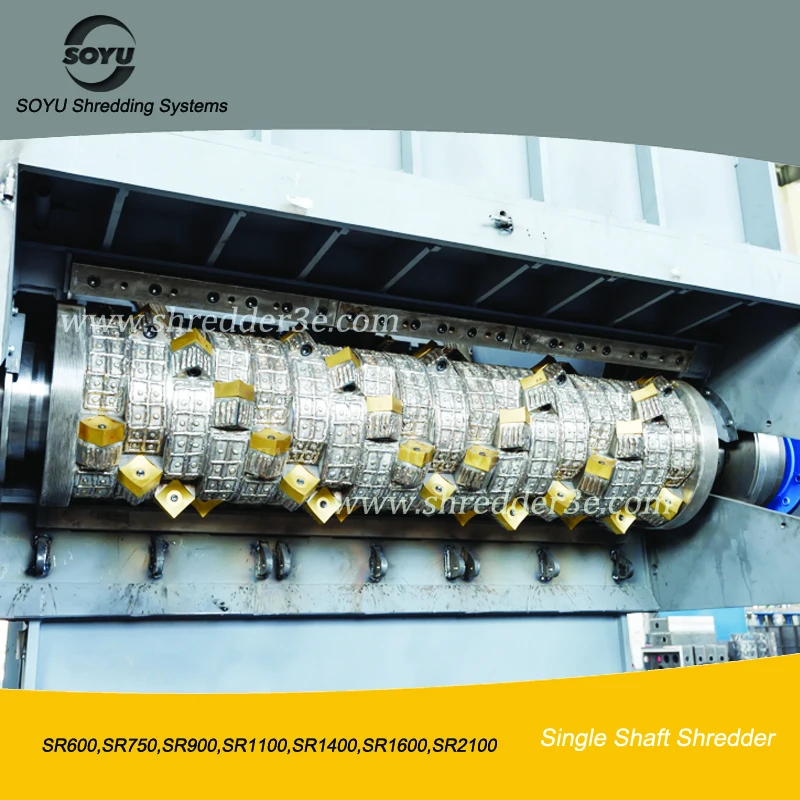

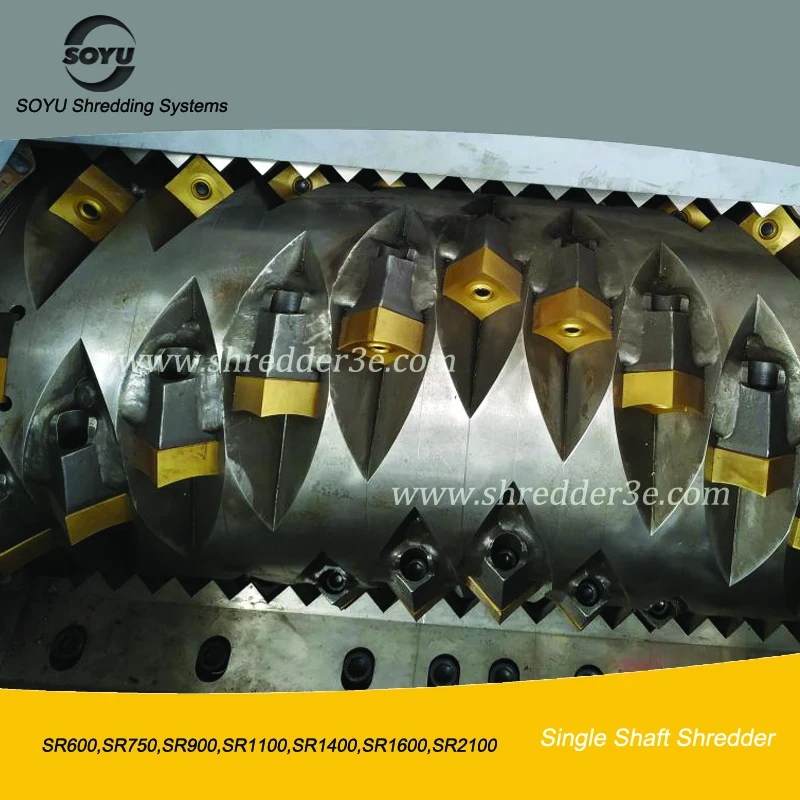

The SR shredders have been designed for the most demanding and high throughput applications in recycling industries,Clients could select the corresponding models according to the material size and quantity. Well as for the different special needs, providing a special knife rotor, for shredded material as film, woven bags or nylon, ABS and PC.

Applications:
- plastic lump and plastic block, like PP, PE, PET, PC, ABS, Nylon.
-Plastic pipes
-PP/PE film,Woven bags
- Living garbage,
- Medical waste
-Electronic Waste
-Copper Cable,Aluminum Cable with steel
- Aluminum cans
-Wood,Pallet,tree root,solid wood etc

Model	SR600	SR750	SR900	SR1100
Main shaft rev(rpm)	73	73	73	73
Pushing chamber route(mm)	500	820	820	820
Rotation diameter (mm)	φ220	φ400	φ400	φ400
Number of Rotor blades (pcs)	23	33	39	49
Number of Stator blades (pcs)	4	6	6	8
Discharge height(mm)	500	600	760	760
Screen hole diameter (mm)	40	40	40	40
Motor power(kw)	18.5	37	37~45	55~75
Hydraulic power(kw)	1.5	2.2	2.2	5.5
Cutting chamber (WXL)(mm)	600x510	830x768	900x830	1130x830

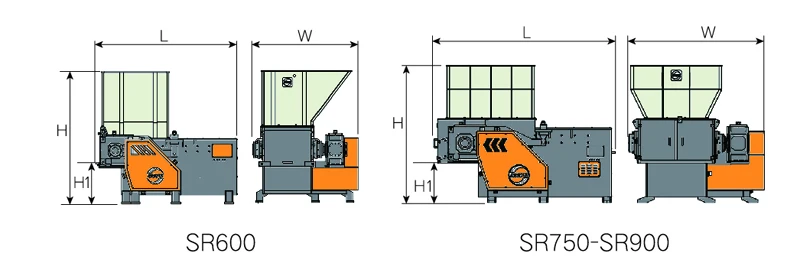

Dimension(LXWXH)(mm)	1850x1300x1700	2700X1500X2000	2700x1950x2150	2700x2300x2150
Weight(kg)	Approx 1600	Approx 3300	Approx 4100	Approx 4700

Model	SR1400	SR1600	SR2100	SR2500
Main shaft rev(rpm)	73	73	73	73
Pushing chamber route(mm)	820	1000	1000	1000
Rotation diameter (mm)	φ400	φ480	φ480	φ480
Number of Rotor knifes (pcs)	60	70	92	112
Number of Rotor knifes (pcs)	60	94	122	150
Number of Stator blades ( (pcs)	10	12	16	20
Discharge height(mm)	760	950	950	950
Screen hole diameter (mm)	40	40	40	40
Motor power(kw)	75~90	2X45~2X55	2X55~2X75	2X75~2X90
Hydraulic power(kw)	5.5	7.5	7.5	7.5
Cutting chamber (WXL)(mm)	1360x830	1590x1000	2055x1000	2515x1000
Dimension(LXWXH)(mm)	2700x2600x2150	4100x3300x2700	4600x3300x2700	4900x3300x2700
Weight(kg)	Approx 5600	Approx 8200	Approx 10500	Approx 12500

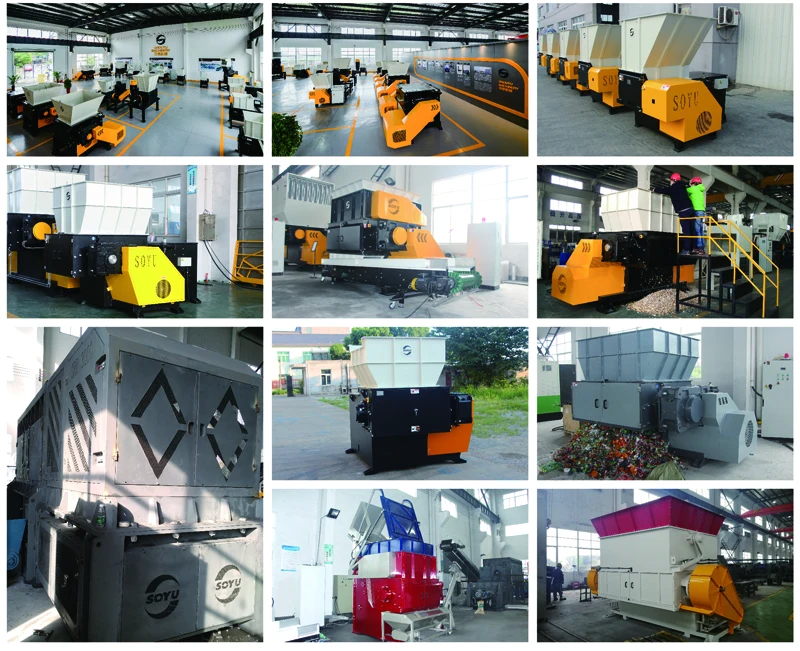

SOYU provides a wide selection of industrial shredders and crushers to satisfy your material size reduction requirements, which feature stable performance, high production efficiency and easy maintenance. We pay attention to every detail of the machine to help you improve productivity, save energy and maximize economic benefits. In addition to standard industrial shredder and crushers, customized size reduction machines can also be offered according to your material shredding requirements. A variety of screens and rotors are selectable to achieve the best processing performance.
