Square round LF60M laser iron sheet pipe cutting machine

Supplier: Gweike Tech Co.,Ltd.
Region: Shandong, China
Contact: Mr Xifeng Jiang
Price: $14000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Application:	Industrial Metal Cutting;	laser type:	Import original fiber laser;
Condition:	New;	Brand Name:	G.WEIKE;
Voltage:	380v;	Dimension(LWH):	380018501300mm;
repeatopsitooning accuracy:	+-0.02mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,trade insurance;
maxinum speed:	100m/m;	Cutting material:	Metal Stainless Steel Carbon Steel Aluminum;
Transmission:	Dual driver rack gear;	Port:	FOBQingdao;
Control system:	Off-computer control system;	Maxinum acceration:	1G;
After-sales Service Provided:	Engineers available to service machinery overseas;	Packaging Detail:	plywood;
Place of Origin:	Shandong China;	Delivery Detail:	15 days;
Supply Ability:	1000 Set/Sets per Month;	Weight:	3000KGS;
Rated Power:	300w500w/750w/1kw;	Warranty:	3 Years;
Model Number:	LF60M;	Product name:	Square round LF60M laser iron sheet pipe cutting machine;
working area:	11000*600mm;	Certification:	CE ISO FDA IAF;

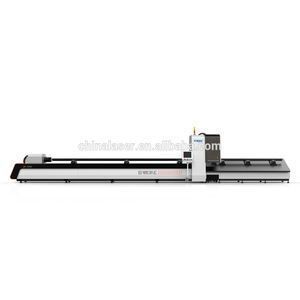

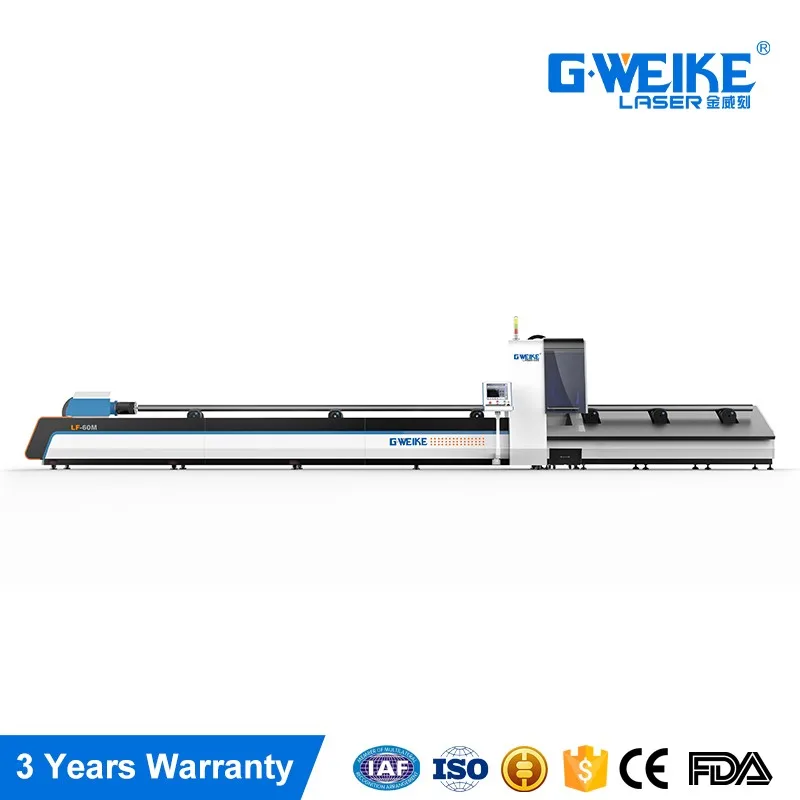

Square round LF60M laser iron sheet pipe cutting machine

Square round LF60M laser iron sheet pipe cutting machine is professional tube cutting fiber laser machine, suitable for all kinds of stainless tube, round tube, square tube and oval tube. Improve the quality of tube cutting products, make cutting become simple.

Features:
1.The Square round LF60M laser iron sheet pipe cutting machine structure is welded, stable performance, to ensure the stable operation

2.automatic LF60M steel aluminum copper tube cutting machineWith 650 degree high temperature heat treatment working bed and a large milling machine high precision machining to ensure the stability and smoothness of the working bed.

3.automatic LF60M steel aluminum copper tube cutting machine Operation system, easy control system, easy to learn and operating.

4Square round LF60M laser iron sheet pipe cutting machine High quality, high efficiency fiber laser generator, low processing cost, saving help energy conservation and environmental protection..

5.Square round LF60M laser iron sheet pipe cutting machine Automatic chuck the front and bottom, easy to feeding, designed for saving material.

6.Square round LF60M laser iron sheet pipe cutting machine Equipped with servo system from Japan, gear rack movement structure using, to ensure the high speed, high precision, high reliability.

7. New beautiful designed, fully enclosed protective cover.

Technical parameter

Model	Square round LF60M laser iron sheet pipe cutting machine
Power	500w/750w/1000w/2000W
Working area	Clamping diameter Ø20- Ø200
Positioning accuracy	±0.03mm/m
Repeat positioning accuracy	±0.03mm
Transmission	Precision ball screw, gear rack
Size	11900(L)1580(W)2260(H)
Weight	4480kg

The samples & application

Quality control

Each process has strict quality control,Only G.weike have Gantry Milling Machine and Laser interferometer to ensure the high precision and long service life time.

Exhibition show

certifications

Aftersales service

1. three years warranty

2. free training

3. online training and service

4. Our technicians can go to your place and offering service or training, but need you to bear all charges.

5. 24 hours *7 days each week

Quality control

Each process has strict quality control,Only G.weike have Gantry Milling Machine and Laser interferometer to ensure the high precision and long service life time.

FAQ

Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following detailes:
1.What is your material?
2.The size of material?
3.The thickness of material?

Q: This is the first time I use this kind of machine, is it easy to operate?
A: A manual is already included in our product packaging,we also provide 24/7 telephone support to our customers and offer a life time warranty.Jinan G.weike as the largest laser manufacturing factory, we have free installation for optical fiber laser machine in addition to the operating instructions door-to-door free installation services we also provide professional engineers, to provide you for free door-to-door training instruction, so please be assured use;

Q: Why choose agent and OEM?
A: The minimum order is 1 set machine, if you order more one time, the price will be better,Jinan G.Weike focus on laser research and development production of 14 years,have 31 national patents, It is the largest fiber laser cutting machine, engraving machine and marking machine manufacture in northen of China,we have advanced technology, quality certification CE, ISO 9001, and FDA. products are exported to more than 100 countries and areas, as a focus on laser industry manufacturers, not only can give you a good quality assurance, but also can offer you a good price.

Any questions,please click SEND for more information.
