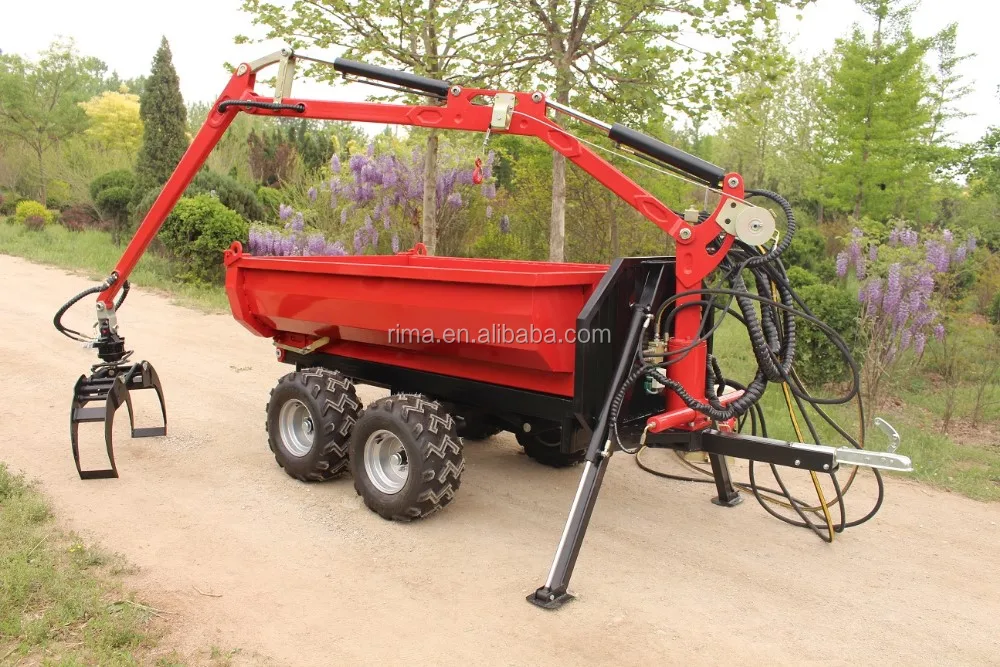

ATV tipping trailer
-
Supplier: Yantai Rima Machinery Co., Ltd. -
Region: Shandong, China -
Contact: Mr Andy Gao -
Price: $1200.00 /piece -
Min. Order: 1 piece
| Payment Terms: | T/T; | Max Payload: | 2500kg; |
| Use: | ATV Trailer; | Supply Ability: | 200 Piece/Pieces per Year; |
| Place of Origin: | China; | Packaging Detail: | iron pallet; |
| Port: | Qingdao; | Brand Name: | RIMA; |

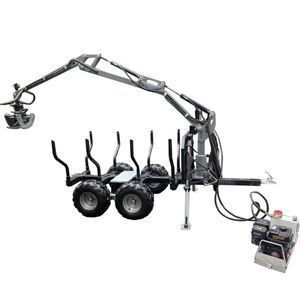

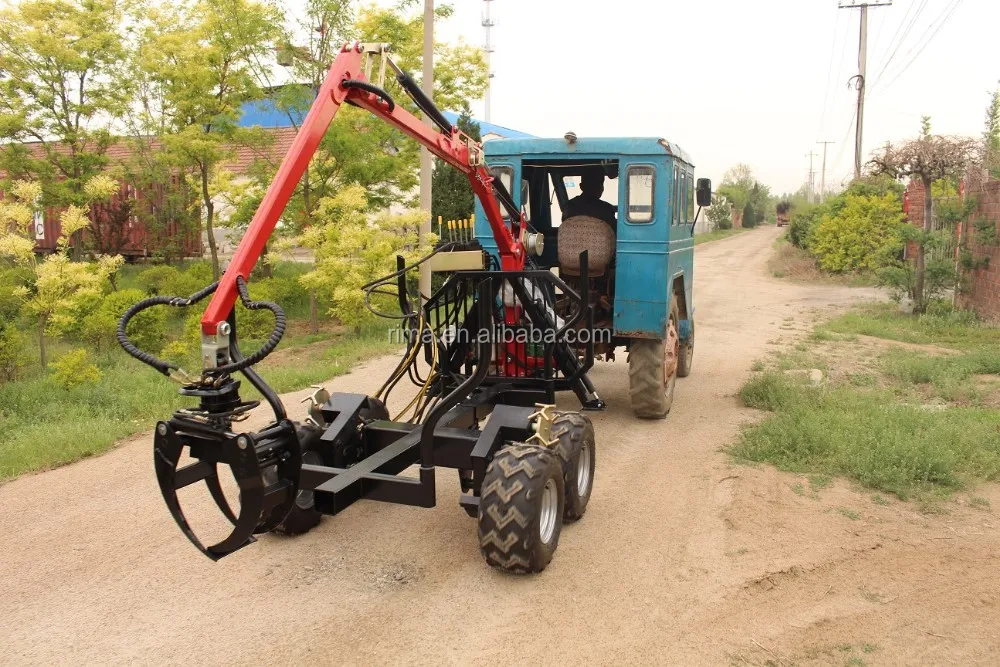

Timber Crane | |||
Model | TTC03 | TTC03-4WD | TTC03T |
Max reach | 3.4m | ||
Lifting capacity(3.4m) | 250kg | ||
Lifting capacity(2m) | 600kg | ||
Turning radius of crane | 360° | ||
Hydraulic winch(OPTIONAL) | Remote control Rope length:15m Remote control area:30M Rated line pull:800KG Speed:10-25m/min | ||
No. of swing cylinder | 2pcs | ||
Max. open & area of wood grapple | 700mm/0.08 m2 (STANDARD) | ||
Max. open & volume of earth bucket | 1100mm/56L (OPTIONAL) | ||
Max. load of hydraulic rotator | 1 ton(10KN) | ||
Hydraulic rotator turning radius | unlimited | ||
Working pressure | 18-22Mpa | ||
Control valve | 5/7 sets | 7/9 sets | 5/7 sets |

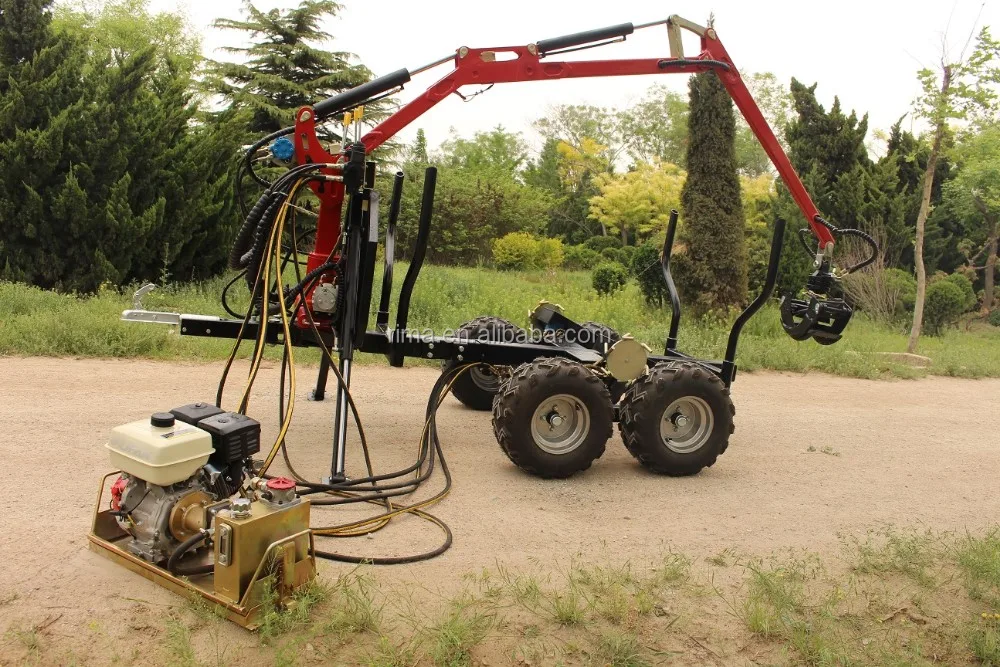

Power Unit | 6.5HP engine | 9HP engine | 6.5HP engine |

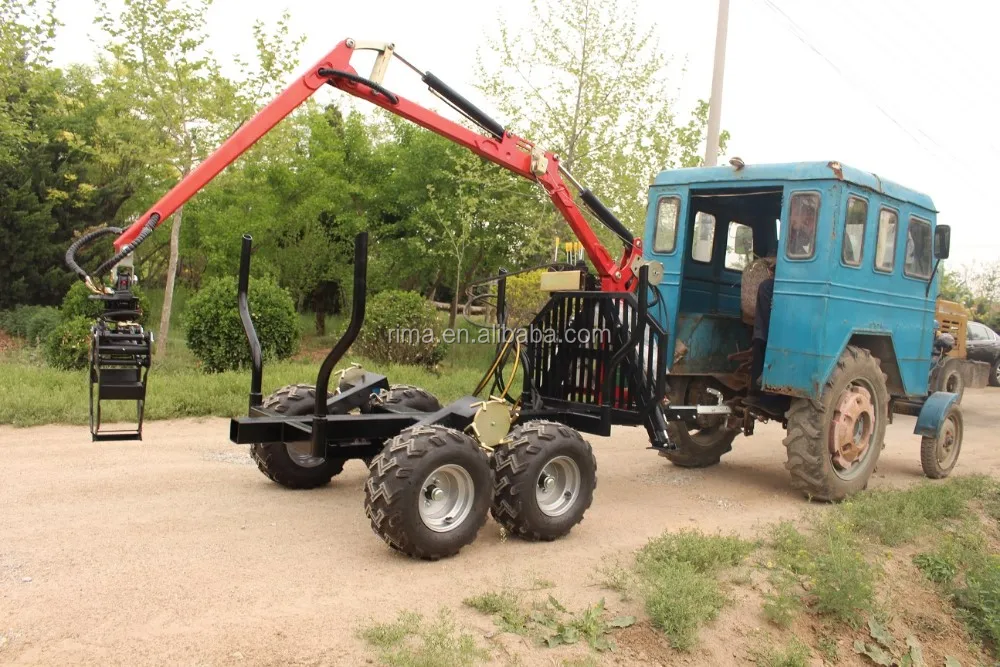

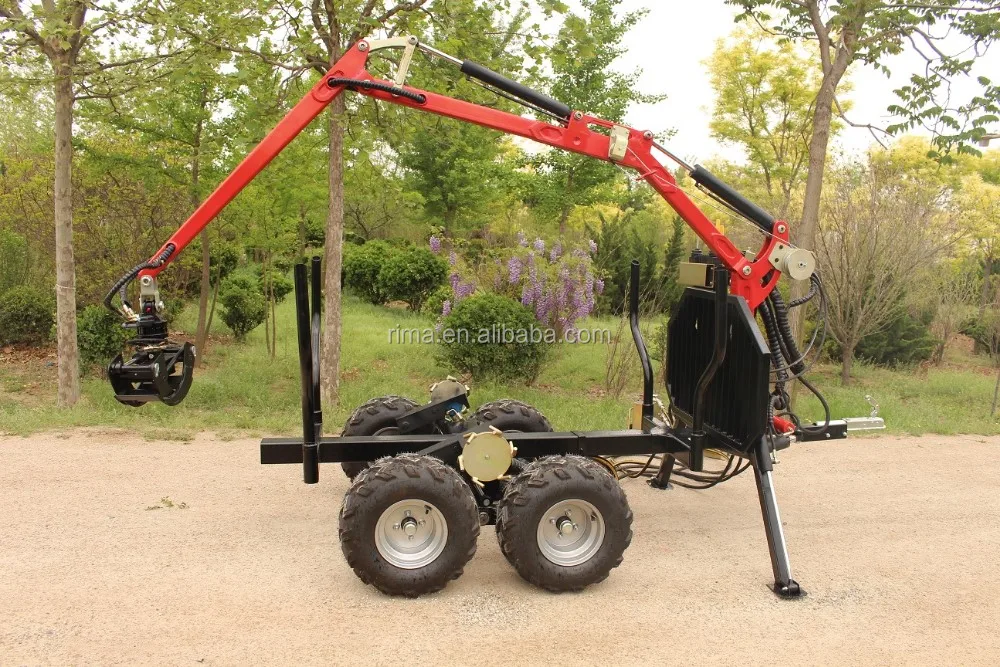

Timber Trailer | |||
Max. load | 2500kg | ||
Total length | 3230mm | ||
Width with wheels | 1440mm | ||
Height | 1600mm | ||
Height of front plate | 1100x700mm | ||
No. of "S" | 2sets | ||
Length of loading area | 2120-3520mm | ||
Loading area volume | 1.6--3m3 | ||
Min. ground clearance | 200mm | ||
Standard wheel | 22x11-10 | ||
4WD drive(OPTIONAL) | x | YES | x |
Swing angle | x | 45° | x |

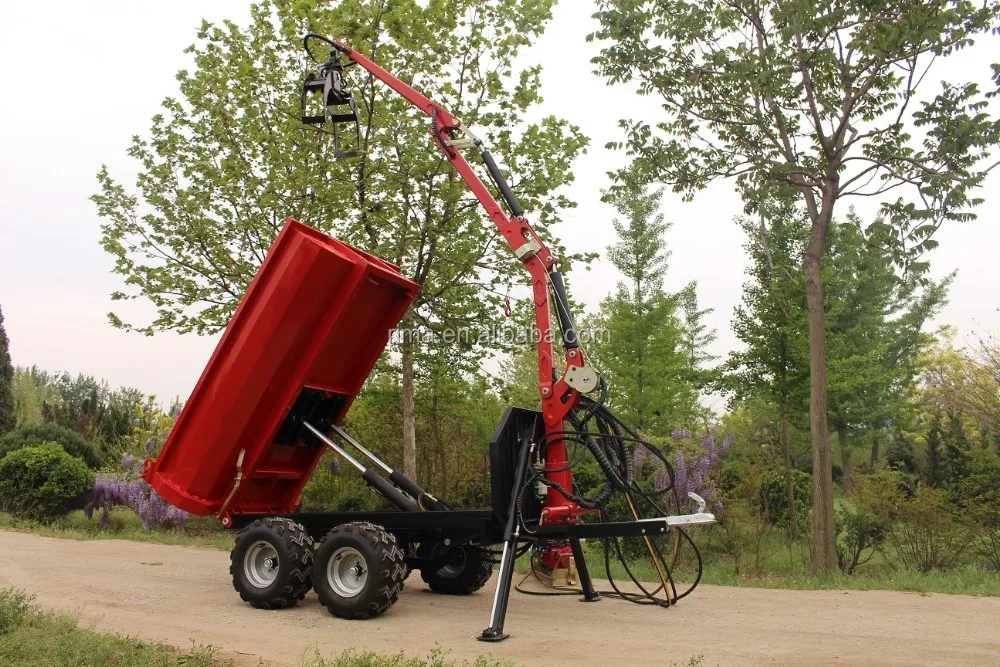

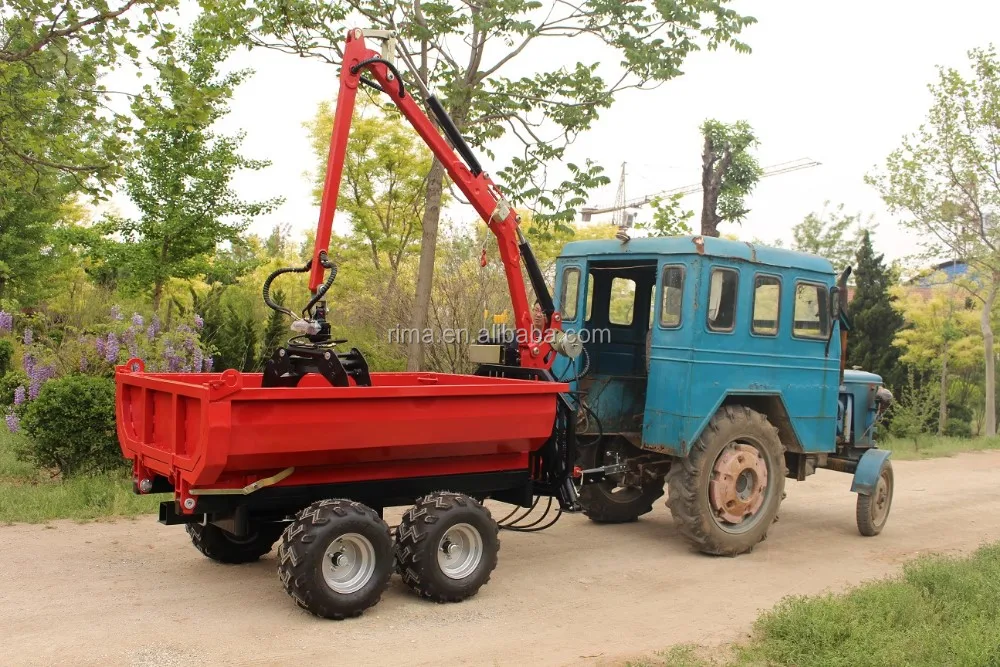

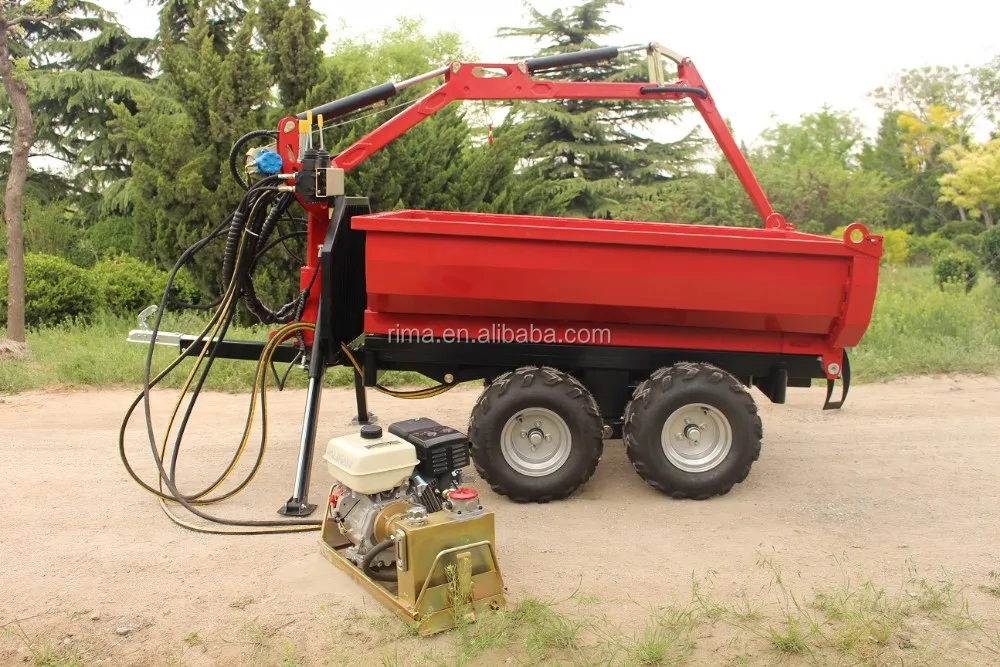

Tipping Box | |||
Load capacity |
x |
x | 1500kg |
Length | 2040mm | ||
Width | 1330mm | ||
Height | 400mm | ||
Volume | 1m3 | ||
Max. deflection angle | 52° | ||
No. of support cylinder | 2pcs | ||
-
