Wood Pellet Boiler Electric Generator Wood Burning Wood Fired Generators

Product details
Model:Wood pellet boiler wood burning wood fired generators;Rated steam pressure Mpa:1.0/1.25mpa;
Color:According to the needs of customers;Supply Ability:600 Set/Sets per Year pellet boiler;
Rated steam temperature:184/194℃;Key Selling Points:Long Service Life;
Local Service Location:Philippines,Pakistan,Bangladesh,Uzbekistan;Port:Qingdao Port, Tianjin Port, Shanghai Port of Wood Fired Steam Boiler;
Packaging Detail:international package;Warranty:1 year;
Pressure:Low Pressure;Style:Horizontal;
Payment Terms:L/C,T/T;Showroom Location:Bangladesh,Uzbekistan;
After-sales Service Provided:Engineers available to service machinery overseas;Structure:Water Tube;
Usage:Industrial;Structure:Water/Fure tube;
Manufacture:yes;Type:Natural Circulation;
Weight:18ton;Place of Origin:Shandong China;
Condition:New;Condition:New;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Fuel:Biomass/Coal/Pellet;
Dimension(L*W*H):5100*1900*3065;Feed water temperature:20℃;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Food Shop,Printing Shops,Construction works ,Energy & Mining;Heat efficiency:>=92%;
Rated capacity:1T;Experience:more than 30 years;
Brand Name:EPC Boiler;Certification:AS ISO9001 ASME GB CE GOST;
Output:Steam;





Product Features:

1. Adopts horizontal type three pass structure and large furnace, to ensure the sufficient combustion, according to different air distribution methods, the air-fuel ratio is basically 1.

2. The boiler adopts an arched tube plate and spirally corrugated tube, changes the quasi-steel body into the quasi-elastic body structure, reduces stress.

3. The spirally corrugated tube strengthens the heat transfer, improve thermal efficiency. The flue gas has the foundation of disturbance, avoids ash depositing in a tube.

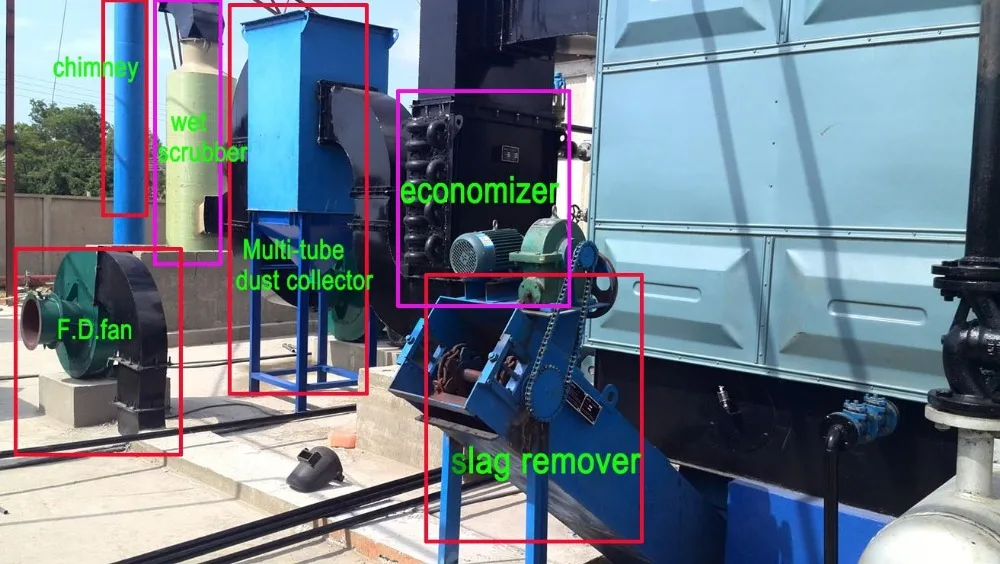

4. Equipped with EPCB economizer, make full use of the heat of flue gas, decrease the exhaust smoke temperature, increase thermal efficiency.

5.Equipped with reliable boiler auxiliaries, such as international famous brand water pumps(Grundfos, CNP, Leo), Siemens brand electric control elements, automatic Fleck Conley brand water softener from the USA, etc.

6. Adopt the latest boiler technology, 100% X-ray flaw detection test, high quality, and long working life, low maintenance fee.

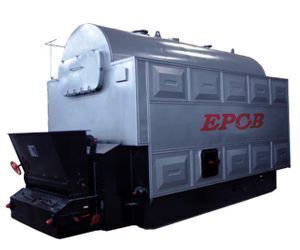

DZL steam boiler
ItemCCS Series of Single Drum Chain Grate Coal/Biomass Fired Steam Boiler
Rated capacity
 t/h
1246810121520
Rated steam pressure
Mpa
0.7/1.250.7/1.25/1.61.25/1.61.25/1.61.25/1.61.25/1.61.25/1.61.25/1.61.25/1.6
Rated steam temperature
170/194170/194/204194/204194/204194/204194/204194/204194/204194/204
Boiler thermal efficiency
 %
78.180.282.382.582.582.982.983.183.1
Body heating area
 m2
22.9948.796.34148.15174.4226.2276374.5669
Fuel & consumption Fuel typeClass II soft coal, Biomass,Wood chips,Wood Pellets
Coal kg/h118.76 231.30 450.79 674.54 899.39 1118.81 1342.57 1674.18 2232.23
Biomass kg/h171.63 334.27 651.48 974.85 1299.81 1616.92 1940.30 2419.54 3226.05
Weight of largest parts of boiler ton182230.14021/1423/1723/1921/2425/24
Size of largest parts of boilerLength mm460058006700700073007600760085009500
Width mm190026002700300030003200320034003800
Height mm290035003500350035003500350035007100





Boiler technical data:





Packaging & Shipping

We choose the best way to pack and load our boilers. All parts will be complete and work well. Professional factory offers professional and safety service.





Why choose our boiler?

1. Hundreds of years of boiler industry experience, more than 60 years of steam boiler production experience, specializing in industrial steam boiler, because the long-term focus, all professional.

2.We have strict quality control system. From the material, welding, to finished boiler shipment, from project , establishment, drawing design, to final audit.

3. Each boiler system part is from first class brand all over the world or China, ensure the high quality.

4.We can provide the best after-sales service, set up service centers or service stations in many countries, and send our engineers to your factory to give you complete installation and commissioning guidance.





Our Main Product scope:

1.Fire tube series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-21MW)

2.Water tube series Horizontal Oil/gas fired boiler (4- 35T/H )

3.Vertical fire tube series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )

4.Large drum chain grate new type water fire tube boilers (1-35T/H, 0.7-29MW)

5. Double drum chain grate series water tube biomass boilers (4-35T/H, 1.4-29MW)

6. Electric boiler boiler ( 10--50 T/H)

7.Oil/Gas fired thermal oil boiler

8.Coal fired thermal oil boiler heater

9. High/low pressure of various fuels,CFB Circulating Fluidized Bed boiler ( 35T--400T )



Company Information



1.Spirit: EPCB 's professional and thoughtful service enables customers to save product costs and create greater value for users.

2.production capacity: More Than 1600 Sets Of Boilers (3.5*106KW/H) Can Be Produced By us Per Year. Class A Boiler Manufacturer. Class A1, A2 Pressure Vessel Manufacturer.

3.Certification: All products have passed ISO9001 & ASME & EAC International Quality Management System Certification, also can provide CE, AS, GOST certification, Customs union.

According to the requirements of customers, we can do local certification, SGS, BV certification and so on.

4.Business Promise: All components of the epcb export boiler system are from the boiler industry for more than 30 years, with stable and reliable operation. The product series has been used by epcb for more than 10 years.

5.Quality: Strict monitoring. From materials, welding to finished boiler shipment; from project approval, drawing design to final review. Advanced automatic welding, 100% through X suspected detection, hydraulic test through the company's quality assurance engineer and authoritative third party approval.

6. User: We are a long-term and stable supplier of many Fortune 500 groups and small and medium-sized enterprises. Such As PetroChina, Sinopec, Nestle, Mercedes-Benz, Coca Cola, etc, .

Our Services:

1. 100%safety, running stably, excellent water level and pressure control, fully automatic operation. Adopt multi-level interlocking protection.

2.Boiler running life > 20years.

2. Good after-sale service. It is free for you to get the damaged spares in warranty period (1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4. Use special paint after assembly. Paint is especially suitable for your climate area, with corrosion resistance, wear resistance and color fastness.
5. If you have any problems during the installation and use, please feel free to contact us. We will contact you at the first time to solve the problems. We have many after-sales service centers, as well as efficient multilingual, telephone, video services and professional and reliable remote services.

6.Comprehensive after-sales service. We can design layout drawings of boiler system according to your actual requirement. Also can arrange engineers to guide installation & commissioning.



Boiler Application:

Steam boiler can be used for product manufacturing process in textile factory, printing and dying, papermaking, hotel, hospital, Refinery, rubber industrial, plastic industrial , chemical, pharmaceutical, power plant, food plan, etc.; and Hot water boiler for heating room, bath, air conditional, and daily life water in the factories, departments and so on.





 FAQ:



Q: Are you manufacturer?

A: Yes, we are manufacturer. our factory is in Qingdao, the capital of China's industrial brands, and  we have our own factory with 120,000m2 area.

Q: Do I get guarantee of products?

A: Yes,  every product is a product that has experienced the third generation and the third generation of our company's product production, 96 quality inspection processes and years of experience.

Q: Do you have any Certificate?

A: Yes. each of our boilers has China national standard certificate, there is also CE ASME EAC or as, we can cooperate to make local boiler certification according to the local needs of users, such as Australian certification, Indian certification, British certification, etc.

Q: How can I pay you?

A: T/T, LC,D/P are all available.

Q: What about the production?

A: Produce time is 10~45days for <6Ton boiler, 25~60 days for >8Ton boiler.

Q: Could you offer some wear parts?

A: Yes, based on decades of long-term user data experience, we can provide vulnerable parts for 2, 4 and 6 years in different schemes, and provide long-term supply at a reasonable price.

Q: What about the maintenance?

A: We have a list of professional maintenance methods. After purchasing the equipment, we can operate step by step according to the maintenance instructions provided by us for your customers.
