Sincerity High Quality Fast Response Ajustable DMF-1-Series Acid Concentration Meter

Supplier: Beijing Sincerity Automatic Equipment Co., Ltd. Tongzhou Branch
Region: Beijing, China
Contact: Ms Zoe Pan
Price: $2500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Medium Temperature:	-300℃~350℃;	Package Type:	Carton Box Package.;
HS Code:	9031809090;	Place of Origin:	China;
Single package size:	54X26X34 cm;	Certificate:	ExdibIICT5;
Brand Name:	Sincerity;	Keywords:	acid concentration meter;
Package:	Carton/Wooden box package;	Selling Units:	Single item;
Single gross weight:	10 KG;	Measuring Theory:	Coriolis Force;
Model Number:	DMF-1 Seires;	Minimum Range:	0-1kg/h;
Accuracy:	±0.2/±0.1 optional;	brand name:	Sincerity;

Product description

Code

Product

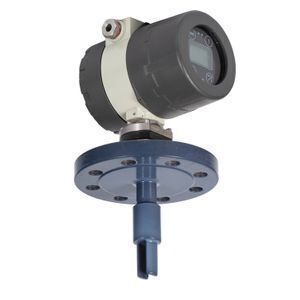

DMF-1-CR Insertion Density Meter

code

Fork Material

SS 316L

HC Hastelloy

SS316L with PTFE

HC Hastelloy with PTFE

code

Output

4-20mA 0-1000Hz RS485 Modbus RTU

code

Power Supply

24VDC

220VAC

code

Transmitter Casing Material

Aluminium Alloy

code

Pressure Class

1.6MPa

4MPa

XXX

Special pressure can be ordered

code

Process Connection

DN50 HG/T 20592-2009 RF

Chuck Connection

XXX

Special connection can be ordered

code

Length

128

Standard 128mm

XXX

Special length can be ordered

code

Extension Pipeline Material

Without extension pipeline

SS 316L

HC Hastelloy

SS 316L with PTFE

HC Hastelloy with PTFE

code

Flange Material

SS 316L

HC Hastelloy

SS 316L with PTFE

HC Hastelloy with PTFE

code

Installation Method

A(XX)

Horizontal Pipeline (XX:Pipeline Size)

B(XX)

Vertical Pipeline (XX:Pipeline Size)

Tank Installation

Other installation method can be special ordered

code

Factory Setting

Factory Setting Options

128

Ordering Information

Product installation

Vibration turning fork :

The density meters can be installed on both pipelines and in the tanks. If the pipeline size is less than DN150, (6” ) then the enlargement of the pipeline size is required.
