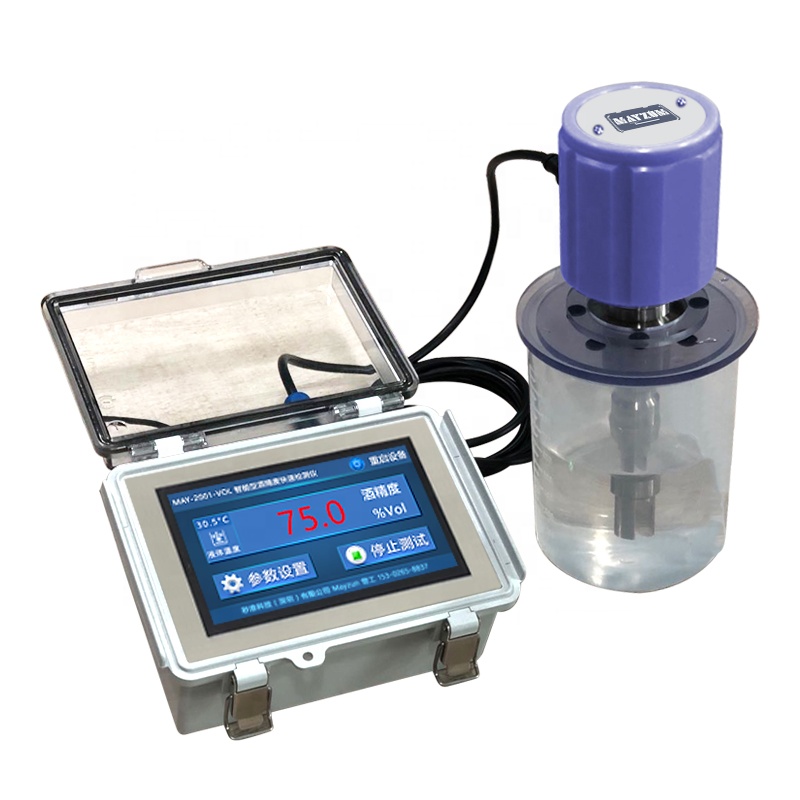

Alcohol Concentration Meter/Online Alcohol Content Meter

Supplier: Shenzhen Qun Long Instrument Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr susie zhang
Price: $2800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Single pack size:	39X19X33 cm	Gross weight per piece:	6.000 kg
Protection class:	Sensor liquid measurement part IP67	model:	May 2001
Origin:	Guangdong, China	feature:	Ultrasonic liquid level probe
Customization support:	Processing	product name:	Alcohol Concentration Meter
type:	Alcohol Concentration Meter	Sensor explosion-proof grade:	Ex d IIC T6Gb
Package preview:		Standard configuration:	Display controller, alcohol level probe, liquid level probe
Function:	Test alcohol content, specific gravity, liquid level	Warranty:	2 years, 2 years
Sensor material:	316L stainless steel	Maximum flow:	100m/min
Sales unit:	single product	brand:	Mezum
Packaging Details:	Standard export packaging

Product Description

Alcohol Concentration Meter/Online Alcohol Content Meter

2 years warranty

original factory

Free shipping (except remote areas)

Kind tips:

Prices include delivery and insurance and vary by type. Please contact our customer service for details.

introduce

Ethanol (alcohol) online specific gravity concentration monitor MAY-2001-JJ

Qunlong Instrument Co., Ltd. specializes in R&D and production of alcohol (ethanol) specific gravity concentration online monitors (detectors, testers, measuring instruments). Namely: online alcohol concentration detector, online alcohol concentration detector, alcohol concentration tester, online alcohol strength detector, online alcohol concentration meter, ethanol refractometer, alcohol concentration meter. According to the principle of ultrasonic vibration/refraction, it is installed on barrels and pipes through clamps, flanges, threads, etc., and monitors alcohol, industrial alcohol, distilled wine, fermented wine, blended wine, brandy, whiskey, vodka, etc. online in real time

in principle

Sound waves produce different vibration frequencies in liquid media with different specific gravity concentrations. Vibration frequency is detected by piezoelectric crystal, after phase shifting and amplifying circuit, then it is converted into specific density digital signal by microprocessor. The instrument is built with the latest liquor alcohol content table database, and through our self-developed fast interpolation table look-up algorithm, it can calculate the alcohol content of liquor in an efficient, high-precision and real-time manner.

Function

MAY-2001 Liquor/wine alcohol content online detection and automatic packaging system can solve the problem of mixing wine with different alcohol content into the same barrel during manual packaging. Since the instrument is online and monitors the alcohol content of liquor in real time, it can solve the data lag problem caused by the manual sampling of the alcohol meter. Finally, the functions of on-line monitoring of liquor alcohol content and automatic distribution of liquor with different alcohol contents into different barrels are realized.

advantage

1. On-line continuous detection, no need for frequent manual sampling in the laboratory, saving a lot of manpower and financial resources 2. Eliminate manual detection errors and ensure product consistency 3. Continuous measurement, fast feedback, improve product quality 4. High degree of automation and correlation Concentration data can be connected to the central control room in the form of networking 5. Not affected by alcohol bubbles, liquid flow, stirring, pressure (compared with density method)

Specifications

Alcohol Concentration Meter/Online Alcohol Content Meter

Please consult customer service for specific functions, configurations and prices

Model	May 2001 - JJ
Measuring range	Alcohol content: 0.0~100.0%vol
		Specific gravity concentration: 0-2.0g/cm3
		Liquid level: 0.0-1000.0mm
		Temperature: 0.0～100.0℃
measurement accuracy	Alcohol content: 0.1%vol
		Specific gravity: 0.0001g/cm3
		Liquid level: 0.1mm
		Temperature: 0.1°C
Measurement error	Alcohol content: ±1%vol
		Specific gravity: ±0.005g/cm3
		Liquid level: ±1mm
		Temperature: ±5°C (heat conduction)
Sensor material	316L stainless steel
measure time	500 milliseconds
installation method	DN50 chuck, vertical installation
ambient temperature	0.0～100.0℃
Sensor explosion-proof grade	Ex d IIC T6Gb
degree of protection	Sensor liquid measurement part IP67
Maximum flow	100m/min
power supply	DC 24V, 2A
Probe length	77mm (the length of the inserted liquid part can be customized)
output signal	Default 24V switch, optional Modbus RTU, 4~20mA output
Standard accessories	Display controller, alcohol level probe, liquid level probe
Other functions	Can be customized according to user needs
optional features	MAY-2001-011 automatic dispensing system
		MAY-2001-012 Ultrasonic liquid level probe
		MAY-2001-013 Hot and cold water automatic mixing system
