New design aluminum ajustable solar power system panel mounting bracket

Click here to contact

Product details

Solar panel type:	Grade A Polycrystalline;	Supply Ability:	50000 Set/Sets per Month;
Brand Name:	EASTEEL;	Packaging Detail:	16Sets Per Carton Carton Size : 46X34X17cm WT/NT : 16kgs/15.5kgs, Wooden Pallet;
Thickness:	40-60mm;	Material:	Aluminum Alloy.Stainless Steel, steel ...;
Port:	Shanghai Port Or Ningbo Port;	Load power:	50kw;
Model Number:	EA SP -010;	Application:	Home, Slope Roof, Pitched Roof;
Snow Load:	1.4KN /M2;	Type:	Adjustable;
Surface Treatment:	Blasting or Anodized;	Place of Origin:	Zhejiang China;
Payment Terms:	L/C,T/T,Western Union;	Output Voltage (V):	24;
Wind load:	up to 60 m/s;

Technical Date
Possible Angle	0°... 45°
Length Wall Mounting Profile(mm)	450mm
Length Module Mounting Profile(mm)	350mm
Material	Aluminum 6063-T5
Surface	oxidation
Package	Each Set for a plastic bag,16sets per carton

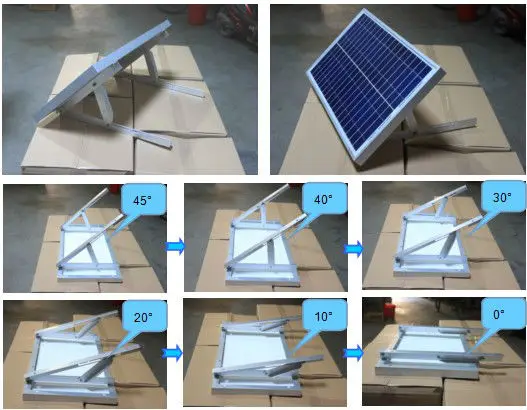

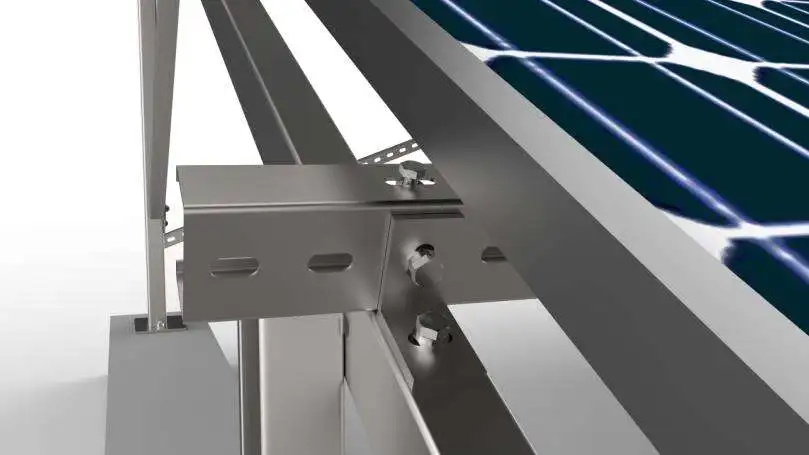

The solar panel bracket is a single module support structure with a tilt angle from0° to 45°.

It is built under high quality standards and designed for maximum durability and corrosion resistance in all environmental
areas.

The bracket ismade of aluminum and by that a very lightweight product.
It is designed for the mounting of one solar module at the ground or a wall.

The package includes all the components (screws, etc.) for the assembling of the bracket.

It is adapted for a range of 5 Watt up to 110 Watt modules.

Specification :

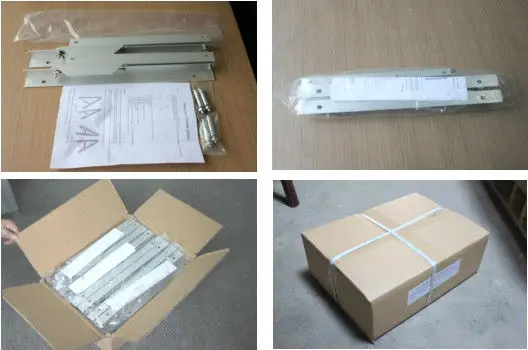

Package :

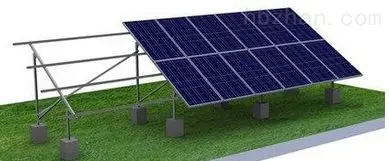

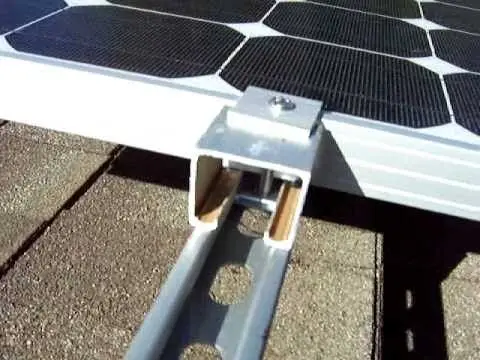

Usage
