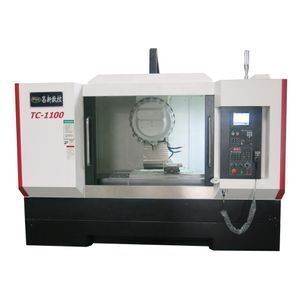

20 Year Factory CE Certified Aluminum Profile CNC Drilling Tapping Milling Machine CNC Machine
- 33480.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Dimension(L*W*H): | 3210x2410x2300mm; | Packaging Detail: | Plywood Case; |
| Weight: | 4ton; | Advantage 5: | High Safety Level; |
| Local Service Location: | Canada,United States,Viet Nam; | Product Name: | Profile CNC Machine; |
| Voltage: | 220v/380v/415v/480v; | Key Selling Points: | High-accuracy; |
| Port: | Shenzhen/Guangzhou; | Supply Ability: | 1000 Set/Sets per Month; |
| After-sales Service Provided: | Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; | X/Y/Z-axis Travel: | 1100/400/300mm; |
| Application: | Milling Drilling Tapping; | Advantage 3: | Fast Speed; |
| Certification: | ISO/CE; | Showroom Location: | Canada,United States,Viet Nam,Malaysia; |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Production Capacity: | depend on specific requirements; |
| Repeat Postioning Accuracy: | ±0.003mm; | Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Retail,Construction works ,Energy & Mining,Advertising Company; |
| Brand Name: | Chansin; | Advantage 4: | High Rigidity; |
| Warranty: | 1 year; | Positioning Accuracy: | ±0.005mm; |
| Advantage 1: | Multi Functional; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Applicable Material: | PVC,Stainless Steel,Carbon Steel,UPVC,Aluminum; | Condition: | New; |
| Power(W): | 5500; | Advantage 2: | High Accuracy; |

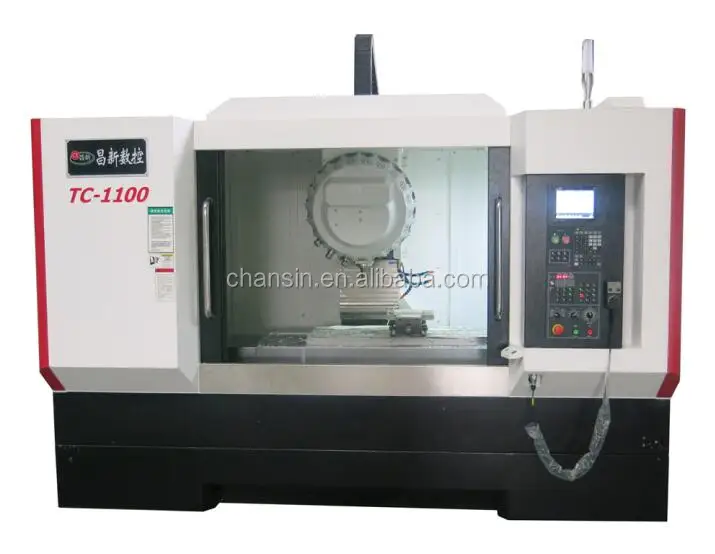

20 Year Factory CE Certified Aluminum Profile CNC Drilling Tapping Milling Machine CNC Machine
| X/Y/Z-axis Travel | 1100/400/300mm |
| Operation System | Syntec/LNC/Mitsubishi/Simens/Fanuc |
| Tool Magazine | Automatic Tool Changer tool number:16/21 |
| Lubrication System | Automatic |
| Distance from Spindle Nose to Table | 120-560mm |
| Distance from Spindle Center to Column Guide Rail | 420mm |
| Working Table Size | 1200*400mm |
| Table Max Load | 300kg |
| T Slot(number x width x space) | 3x14x125mm |
| Spindle Speed | stardard:15000rpm optional:20000rpm |
| Spindle Motor Power | 5.5kw |
| X/Y/Z-Axis Motor Power | 1.5/1.5/3.0kw |
| Rapid Traverse(X/Y/Z) | 36000/48000/48000mm/min |
| Cutting Speed | 5-15m/min |
| Spinldle Taper | BT30 |
| Positioning Accuracy | ±0.005mm |
| Repeat Postioning Accuracy | ±0.003mm |
| Machine Size | 3210*2410*2300mm |
| Machine Weight | 4.0ton |
| Basic Equipment of the Machine | |
| Controller | 1set |
| Monitor LCD | 1set |
| Automatic Lubrication System | 1set |
| Leveling Elements for Installation | 1set |
| Tool Box | 1set |
| Working Area Lighting | 1set |
| Signal Lamp | 1set |
| Air Gun | 1set |
| Coolant System | 1set |
| Automatic Lubrication System | 1set |
| Electrical Cabinet Cooling | 1set |
| Automatic Tool Change System | 1set |
| Telescope Guide Casing | 1set |
| Full Enclosure | 1set |
| Z-axis with Brake | 1set |
| Portable Handwheel for Machine Control | 1set |
| Transformer | 1set |
| Operation Manual and Programming Manual | 1set |

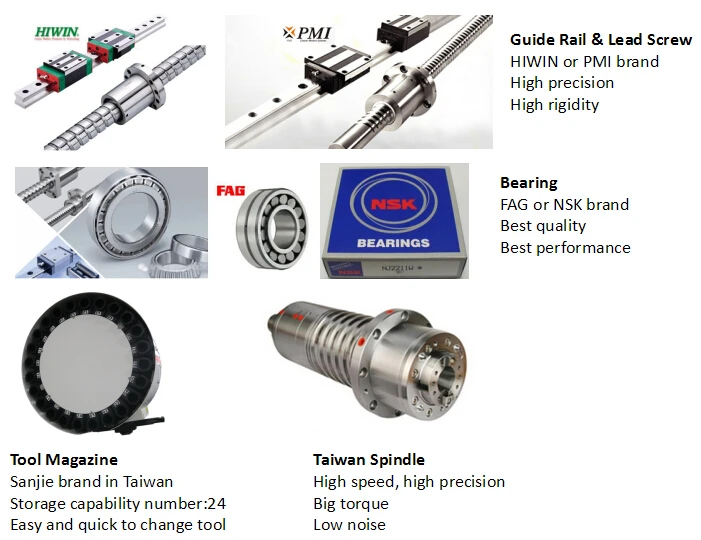

| Main Component Brand | |
| Controller | Syntec/LNC/Mitsubishi/Siemens/Fanuc |
| Tool Magazine | Okada/Sanjet in Taiwan |
| Bearing | NSK in Japan FAG in Germany |
| Lead Screw and Guide Rail | Hiwin in Taiwan |
| Spindle | Volis in Taiwan |
| Unclamping Cylinder | Beiju/Haocheng in Taiwan |
| Relay/Breaker | Schneider /Merlin Gerin in France |
| Air Cooler in the electrical cabinet | Freezer in China |
| Transformer | Aohengda in China |
| Switch Power Supply | Mean Well in Taiwan |
| Handwheel | Nemicon in Japan |
| Full Enclosure Splash Guard | Jiancheng in China |
