Pharmaceutical Vacuum Drying Oven

Supplier: Shanghai Iven Pharmatech Engineering Co., Ltd.
Region: Shanghai, China
Contact: Ms NewIven Iven
Price: $120000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	GMP,ISO,CE,TUV;	Applicable Industries:	Manufacturing Plant,Pharmaceutical;
Packaging Detail:	Pharmaceutical Vacuum Drying Oven with adopts wooden cases for packaging ,which is worthy of sea transportation .;	Condition:	New;
Dimension(LWH):	280013002400mm;	Place of Origin:	Shanghai China;
Type:	Vacuum Drying Equipment;	Warranty:	1 year;
Key Selling Points:	Automatic;	Application:	Medicine Processing;
Voltage:	380V;	Weight:	Drying Oven;
Brand Name:	IVEN;	After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Power(W):	27KW;
Supply Ability:	10 Set/Sets per Year Pharmaceutical Vacuum Drying Oven;	Product name:	Pharmaceutical Vacuum Drying Oven;
Port:	Shanghai;

Product Description

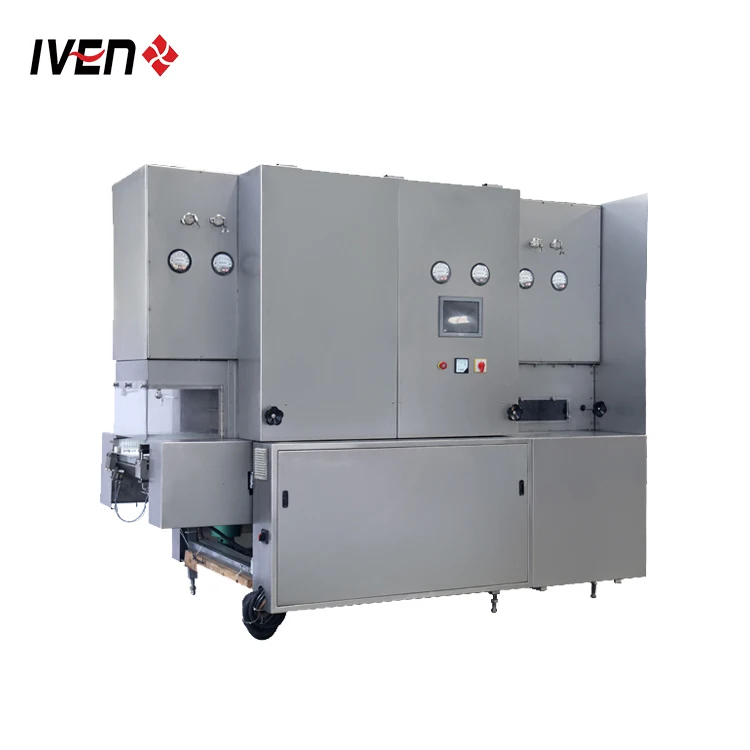

It is mainly used for sterilizing and drying of ampoules, vials, oral liquid bottle, and other glass bottle in the pharmaceutical industry.

Machine can automatically complete whole procedure of bottle in-feeding, pre-heating, sterilizing, cooling and bottle out-feeding . Use laminar flow principle and hot air high-speed disinfection technology; make container in the sealed tunnel achieve the national cleanliness Class A standard. With the good heat distribution and depyrogenation, currently it’s the most popular and best drying and sterilizing equipment .

This unit can be used separately, also can be combined into a production line with bottle washing machine and filling machine.

The innovative structure is easy for maintenance

Adopts new mesh belt with side plates conveying, use sprocket chain drive, avoid bottle drop, bottle broken and bottle collapse caused by the bottom belt and side belt deviation or crawling off.

High-temperature hot air blower use water circulation cooling system, take away bearing’s heat through the water circulation.

Stainless steel electrical heating, heat rapid and well-distributed.

Hinge type heating seat, maintenance more convenient.

Wide-open heating area, make equipment cleaning and maintenance more convenient.

Drawer type filter mounting seat, make replacement and maintenance more convenient.

RSM series technical parameters

Model	Length (mm)	Width (mm)	Height (mm)	Heating power
RSM420/27	2800	1300	2400	27KW
RSM620/38	2800	1660	2400	38KW
RSM620/60	4300	1600	2400	60KW
RSM900/80	5260	1960	2480	80KW
RSM900/100	6800	1960	2480	100KW

IVEN Can Do !

IVEN provides integrated engineering solution for worldwide pharmaceutical and medical factory include the clean room, auto-control and monitoring system, pharmaceutical water treatment system, solution preparing and conveying system, filling and packing system, automatic logistics system, quality control system and central laboratory and etc. According to the pharmaceutical industry's regulatory requirements of different countries and customer's individual demand, IVEN carefully customizes engineering solutions of turnkey projects and helps customers to win the target markets, IVEN creates value to customers.

Turnkey Project for IV Solution Plant from A to Z

• Project Design
• Pharmaceutical Water Treatment
• Solution Preparation
• IV Solution Production Line
• Sterilization
• Inspections Packing
• Clean Room & HVAC
• Stability Chamber
• Laboratory Instruments
• Utilities
• Documentation & Qualification
• Installation, Commissioning, Training
• Service
