GYB 30L stainless steel high pressure piston milk homogenizer

Product details
Voltage:380V, 50Hz;Dimension(L*W*H):1300 * 980 * 1290;
Brand Name:haibi High Pressure Homogenizer;Payment Terms:T/T;
Warranty:1 year;Place of Origin:Shanghai China (Mainland);
After-sales Service Provided:Field maintenance and repair service;After-sales Service Provided:Engineers available to service machinery overseas;
Supply Ability:500 Set/Sets per Year High Pressure Homogenizer;Power(W):22kw;
Weight:1430kg;Packaging Detail:wooden case GYB Stainless Steel High Pressure Piston Homogenizer;
Certification:ISO,GMP;Working Pressure (MPa:0~32;
Processing Types:Milk;name:High Pressure Homogenizer;
Condition:New;Port:Shanghai;
Processing:Homogenizer;Max. Pressure (MPa):40;
Model Number:GYB;
Product Description

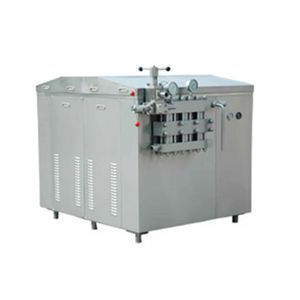

GYB Stainless Steel High Pressure Piston Homogenizer

 Homogenizer

It is suitable for the homogenizing of liquid products whose viscosity is lower than 0.2Pa and whose temperature is lower than 80C such as dairy, beverage, makeup, and medicine and so on. This equipment transports the processed material to homogenizing vale in high pressure way by triple plunger pump, making the material receive complex force such as turbulence, cavity, cut when the material flow past the little space between the valve plate and the valve seat to reach the purpose of emulsification and homogenizing.
Structure of Homogenizer
The stator works in concert with rotor, the working head (the stator and rotor forging manufacturing) is claw type structure, double suction and the shear efficiency is high.
Usages of Homogenizer
Application in biological medicine; Food industry; Day care; Coating printing ink; Nano-materials; Petroleum chemical; Printing and dyeing auxiliaries; Paper industry; Pesticide and fertilizer; Plastic rubber; Power electronics and other fine chemical industry.

Characteristics of Homogenizer
1. With high stability, low noise, easy clean, flexible advantages. It can be widely used in industrial production of emulsion, uniform and scattered.
2. Making the material refined mix under the triple action of crowding inquiry, strong impact and loss-pressure expansion.
3. For soybean milk and other kinds of dairy drink milk, under high pressure for homogeneous
4. It can improve the degree of fineness and loose, making its inherent quality obviously improved.
5. It can prevent or reduce material liquid to layered, improve the look of the material liquid effect, making its color brighter, fragrance thicker, tastes well.

 Technical parameters:

Model

Flow (L/H)

Max.

Pressure (MPa)

Working

Pressure (MPa)

Weight
(kg)

Outer Size
(cm)

Power (Kw)

GYB30-40

30

40

0~32

230

95×75×120

2.2

GYB500-25

500

25

0~20

670

100×75×110

5.5

GYB1000-25

1000

25

0~20

700

100×75×110

7.5

GYB1500-25

1500

25

0~20

720

100×75×110

11

GYB1000-30

1000

30

0~24

720

100×75×110

11

GYB300-40

300

40

0~32

670

100×75×110

5.5

GYB500-40

500

40

0~32

670

100×75×110

7.5

GYB300-60

500

60

0~48

720

100×75×110

11

GYB500-60

300

60

0~48

700

100×75×110

7.5

GYB300-100

500

70

0~56

720

100×75×110

11

GYB5000-20

5000

20

0~16

1500

130×125×150

37

GYB2000-25

2000

25

0~20

1150

120×105×140

15/18.5

GYB2500-25

2500

25

0~20

1250

130×106×145

22

GYB3000-25

3000

25

0~20

1350

130×110×145

22/30

GYB4000-25

4000

25

0~20

1400

130×125×150

37

GYB2000-30

2000

30

0~24

1350

130×125×145

22

GYB1000-40

1000

40

0~32

1200

120×105×140

15

GYB1500-40

1500

40

0~32

1350

130×120×145

22

GYB2000-40

2000

40

0~32

1400

130×120×145

30

GYB2500-40

2500

40

0~32

1500

130×125×150

37

GYB1000-60

1000

60

0~48

1350

130×120×145

22

GYB1500-60

1500

60

0~48

1500

130×125×150

30

GYB1000-80

1000

80

0~64

1500

130×125×150

30

GYB5000-25

5000

25

0~20

2000

210×110×105

45
