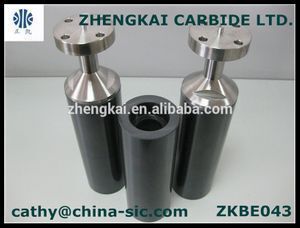

High temperature advanced ceramic silicon carbide bushing sic sleeves
- 0.01 piece
| Brand Name: | zhengkai; | Payment Terms: | T/T; |
| Outside Diameter: | 5 - 300 mm; | Port: | ningbo port or China port; |
| Supply Ability: | 10000 Piece/Pieces per Month; | Bore Size: | 5 - 300 mm; |
| Model Number: | all sizes; | Delivery Detail: | about 15 days; |
| Type: | Special; | Place of Origin: | Zhejiang, China (Mainland); |
| Material: | RBSIC (SISIC)/SSIC/SIC+C; | Packaging Detail: | export standard packaging; |
The company mainly offers sic bearing .Please feel free to contact us, we are sure both of us will have plenty of opportunities working together.
SEND US DRAWING!
1.Zhengkai Carbide Co., Ltd. Technical Parameter
1) ZKS-1: Reaction bonded (self-combine) SIC
2) ZKS-2: Self sintered pressure less SIC (SSIC)
3) ZKS-3AZKS-3B: SIC with 5 - 30% graphite content
4) ZKS-4: SIC with controlled porosity
| ZKS-1 | ZKS-2 | ZKS-3 AB | ZKS-4 |
SiC Purity(%) | ≥90 | ≥ 98 | Graphite content | Control porosity |
Granuliform(um) | 8~20 | 4~10 | ≤10 | |
Density(g/cm3) | ≥3.05 | ≥ 3.10 | 2.65~2.90 | 2.65 |
Hardness | HRA >90 | HV2800 | HRA >80 | HV 1800 |
3 point bending strength (Mpa) | 350~450 | 400~500 | 250~300 | 200~250 |
Compressive strength(Mpa) | > 2500 | >2500 | >1500 | 1500 |
fracture Toughness |
| 3.50~4.60 |
|
|
Modulus of elasticity (GPa) | >350 | 380~410 | 200 | 250 |
Thermal conductivity (Cal/cm.s.0c) | 0.3 | 0.2 |
|
|
Coefficient of thermal expansion(mm/mm0k) | 4.5 | 4.2~5.2 | 3.0 | 3.5~4.0 |

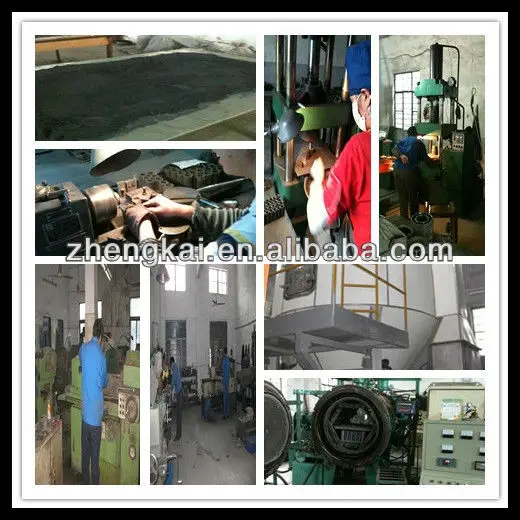

2.PRODUCTION

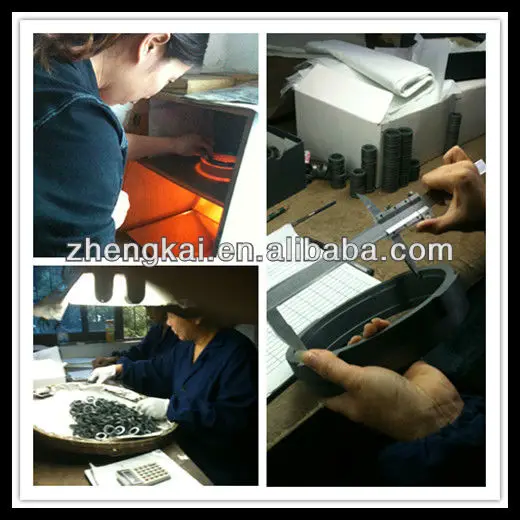

3.INSPECTION

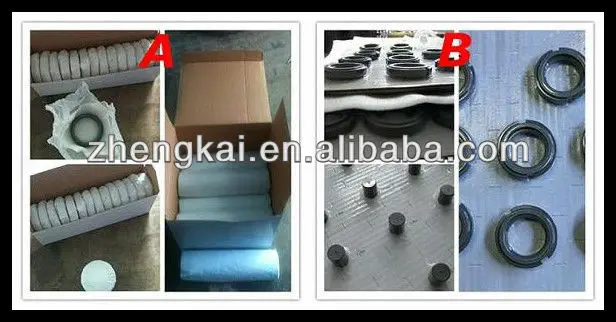

4.PACKING
5.For any questions,pls feel free to contact me:
skype: dns1103
mobile: 86-13685880092
