Good Quality FA231 Cotton carding machine for spinning

Product details
Color:customized;Supply Ability:100 Set/Sets per Month;
Capacity:150-500kg one hour;Dimension(L*W*H):3300mm*1800mm*1800mm;
Warranty:1 year;After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service;
Certification:ISO9001;Final products:cotton yarn;
Width:1m-2m;Place of Origin:Shandong China (Mainland);
Automatic Grade:Automatic;Features:High Production Cotton card;
Weight:5500KG;Material:Raw cotton;
Power(W):4~5.5kw;After-sales Service Provided:Engineers available to service machinery overseas;
Application:open end spinning,ring spinning;Condition:New;
Production Capacity:99%;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Application:Cotton Card yarn;Voltage:380v-440V;
Packaging Detail:export standard type;Port:QINGDAO;
Brand Name:LEBON;
Product Description

Good Quality spinning machinery FA231 cotton carding machine

TECHNICAL DATA:



Cotton card machine suitable for processing raw material of cotton,medical cotton,surgical cotton, cotton-type chemical fiber and medium length synthetic fiber.

Carding machine is a patent product that successfully researched & developed by our scientific personnel.It is the most advanced fiber carding machine in our country.The greatest advantage is that it adopts a big roller and several small rollers with low rotate speed (1400whirl/min) to card the three dimension schrew cotton,and the carding rate is over 98% and it will not damage the cotton during the processing . Especially,there is a metal exploration warning alarm immediately, stop the machine and spill . This cotton carding machine has the advantages of small volume,high quality,long longevity and low maintenance rate.

And it can automatically put cotton into guarantee the safety of the operator

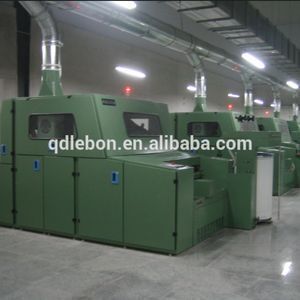

Our Cotton Card Spinning Machine Workshop:



Cotton Carding Machine Main Technical parameters :



Width

1020 mm

Delivery Speed

20-220 m/min

Output

25-80kg/h

Sliver weight

3.6-6.5g/m

Air amount for continuous dust suction

3500m3/h,

Air pressure -850~950pa

Compressed Air

0.4-0.7Mpa



Air consumption

0.01M3/h,if the machine is equipped with closed-loop autoleveller,the air consumption is 0.03m3/h

Floor Space

3132*1974mm(L*w)(without coiler)

Total Power

6.88kw

Carding Machine Net Weight

5500kg





Our Cotton Card Spinning Machine Spare Parts Highlight:





Factory show





Exhibition Show





Teamwork



Packaging & Shipping





Our Services



1.One year of guarantee,forever technical and spare parts support.

2.Our factory provide pre-testing when customer come to our factory check goods.

3.We provide detail technical specification, electric diagram, installation book, operating manual, drawings etc.

4.We can send engineers to customer factory to help installation and training workers if customer required.





Company Information



Qingdao Lebon Industry Co.,ltd a famous company with 28 years of experience which in design and manufacturing with total area 20,000 square meter workshop,158 workers, we have done a good job in researching and developing equipment and products. With advanced technology, we promise to customers that all product delivered are qualified ones that have already been tested.



Lebon specializes in design,manufacturing,mainly produces medical cotton machine,spinning carding machine,weaving machine(water jet loom/medical gauze air jet loom),needle punching machine,wadding line,quilting machine and nonwoven machine,finish medical cotton and nonwoven product.



We have a professional technical team that provides such supports as techniques, technology and equipment. In addition, we have a well-trained and experienced team providing good after-sale services. We also provide with installation, testing and training services according to customers’requirements.



We warmly welcome you to contact us for more relative information about our product.We are sincerely looking forward to cooperating with all customers.
