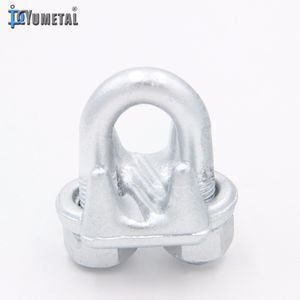

G450 Drop Forged Wire Rope Clips US Type
- 1.26 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Application: | General Industry,Heavy Industry,Mining,Oil & Gas,Retail Industry,Water Treatment; | Packaging Detail: | Packed in sealed plastice bag, carton box, pallet; |
| Port: | Qingdao, Shanghai, any seaport in China; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union; |
| Clips type: | Steel wire rope clips; | Supply Ability: | 600 Ton/Tons per Month; |
| Delivery Detail: | About 30-45days; | Measurement system: | Imperial (Inch); |
G450 Drop Forged Wire Rope Clips US Type

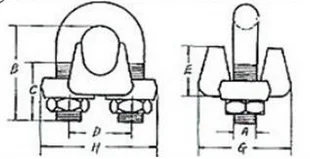

| Art No. | Size | Dimensions (mm) | |||
| inch | mm | A | B | C | |
| CL0201 | 1/8" | 3-4 | 0.22 | 0.72 | 0.44 |
| CL0202 | 3/16" | 5 | 0.25 | 0.97 | 0.56 |
| CL0203 | 1/4" | 6-7 | 0.31 | 1.03 | 0.60 |
| CL0204 | 5/16" | 8 | 0.38 | 1.38 | 0.75 |
| CL0205 | 3/8" | 9-10 | 0.44 | 1.50 | 0.75 |
| CL0206 | 7/16" | 11 | 0.50 | 1.88 | 1.00 |
| CL0207 | 1/2" | 12-13 | 0.50 | 1.88 | 1.00 |
| CL0208 | 9/16" | 14-15 | 0.56 | 2.25 | 1.25 |
| CL0209 | 5/8" | 16 | 0.56 | 2.38 | 1.25 |
| CL0210 | 3/4" | 18-20 | 0.62 | 2.75 | 1.44 |
| CL0211 | 7/8" | 22 | 0.75 | 3.12 | 1.62 |
| CL0212 | 1" | 24-26 | 0.75 | 3.50 | 1.81 |
| CL0213 | 1-1/8" | 28-30 | 0.75 | 3.88 | 2.00 |
| CL0214 | 1-1/4" | 32-34 | 0.88 | 4.25 | 2.13 |
| CL0215 | 1-3/8" | 36 | 0.88 | 4.63 | 2.31 |
| CL0216 | 1-1/2" | 38 | 0.88 | 4.94 | 2.38 |
| CL0217 | 1-5/8" | 41-42 | 1.00 | 5.31 | 2.62 |
| CL0218 | 1-3/4" | 44-46 | 1.13 | 5.75 | 2.75 |
| CL0219 | 2" | 48-52 | 1.25 | 6.44 | 3.00 |
| CL0220 | 2-1/4" | 56-58 | 1.25 | 7.13 | 3.19 |
| CL0221 | 2-1/2" | 62-65 | 1.25 | 7.69 | 3.44 |
| CL0222 | 2-3/4" | 68-72 | 1.25 | 8.31 | 3.56 |
| CL0223 | 3" | 75-78 | 1.50 | 9.19 | 3.88 |
| CL0224 | 3-1/2" | 85-90 | 1.50 | 10.75 | 4.50 |
