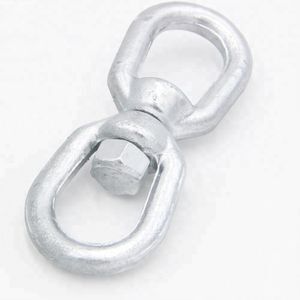

Hot Dip Galvanized Carbon Steel G-402 Regular Chain Swivels With Eye & Eye
- 0.40 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Delivery Detail: | About 30-45days; | Application: | General Industry,Heavy Industry,Mining,Oil & Gas,Retail Industry,Water Treatment; |
| Supply Ability: | 500 Ton/Tons per Month; | Packaging Detail: | Packed in sealed plastice bag, carton box, pallet; |
| Port: | Qingdao, Shanghai, any seaport in China; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union; |
| Measurement system: | Imperial (Inch); | Swivels type: | Swivels eye-eye; |
Hot Dip Galvanized Carbon Steel G-402 Regular Chain Swivels With Eye & Eye
| Art NO. | Size | WLL | Weight | Dimensions(in) | ||||||||
| in | lbs | lbs | A | B | C | D | J | M | R | S | T | |
| CS0201 | 1/4 | 850 | 0.21 | 1.25 | 0.69 | 0.75 | 1.06 | 0.69 | 0.31 | 2.94 | 1.69 | 3.44 |
| CS0202 | 5/16 | 1250 | 0.39 | 1.63 | 0.81 | 1.00 | 1.25 | 0.81 | 0.38 | 3.56 | 2.06 | 4.19 |
| CS0203 | 3/8 | 2250 | 0.71 | 2.00 | 0.94 | 1.25 | 1.50 | 1.00 | 0.50 | 4.31 | 2.50 | 5.06 |
| CS0204 | 1/2 | 3600 | 1.32 | 2.50 | 1.31 | 1.50 | 2.00 | 1.31 | 0.63 | 5.44 | 3.19 | 6.44 |
| CS0205 | 5/8 | 5200 | 2.49 | 3.00 | 1.56 | 1.75 | 2.38 | 1.50 | 0.75 | 6.56 | 3.88 | 7.81 |
| CS0206 | 3/4 | 7200 | 4.02 | 3.50 | 1.75 | 2.00 | 2.63 | 1.88 | 0.88 | 7.19 | 4.31 | 8.69 |
| CS0207 | 7/8 | 10000 | 6.25 | 4.00 | 2.06 | 2.25 | 3.06 | 2.13 | 1.00 | 8.38 | 5.00 | 10.13 |
| CS0208 | 1 | 12500 | 8.95 | 4.50 | 2.31 | 2.50 | 3.50 | 2.38 | 1.13 | 9.63 | 5.75 | 11.63 |
| CS0209 | 1-1/4 | 18000 | 16.37 | 5.63 | 2.69 | 3.13 | 3.69 | 3.00 | 1.38 | 11.13 | 6.75 | 13.36 |
| CS0210 | 1-1/2 | 45200 | 45.79 | 7.00 | 4.19 | 4.00 | 4.19 | 4.00 | 2.25 | 17.13 | 10.00 | 20.13 |
