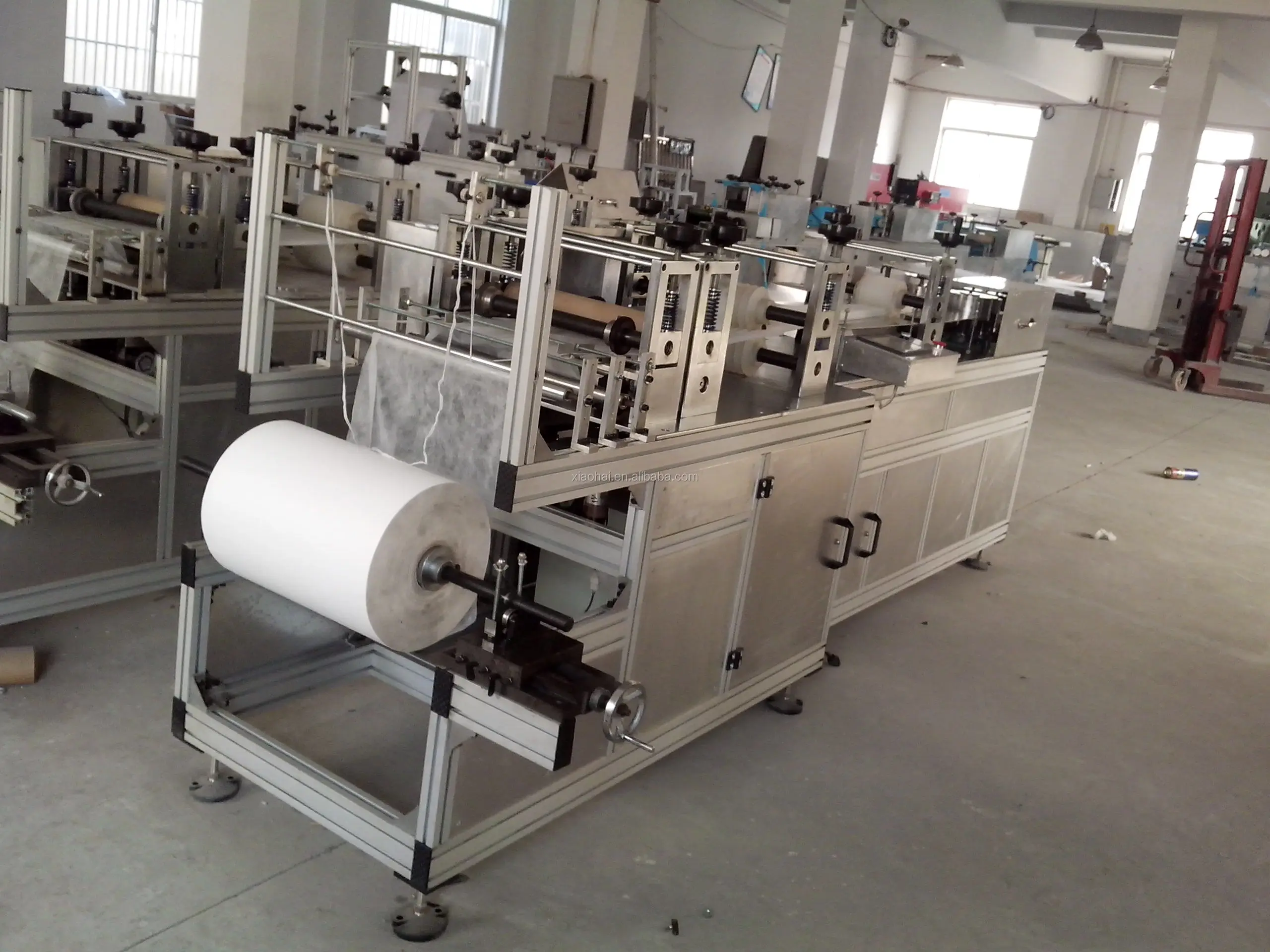

Nonwoven PE Shower Cap Making Machine For Bath Hotel
-
Supplier: Wenzhou Xiaohai Import And Export Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Linda Cheung -
Price: $7000.00 /set -
Min. Order: 1 set
| Power(W): | 3Kw; | Supply Ability: | 20 Set/Sets per Month; |
| Packaging Detail: | wooden case; | Condition: | New; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | high quality: | good; |
| Dimension(L*W*H): | 3800(L)*800(W)*1100(H)mm; | Place of Origin: | Zhejiang China; |
| Brand Name: | XIAOHAI; | Port: | shanghai port; |
| Payment Terms: | L/C,T/T,Western Union; | After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support; |
| Certification: | CE/ISO9001; | Production Capacity: | 120pcs per minute; |
| Weight: | 800KG; | Voltage: | 380V; |
| Warranty: | 1 year; | Applicable Industries: | Hotels,Manufacturing Plant,Farms,Restaurant,Home Use,Retail,Food Shop; |

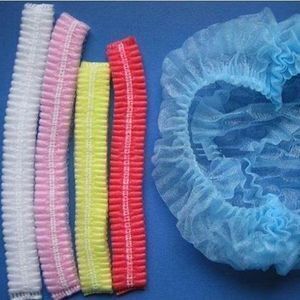

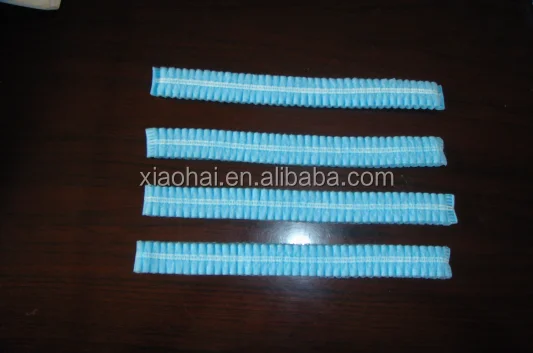

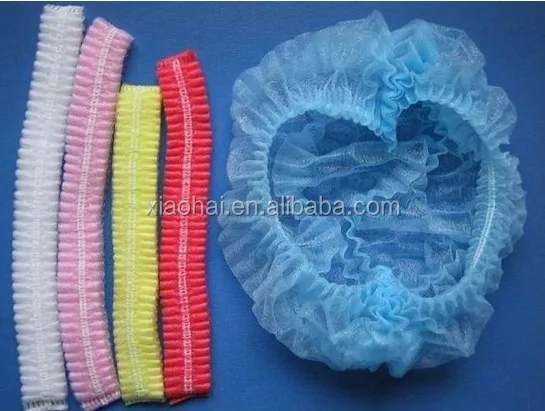

with double elastic or single elastic,but we suggest you to use double elastic.
Material:
Non-woven: 10g-20g / Diameter≤80CM / Width:48CM
PE:10g-15g / Diameter≤80CM / Width:48CM
A Process Description :
Elastic, non-woven farbic feeding——Edge Folding——shaping——Welding——cutting
B Technical Parameter :
Supply Power: AC380V 50HZ
Power : 4.5kw
Designed Speed : 120pcs/minute
Optimum Speed : 60-80pcs/minute
Dimensions : 3680*980*1500mm(L*W*H)
Net Weight:650kg
C Operating Program
1.Adjust the non-woven farbic plate and tension equipment.
2.Pull the non-woven farbics into folding and welding manually.
3. Elastic feeding and pull into the Ultrasonic welding.
4.Open the main machine slowly,then start to welding and cutting.
D Maintenance
1.Please start the ultrasonic welding equipment before open the main machine to avoid the superimposed load damage the ultrasonic equipment.
2.Adjust the ultrasonic mould pressure,too big may burnout it,too small may press unwell.
3.The pulling should be in balance when elastic feeding,or it may follding unwell.
E Advantages
1.This machine has aluminum alloy rack and will not get rusted permanently.
2.It’s touch-operated.
3.With imported brake and motor,it has low noise.
4.With ultrasonic welding,automatically controls tension.
5.With no manual operation from feeding materials.
F Spart part
Wrench: 1sets
-
