Fully automatic small baseball cap ironing machine single head cap making machine

Supplier: Hangzhou Anysew Garment Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Ms Iris Shi
Price: $1350.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	not any	Supply capacity:	5000 sets per month
brand:	/	weight:	75
Dimensions (LWH):	675893cm	strength:	3KW
port:	Any seaport or airport in China	Production capacity:	100%
Health status:	new	Core components:	engine
Warranty:	1 year	payment terms:	L/C, T/T
Applicable industries:	manufacturing plant, retail	Marketing Type:	normal product
Mechanical test report:	not available	Core component warranty:	1 year
Certification:	ISO 9001	Package:	Plywood box with steel pallet
Origin:	Zhejiang, China	After warranty service:	online support
Voltage:	220V or 110V	Video shipment inspection:	if
aftersale service provided:	online support	Packaging Details:	wooden box

Product Description

Fully automatic small baseball cap ironing machine single head cap making machine

Model	SIC01
Boiler start low pressure	1.5Pa
Voltage	220V or 110V
head	single head
Mold temperature setting	Adjustable (conventional 100-120°C)
work system	pneumatic
boiler	suction boiler
Hydration	automatic
Adjustment range	0-2cm (eg mold size 58cm is suitable for hat size 58-60cm)
Boiler heating power	3Kw
Mold heating power	1Kw
Wiring requirements	6 square copper wire
Air compressor requirements (optional, not standard)	8L
work efficiency	Iron 1 cap for about 7 seconds
gross weight	75KG
Package Size	675893cm

Specification:

Suction boiler, without water shortage protection device, easy to operate.
Imported relay solenoid valve, stable operation.
Fast heating, small footprint.

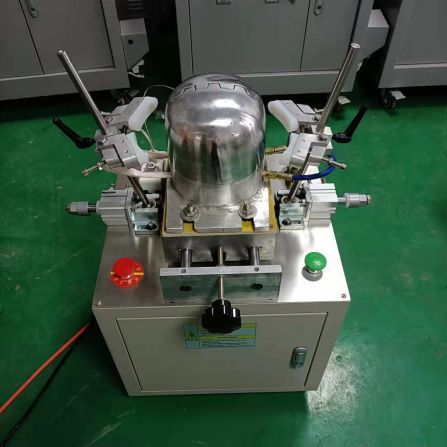

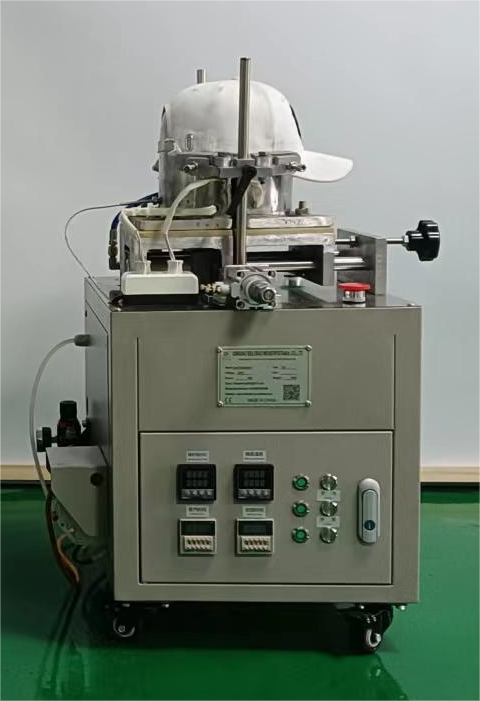

detailed image
