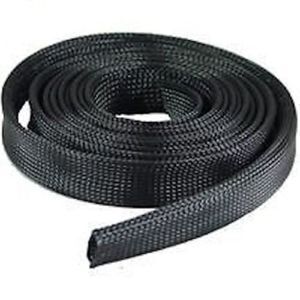

Hampool Factory Supplied Auto Wire Cable Lot Sleeving Sheathing 10M PET Expandable Braided Sleeve
-
Supplier: Shanghai Hampool Enterprise Co., Limited -
Region: Shanghai, China -
Contact: Ms Sophia Pu -
Price: $0.05 / >=1000 meters -
Min. Order: 1000 meters
Product details
| Operating temperature: | -50℃~150℃; | Material: | Polyester; |
| Size: | 3mm-100mm; | Model Number: | HP-EBS(PET); |
| Application: | wire and cable protection; | Product Name: | expandable braided sleeve; |
| Packaging Detail: | 3-16mm 1000m/roll, 20-80mm 50m/roll; | Cutting Tool: | Hot Knife; |
| Brand Name: | HP; | Certificate: | UL, ISO, SGS, IMDS; |
| Melt Point: | 250C +/- 5C; | Place of Origin: | Shanghai China; |
| Supply Ability: | 2000000 Meter/Meters per Month; | Type: | Insulation sleeve; |
| Tensile Strength: | 3 Times; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Port: | Shanghai; | Flammability: | VW-1; |
| Color: | Black; |

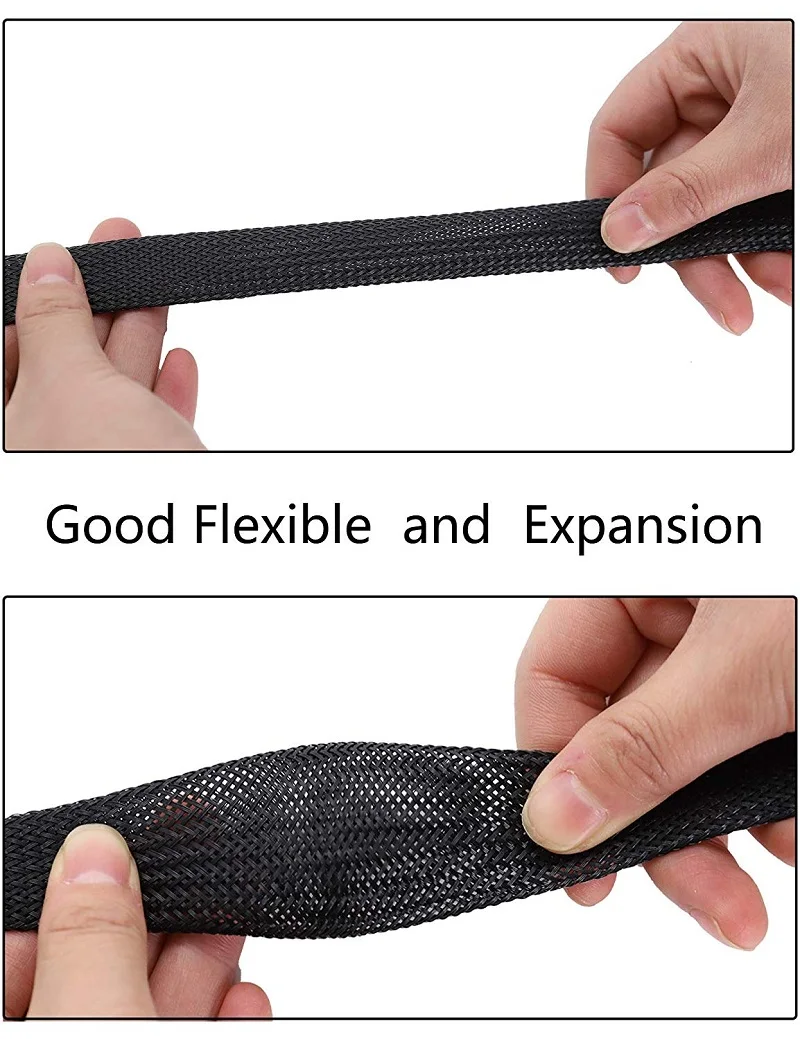

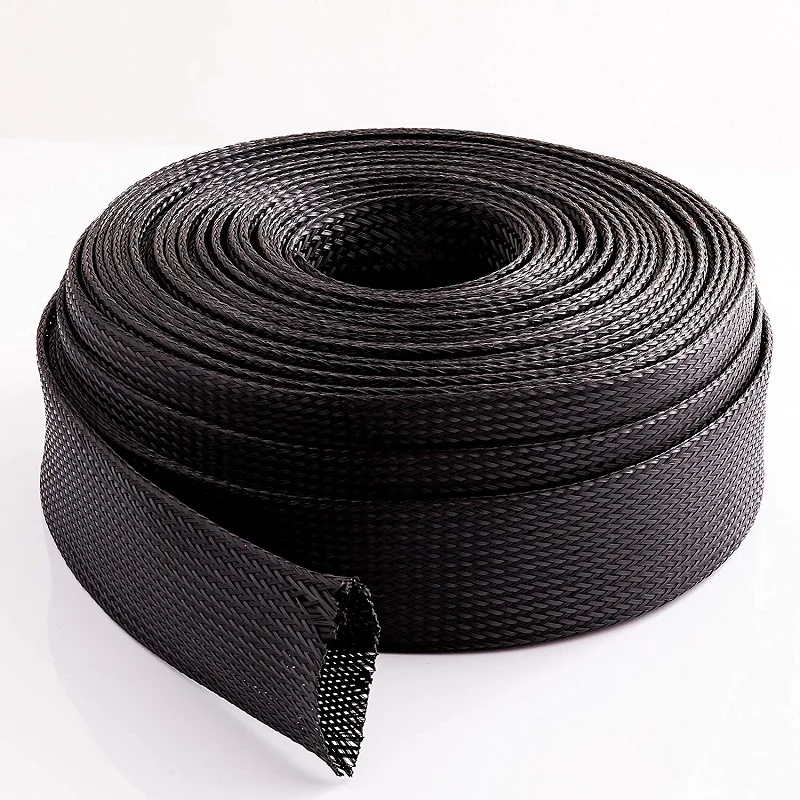

Hampool Factory Supplied Auto Wire Cable Lot Sleeving Sheathing 10M PET Expandable Braided Sleeve
Product Description
| Property | Specification Requirement | Test Method | Typical Value |
| Tensile strength(Room temp.) | Min.10.4Mpa | UL224 | 12Mpa |
| Elongation at break(Room temp.) | Min.200% | UL224 | 400% |
| Tensile strength after aging(158℃ 168hrs) | Min.7.3Mpa | UL224 | 10.8Mpa |
| Elongation after aging(158℃ 168hrs) | Min.100% | UL224 | 300% |
| Voltage withstand(Uh-aged) | Withstand 2.5kv for 1 minute and breakdown | UL224 | pass |
| Voltage withstand(Aged) | Withstand at least half of un-aged breakdown voltage for 1 minute and breakdown | UL224 | pass |
| Corrosion(158℃ 168hrs) | No corrosion | UL224 | No sign of deg. |
| Longitudinal shrinkage | ≤10% | UL224 | ≤5% |
| Flammability | UL1581 | VW-1 | |
| Volume resistivity | Min.1014Ω.m | UL224 | pass |
| Dielectric strength | >19.7kv/mm | ASTM D2671 | >25kv/mm |

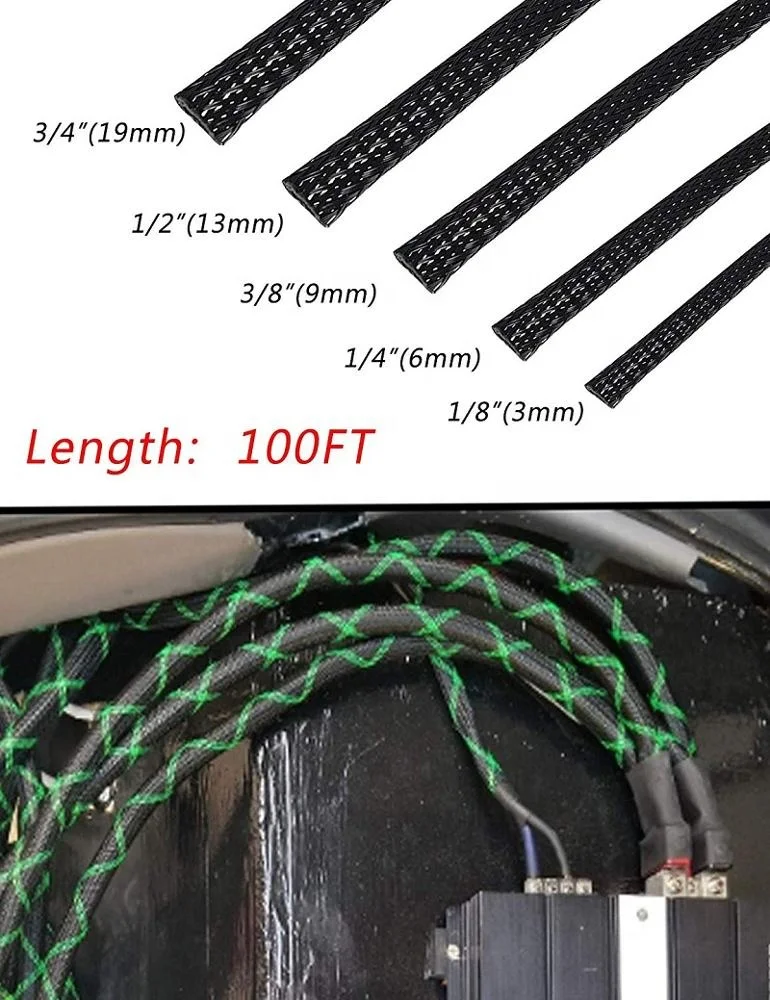

Application
Related Products
Company Information
FAQ
