Hampool Factory Direct Solder Connector Solder Sealed Heat Shrink Butt Wire Connector Kit
-
Supplier: Shanghai Hampool Enterprise Co., Limited -
Region: Shanghai, China -
Contact: Ms Sophia Pu -
Price: $0.05 / 100 - 1999 pieces
$0.04 / 2000 - 4999 pieces
$0.03 / 5000 - 9999 pieces
$0.02 / >=10000 pieces -
Min. Order: 100 pieces
Product details
| Material: | physical education | Sales unit: | single product |
| brand: | Hample | application: | wiring |
| Protection type: | IP67 | tensile strength: | exceeds conductor strength |
| Name: | Solder Seal Wire Connector | place of origin; place of origin: | China Shanghai |
| Packaging Preview: | Pressure resistance: | >600V | |
| Dielectric strength: | ≥25kV/mm | Gross weight per piece: | 0.005 kg |
| color: | white red blue yellow | type: | Welding socket |
| model: | HP-SST-100 | Single package size: | 5X5X5 cm |
| Certificate: | IMDS, ISO, SGS | Packaging Details: | Typically, shrink sleeves are packaged in bags of 100 pieces, and then several bags are placed in each carton. |
| Operating temperature: | -55°C~125°C |

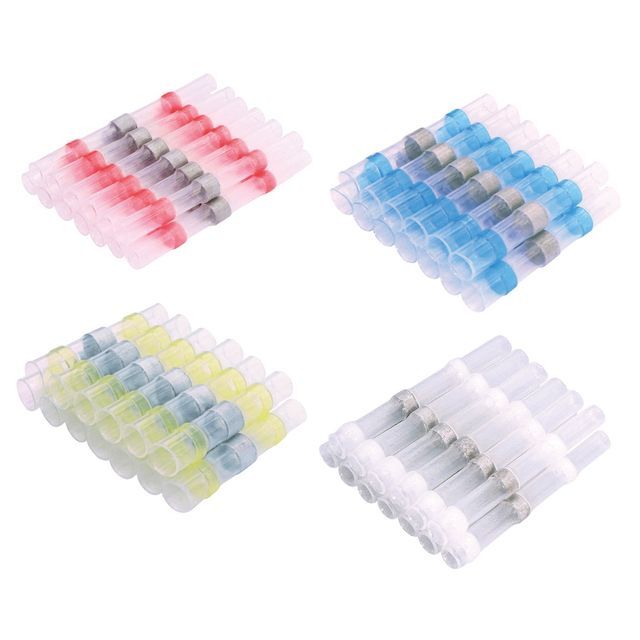

Product display
Click here to send an inquiry!

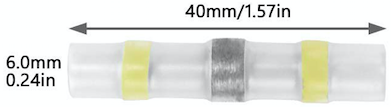

Technical data
| Product Code | photo |
large (mm) |
quantity thing 2 |
Armin (mm) |
Wire size (mm) | Cable size | ||
| B min | B max C max |
C min | ||||||
| HP-SST-105-01 |   |
26 | 1 | 1.7 | 0.4 | 1.7 | 0.76 |
0.25-0.5mm² (26-24AWG) |
| HP-SST-105-02 |  |
40 | 1 | 2.7 | 1.3 | 2.7 | 1.2 |
0.5-1.5mm² (22-18AWG) |
| HP-SST-105-03 |  |
40 | 1 | 4.5 | 1.8 | 4.5 | 2 |
1.5-2.5mm² (16-14AWG) |
| HP-SST-105-04 |  |
40 | 1 | 6 | 2.8 | 6 | 3.4 |
4-6mm² (12-10AWG) |
