ZU-A QU-A WU-A XU-A series oil filter made in china

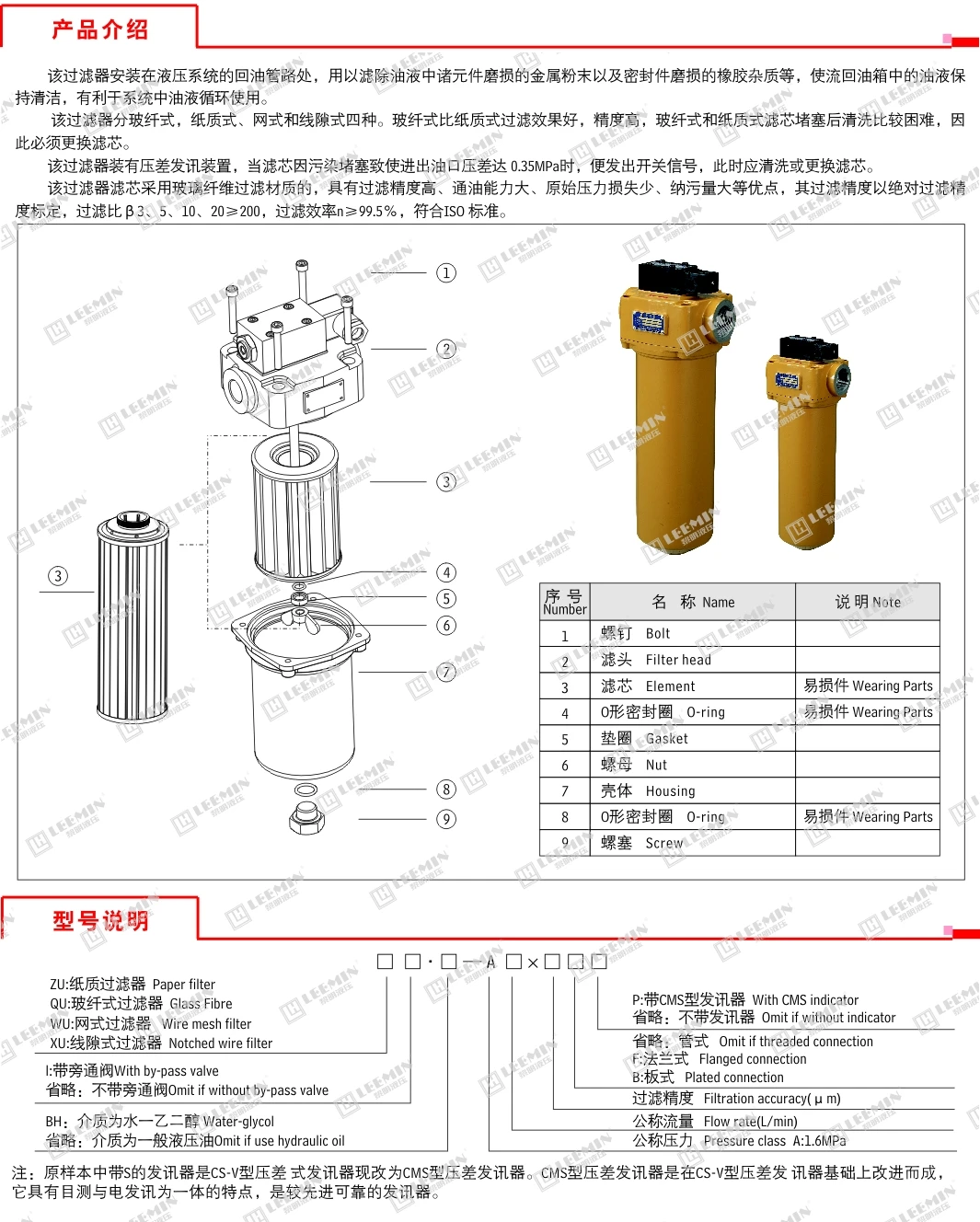

The filter is installed in the oil return pipeline of the hydraulic system to remove the metal powder worn by various components and rubber impurities worn by seals in the oil, so as to keep the oil flowing back to the oil tank clean and facilitate the circulation of oil in the system.

The filter is divided into glass fiber type, paper type, mesh type and line gap type.Glass fiber filter has better filtering effect and higher precision than paper filter. It is difficult to clean glass fiber filter and paper filter after they are blocked, so the filter must be replaced.

The filter is equipped with pressure difference signaling device. When the pressure difference between inlet and outlet reaches 0.35mpa due to pollution and blockage of the filter element, the switch signal will be sent out. At this time, the filter element should be cleaned or replaced.

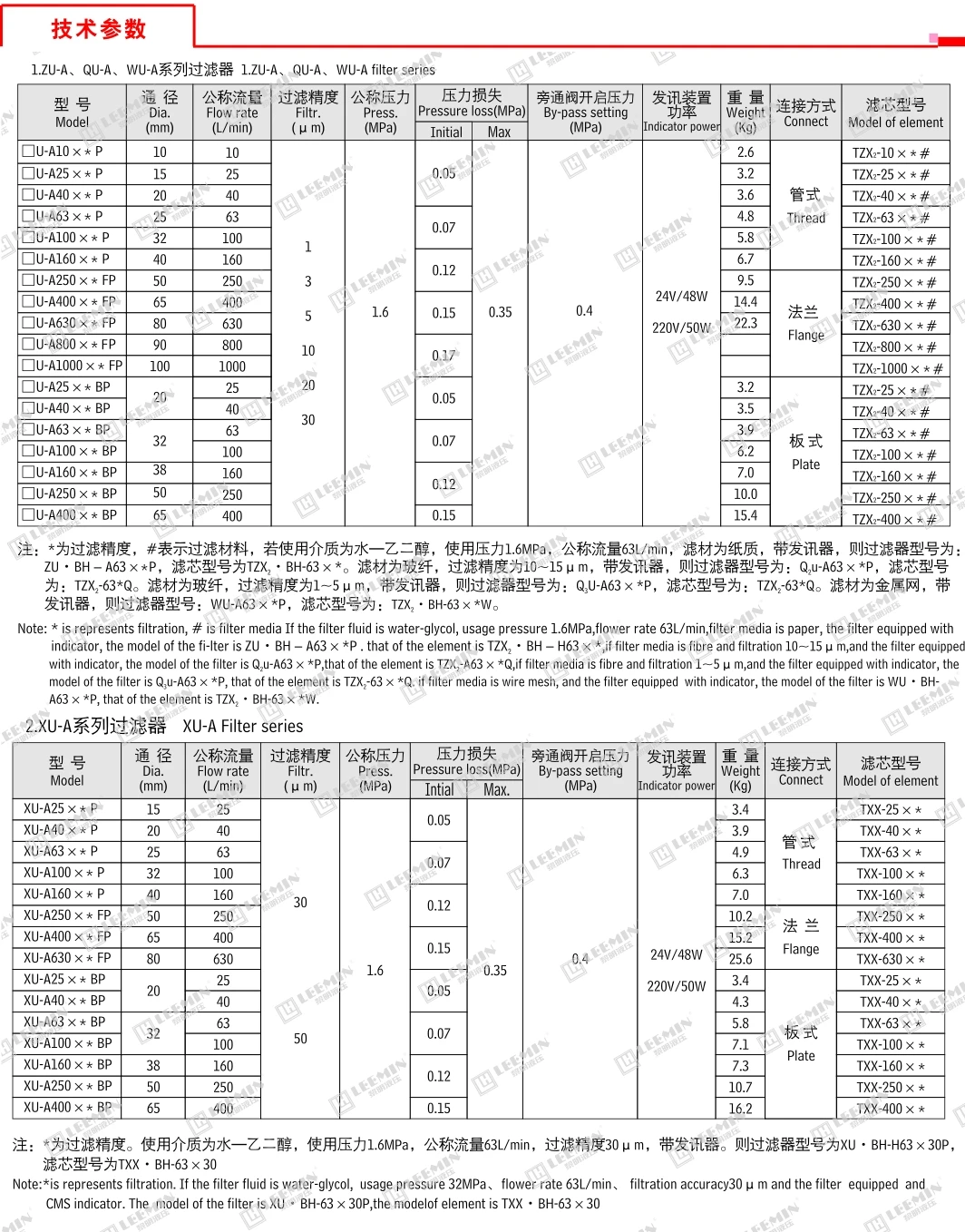

The filter core is made of glass fiber filter material, which has the advantages of high filtration precision, large oil capacity, little original pressure loss, large pollution, etc. Its filtration precision is calibrated by absolute filtration precision, the filtration ratio 3, 5, 10, 20 200, filtration efficiency n 99.5%, in line with the ISO standard
