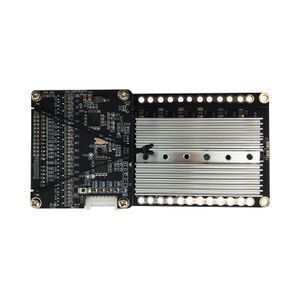

High quality 16S Smart PCM BMS for battery pack
-
Supplier: Shenzhen Ayaa Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms ELIZA CHEN -
Price: $99.00 /piece -
Min. Order: 1 piece
Product details
| Min. Hole Size: | 0.004"; | Copper Thickness: | 0.25 Oz -12 Oz; |
| Delivery Detail: | 0 days after payment; | Base Material: | Seiko IC; |
| Selling Units: | Single item; | Board Thickness: | 6mm; |
| Single package size: | 12.5X6.5X2.5 cm; | Place of Origin: | Guangdong China (Mainland); |
| Brand Name: | AYAA; | Model Number: | PCM-LB16S100A-AY279; |
| Min. Line Spacing: | 4 Mil; | Surface Finishing: | HASL; |
| Min. Line Width: | 0.125MM; | color: | Green; |
| Single gross weight: | 0.285 KG; |
High quality 16S PCM BMS for battery pack
Product Description
| Model: PCM-LB16S100A-AY279(LI 16S100A) ver: A | ||
| Test item(Test at normal temperature 25±2℃ ) | Criterion | |
| Communication Interface | CANBUS RS485/SMBUS | |
| Voltage | Charging voltage | DC:42V CC/CV(4.2v/Cell)16S |
| Capacity | Designing battery capacity(PCM) | *Ah 8% |
| Estimation error | ≤2% | |
| Supply Current | Normal operating mode current:Fuel gauge in NORMAL mode. ILOAD >Sleep Current | ≤30mA |
| Maximal continuous charging current | 100A | |
| Maximal continuous discharging current | 100A | |
| Balance current for single cell | 42±10mA | |
| Over-charge Protection (single cell) | Balance voltage for single cell | 4.2V±±1% |
| Over charge detection voltage | 4.25±1% | |
| Over charge detection delay time | 2±1S | |
| Over charge release voltage | 4.05 ±1% | |
| Over discharge protection (single cell) | Over discharge detection voltage | 2.5±1% |
| Over discharge detection delay time | 2±1S | |
| Over discharge release voltage | 2.8±1% | |
| Current protection (Battery pack) | ChargeOver current detection current | 60A±1% |
| Detection delay time | 3±1S | |
| Discharge Over current detection current | 200A±1% | |
| Detection delay time | 500ms—1000ms | |
| Release condition | Cut load,Auto Recovery 6-10s | |
| Short protection | Detection condition | Exterior short circuit |
| Detection delay time | 200-600us | |
| Release condition | Cut load | |
| Resistance | Main loop electrify resistance | ≤50mΩ |
| Temperature | temperature discharge protection | -20-65±3℃ |
| temperature charge protection | -10-60±3℃ | |
| Operating Temperature Range | -40~+85℃ | |
| Storage Temperature Range | -40~+125℃ | |
| SIZE: L125 *W62 T25 mm | ||
