NK989 hot sales Numerical control frequency conversion winding machine

Supplier: Yueqing Nqqk Electric Factory
Region: Zhejiang, China
Contact: Mr Tony Nan
Price: $1600.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Smft start time:	0 and 1s;	Power(W):	2.2KW;
Name:	conversion winding machine;	Brand Name:	NQQK;
Port:	Shanghai / Ningbo;	After-sales Service Provided:	Free spare parts;
Place of Origin:	Zhejiang China;	Warranty:	1 year;
The spindle speed:	0-350 r/min;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Braking way:	Electronic brake 0.01 S to 0.02 S;	Condition:	New;
Packaging Detail:	carton;	The center height:	900mm;
Supply Ability:	1000 Piece/Pieces per Month conversion winding machine;	Color:	Customer;
Dimension(LWH):	1400x600x1100mm;	Application:	Winding Yarns;
Frequency speed control:	0 to 50 Hz frequency;	Weight:	400kg;
Voltage:	380v/220v;	Certification:	ISO9001:2008 / CE;
After-sales Service Provided:	Engineers available to service machinery overseas;

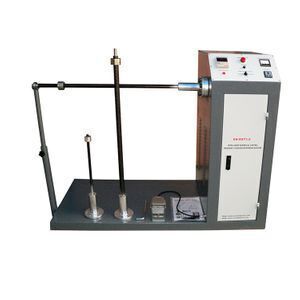

Numerical control frequency conversion winding machine

Product Description

1, Product overview

NKT line friquency control of motor speed control winding machine series, adopt import frequency conversion

control technology, the numberical control performance and stability are reaching advanced level series, collecting beautiful appearance generous, operation humanized design, easy operation, flexible and comfortable, safe, more reliable in performance. With preset control, wireless control, forward reverse conunting, brake in advance, automatic stop function, has the huge QIdongLi, smooth speed regulation, down to balance the advantages of accurate control, is small and medium-sized motor. The motor and all kinds of transformer. Reactor coil ideal winding equipment manufacturing and maintenance industry.

2,Product technical parameters

Model					NKT-3.0
The center height					900mm
The spindle long standard 3 root					Φ301000 / Φ241000 / Φ16*500 mm
The spindle speed					0-350 r/min
Maximum load bearing					400 kg
The motor power					2.2KW
Working voltage(three					AC / 380V / 50Hz power grid voltage Fluctuation amplitude is not greater than 10%
Braking way					Electronic brake 0.01 S to 0.02 S
Smft start time					0 and 1s
Frequency speed control					0 to 50 Hz frequency
Control counter count					"9999.9" Five count, a decimal point
Count way					Clockwise rotation and inversion of automatic power (memory), reduction (laps) can be preset
Start / stop way					Foot swaitch(stepless speed regulation)
Product appearance size					(L)1400(W)600(H)1100mm

Numerical control frequency conversion winding machine Numerical control frequency conversion winding machine Numerical control frequency conversion winding machine Numerical control frequency conversion winding machine
