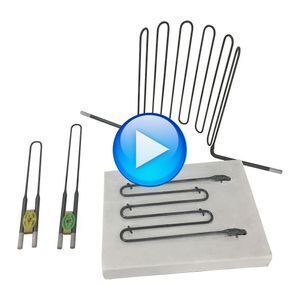

YT TORCH MR1800 U shape mosi2 heater molybdenum silicide heater electric heater for industrial oven

Product details
Color:Gray;Voltage:Custom- made;
After-sales Service Provided:Video technical support, Online support;Main application:Industry Furnace;
Power Source:Electric;Condition:New;
Packaging Detail:furnace heating element is packed by wooden box;Brand Name:YT TORCH;
Shape:U;Weight:Custom- made;
Type:Air Heater;Payment Terms:L/C,T/T;
Place of Origin:China;Model Number:MR1800;
Dimension:Custom made;Warranty:Depend on using condition;
Temperature:1800C;Certification:ISO9000&SGS;
Parameter:Non-standard custom;Applicable Industries:Energy chemical industry;
Material:MoSi2;Density:5.9±0.1;
Diameter:3/6, 4/9,6/12, 9/18,12/24mm or Custom made;Dimension(L*W*H):Custom- made;
Product Description







Product Name

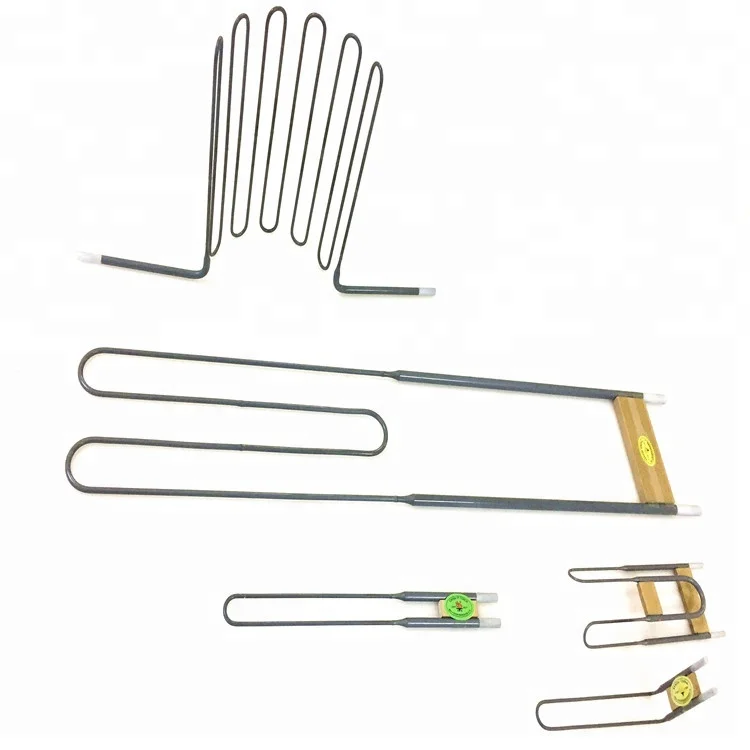

MR 1800 MoSi2 electric heater

Condition

 New

Color

Gray

Place of Origin

Yantai,China(Mainland)

Working Temperature

1000℃-1800℃

Dimension(L*W*H)

Customized

Power Source

Electric

Power(W)

All Depends

Model Number

MR1800 Type

Density

5.9±0.1g/CM3

Voltage

All Depends

Type

Air Heater

Shape:

U or customized

Brand Name

YT Torch

Weight

All Depends







Properties

Physical Properties



+

Bulk   Density

Bending   Strength

Hardness

Water   Absorption

Heated Elongation

Fracture Toughness

Compression   Strength

≥5.8g/cm3

350MPa

9.9GPa

≤0.2%

≤4%

4.5MPa.m1/2

650MPa





Chemical Properties



MoSi2 Heating Element has the ability to withstand oxidation at high temperatures. This is due to the formation of a thin and adhesive protective layer of quartz glass (SiO2) on the surface. When the element temperature over 1700℃, SiO2 protective layer which melting point is 1710℃ was fused, and because of the surface tension, it fused into drops, which is useless. However, when element continue working in oxidizing atmospheres, the SiO2 protective layer is spontaneously rebuilt.

Notice: It is no good to use Molybdenum Disilicide Heating Element for Long-term within a range of 400-700℃, otherwise the element will be powdered by the strong low temperature oxidation..



Indicators in Different Atmospheres



Atmosphere

TC1700

TC1800

MR1800

TC1850

Air

1700

1800

1800

1850

Nitrogen

1600

1700

1700

1750

Argon,   Helium

1600

1700

1700

1750

Dry   hydrogen, dewpoint -80℃

1150

1150

1150

1200

Moist hydrogen, dewpoint 20℃

1450

1450

1450

1500

Exogas   (Ex. 10% CO2, 5% CO, 15%H2)

1600

1700

1700

1750

Exogas   (Ex. 40% H2, 20% CO)

1400

1450

1450

1500

Cracked   and partially burnt ammonia

1400

1450

1450

1500

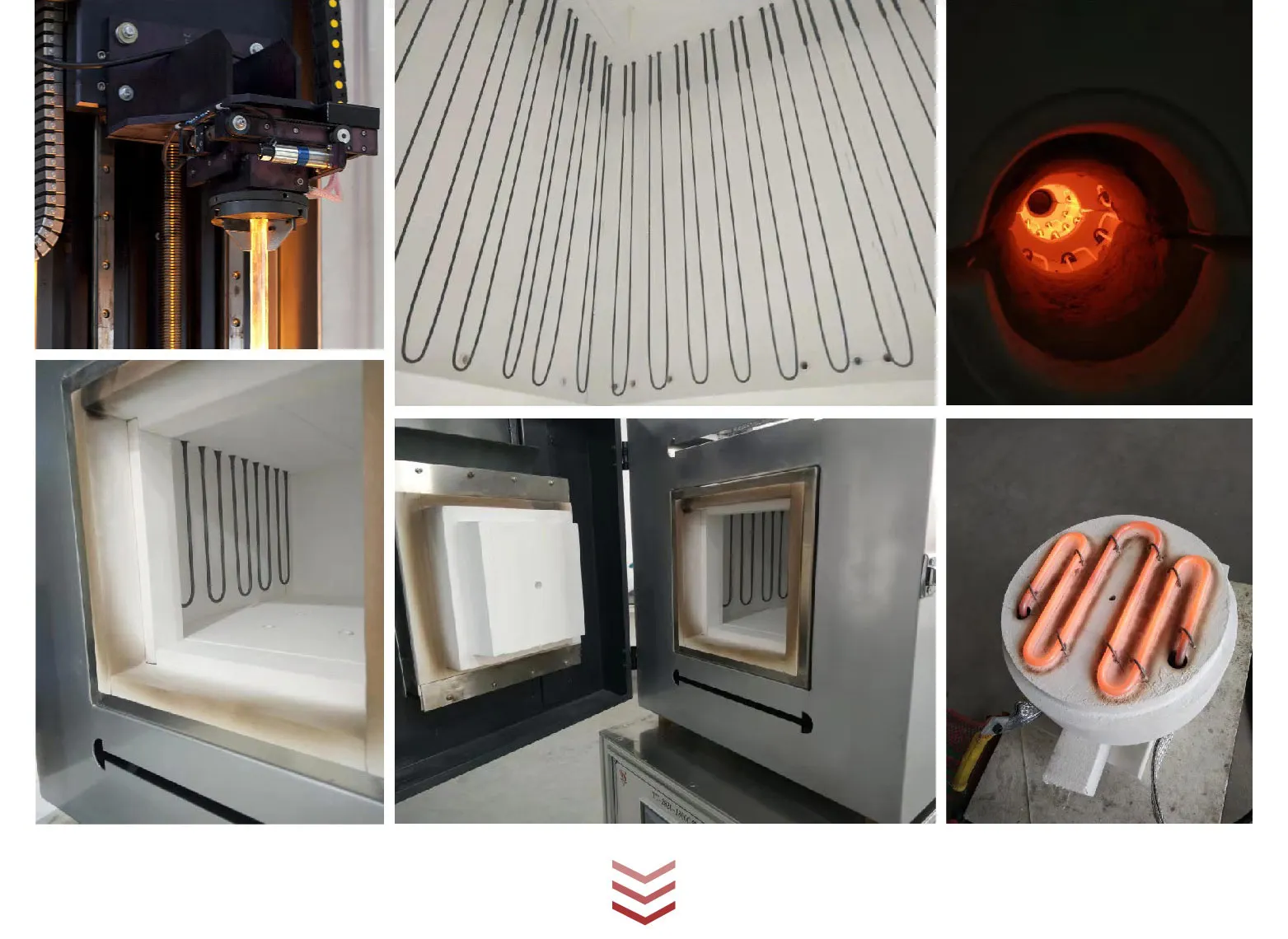

Application



How to Assembly

Contact Us To Learn More

Produce Process



About Us

{ Learn More+ }

1.Product has the capabilities to resistance to oxidation and automatically repair, suitable for continued using in any kinds of oxidizing atmospheres.

2.Product is shaped in hot-working process, which keeps the base material in good tenacity and plasticity at high temperature. The geometrical figure, standard and dimension is canonical, may produce any special shape and any dimension to meet the customer requirement.

3.Because of the special technology, welding spot is firm and shock resistance, which dramatically reduced the damaged probability of welding spot by electric current, as well as transit and installation.

4.High density of YT Torch product increases its electrical conductivity. The characters of faster warming and power consumption low, which reduce production cost.

5.Good appearance quality and tenacity, high mechanical strength.

6.Protective layer of quartz glass is compact and good adhesion with the substrate

7.Excellent high temperature strength which is not easy to deform in use
