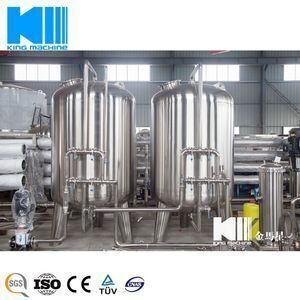

Food Stage Stainless Steel Juice Storage Tank for juice production line

Supplier: Zhangjiagang King Machine Co., Ltd.
Region: Jiangsu, China
Contact: Ms Joyce King Machine
Price: $200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Material:	SUS304;	After-sales Service Provided:	Field installation, commissioning and training;
Supply Ability:	20 Set/Sets per Month;	Place of Origin:	Jiangsu China;
Processing:	Storage Tank;	Packaging Detail:	Standard export package;
Brand Name:	KM;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Certification:	CE;SGS,ISO;	Weight:	250KG;
Voltage:	By customer;	Certification:	CE,ISO,SGS;
Port:	Shanghai port;	Dimension(LWH):	By customer;
Remarks:	Food Sanitation;	Automatic:	Yes;
Power(W):	N/A;	Processing Types:	Water;
Condition:	New;	Warranty:	2 years;

Food Stage Stainless Steel Juice Storage Tank for juice production line

Product Description

This tank is made by food stage Stainless steel 304.Can make tank according customer request.

Stainless steel liquid Storage tank
1)wide use range
2)different volume for your selection
3)meet cGMP.
4)Can customize

Liquid storage tank

This series liquid storage tank is widely used in dairy products, beverage, bio-engineering, pharmacy, meticulous chemical industry, etc. The kettle body is set up with interlayer and heat preservation layer which can heat up, refrigeration and keep warm.

Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and water storage tank etc.
2. Ideal in field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Structure characteristics of the storage tank:
1. Made of single-layer stainless steel structure.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

Configuration of storage tank:
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements).
7. Ladder (According to customer requirements).
8. Liquid level meter and level controller (According to customer requirements).
9. Eddy-proof board.

It can be made according to special requirements of customers. Total height (H) is in accordance with outlet height of 800 mm. If outlet height is changed, then total height(H) shall also be adjusted

Effective volume	(D*H) Dimension of tank	(H) Total height	Diameter of inlet&outlet
(L)	(mm)	(mm)	(mm)
500	840*1000	2250	38
600	920*1000	2300	38
700	990*1000	2300	38
800	950*1220	2500	38
900	1010*1220	2500	38
1000	1060*1500	2850	51
1500	1160*1500	2850	51
2000	1340*1500	2900	51
3000	1410*2000	3400	51
4000	1620*2000	3450	51
5000	1810*2000	3500	51
6000	1980*2000	3550	51
7000	1930*2440	4000	51
8000	2060*2440	4000	51
9000	2180*2440	4050	51
10000	2300*2440	4050	51
12000	2270*3000	4600	51
15000	2530*3000	4700	51
20000	2640*3660	5400	51
