5 axis waterjet cutting machine 3D 5 axis water jet cutting machine for metal stone cutting in a competitive price

Supplier: Nanjing Watex Tech Co., Ltd.
Region: Jiangsu, China
Contact: Ms watex Tech
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Hypiont;	After-sales Service Provided:	Engineers available to service machinery overseas;
Weight:	4800KG;	Rated Power:	15kw;
Dimension(LWH):	410021002200mm;	Port:	Nanjing;
Packaging Detail:	1. Whole film packaging machine; 2. Anti-collision package edge; 3. Fumigation-free plywood wooden box with iron binding belt. 4. Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time. 5. All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.Avoiding all damages that could happen in the delivery process. 6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.;	Product name:	5 axis water jet,3D water jet,3D water jet cnc;
Control system:	CNC;	Servo driver and motor:	Yaskawa;
Warranty:	3 Years;	Certification:	CE ISO9001 TUV;
Directional l valve:	Rexroth;	PLC:	SIEMENS;
Max pressure:	55000PSI;	Voltage:	Customized;
Intensifer:	USA made;	Hydraulic pump:	Rexroth;
Supply Ability:	9000 Set/Sets per Year;	Warranty:	3 Years;
Delivery Detail:	35days;	Model Number:	Edge4020B;
Main motor:	SIEMENS;	Place of Origin:	Jiangsu China (Mainland);
Payment Terms:	L/C,T/T,Western Union;	Condition:	New;

Product Overviews

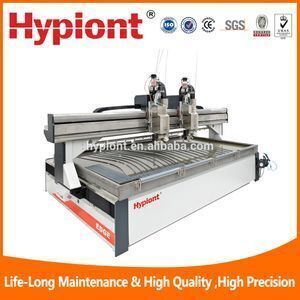

HYPIONT Edge4020 5 axis water jet cutter machine

Edge40 Series waterjet cutting system are Hypiont’s biggest bridge modles always used for cutting big working pieces famous for it’s high stability and precision and own perfect combination of proven performance, robust design, and exceptional price outperforms the standard waterjet offerings in the industry and wins in value with an extended cutting area and extra strength beams and ball screws . A versatile, top of the line cutting system, from 2D to basic five axis cutting .Edge 40 is an versatile and efficient machine tool that can be found in almost any professional job shop or industry. With a huge range of optional settings it can be designed to meet a wide range of cutting requirements, both 2D and 3D cutting. Based on Hypiont top class mechanical design it is a machine model for experts and tough demands . Our patented Dynamic Waterjet works unlike any other system. Using our EdgeStream™ technology, Dynamic Waterjet not only counters stream lag and taper (characteristics inherent to waterjet), but also automatically tilts and monitors the speed of your cutting head on the fly. This ensures the part you pick up off the table is cut as quickly as possible, and to high precision.

Workmanship

Excellent cutting table accessibility on a machine built for the Rigors of Waterjet cutting with robust mechanical design, integrated machine systems, intuitive user control, multiple table sizes, and several configurations available, the Edge 40 Series sets you up for success. With Edge 40 you won't sacrifice performance, structural integrity, or the overall quality of your system. Hypiont also use laser calibration to check the high precision according to the international standard and high market requirement .

Hypiont as chinese one of the best waterjet machine suppliers owns more than 46 patents in the industry of high pressure cutting technology. We always use our competitive price and high quality machine and good afterservice to meet clients demand rather than the advertising gimmick to attrack client ,hope we we own the opportunity to cooperate with you .

The price of the whole of the machine depends on the final configuration ,the price on this page just for net not the real price .If you need the more detail of our machine please send inquiry to us .

SPECIALFICATIONS OF HYPIONT EDGE 4020 5 axis WATERJET CUTTING MACHINE
NO.	Name	Parameter	Unit
1	Width Machine	4100	mm
2	Length Machine	2100	mm
3	Height Machine	2200	mm
4	Hieght of table	2180	mm
5	A axis	720°	degree
6	C axis	720°	degree
7	X axis	4000	mm
8	Y axis	2000	mm
9	Weight	4800(subject to the final configuration)	kg
10	Max(X,Y)positional speed	15	meter/min
More information
11	Accuracy	(±0.05“inch per 3'feet at 68° ±3°F) (±0.127mm per 1M at 20 ° ±3 °C)
12	Repeatability	(±0.0025“inch at 68°± 3° F )(0.0635mm at 20° ± 3 °C)
13	Cutting head model	5 axis dynamic linkage
