firewall PC with 4* 1000M LAN rj45 and D2550/N2600/N2800 processor X86 Openwrt Pfsense lede ubuntu centos

Product details
COLOR:White;Display port:Suppport 2*HD;
VPN Support:Yes;Single package size:25X22X10 cm;
USB Port:2 * USB;Single gross weight:2 KG;
OS:Linux/Win XP/Win7/Win8/Win10/PFSense;Storage:1*MSATA;
Type:Wireless;RAM:DDR3 (Max. 4GB);
CPU:N2600;Supported:ROS Mikrotik PFSense Panabit Wayos;
LAN:4* RJ45 Gigabit LAN Port;Selling Units:Single item;
Product name:Firewall Appliance;

Chassis

Color

White  or black

Measure

195mm*190mm*44mm(L*W*H)

Net Weight

1.8KGs

Construction

Fanless or with Fan

Material

High quality Galvanized Steel Sheet

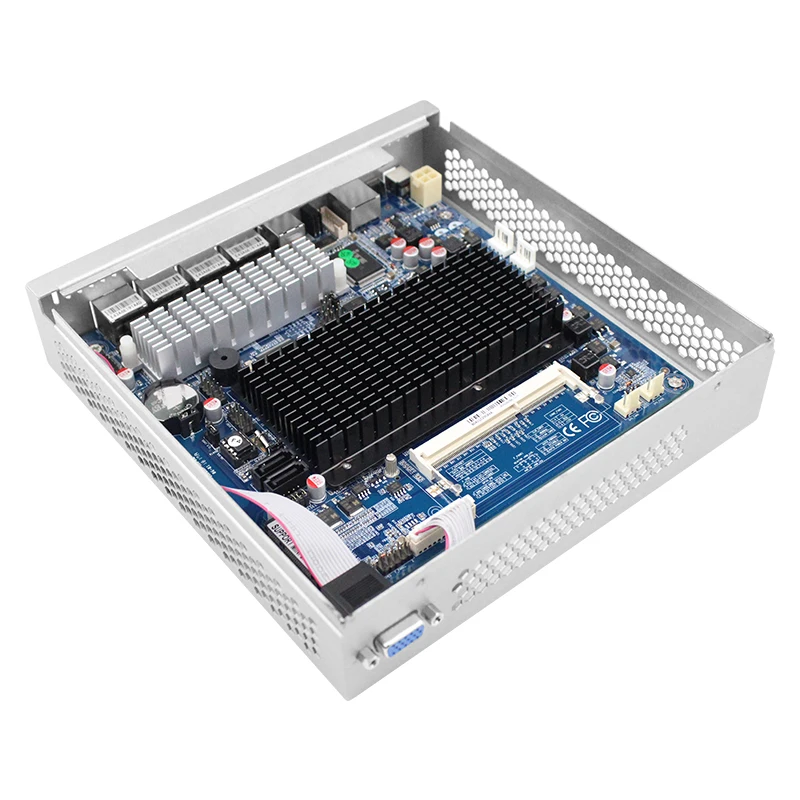

Motherboard

BIOS

AMI EMI 16MB SMT/DIP-SPI Flash ROM

Processor

Onboard Intel® ATOM D2550/N2800 processor

Graphic

Onboard Intel® GMA3650 Graphics (depends on processor)

RAM

1*DDR3 RAM slot,Maximum support 4GB

Expansion

1* mini-PCIE slot

Storage

HDD&SSD

1*mSATA,

Front I/O

Network

4*Intel 82583V or 4*inter i211 1000/100/10Mbps LAN

USB

2*USB2.0

COM

1* COM(RS-232 DB9) Serial port

Indicator

1*HDD LED indicator,1*Power LED indicator

Switch

1*Power ON/OFF switch,1*RESET switch

Back I/O

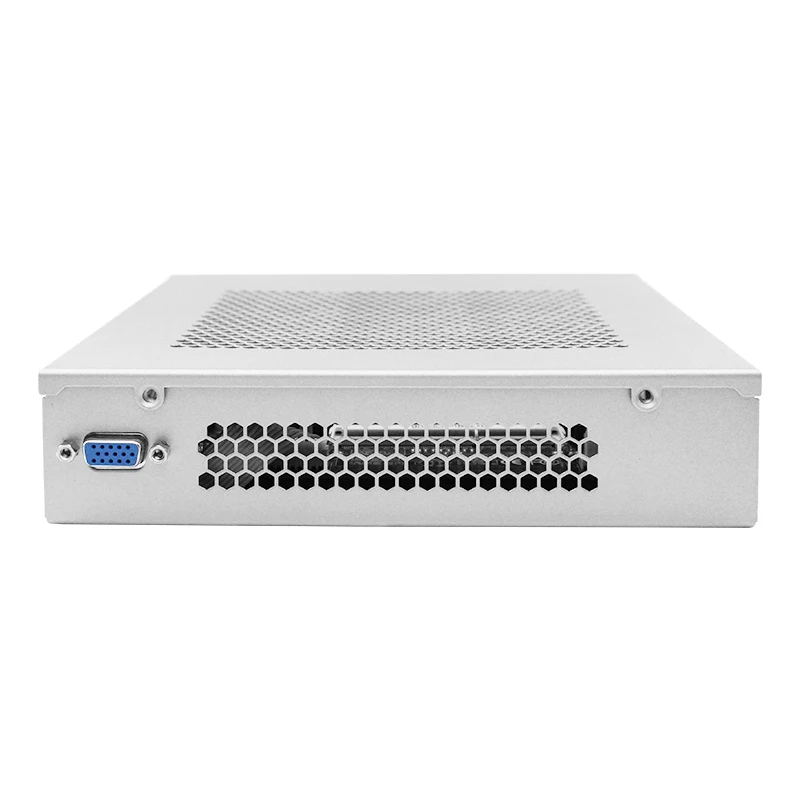

Video

1*VGA

Power Switch

1*Power ON/OFF

Wireless



Power

Power supply

DC12V4A

Reliability

Installation

1U Standard rack Mounting mode

Work Temperature

-10℃~60℃

Storage temperature

-20℃~70℃

Humidity

5%-95% Relative humidity, no condensation

Work Vibration

0.5g RMS/5-500HZ/Random/Operating

Certifications

CE/FCC/ROHS/3C
